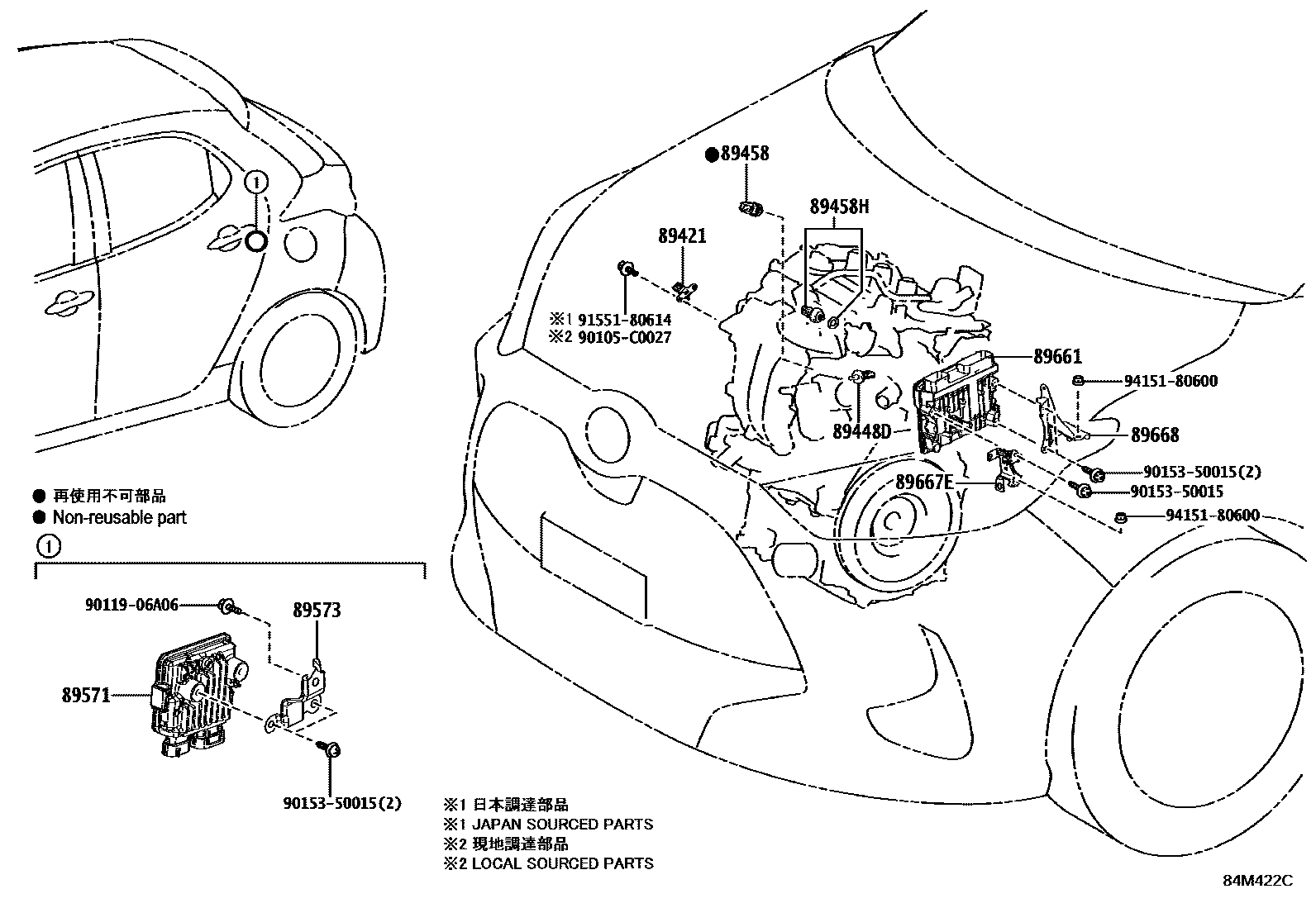

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMXPA10..6F202005-202501

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMXPA10..6F202005-202501

89458SENSOR, FUEL PRESSURE

main89458-33030iMXPA10..6F202005-202501

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMXPA10,MXPH10202005-202206

main89458-33042iMXPA10,MXPH10202207-202401

89571COMPUTER, FUEL PUMP CONTROL

main89570-52070iMXPH10202401

main89571-10010iMXPA10..6F202105-202501

main89571-K0010iMXPA10,MXPH10202005-202104

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-K0010iMXPA10..6F202005-202501

89661COMPUTER, ENGINE CONTROL

main89661-5CE50iMXPA10..CVT202105-202106

DENSO,*614

sub89661-5CE51

main89661-5CE51iMXPA10..CVT202107-202112

DENSO,*614

sub89661-5CE52

main89661-5CE52iMXPA10..CVT202201-202401

DENSO,*614

main89661-5CJ60iMXPA10202401-202501

DENSO,*614

main89661-5CK00iMXPH10202401

DENSO,*614

main89661-K0490iMXPH10202005-202011

DENSO,*614

sub89661-K0491

main89661-K0491iMXPH10202012-202106

DENSO,*614

sub89661-K0492

main89661-K0492iMXPH10202107-202401

DENSO,*614

main89661-K0550iMXPA10..CVT202005-202105

DENSO,*614

sub89661-K0551

main89661-K0560iMXPA10..6F202005-202106

DENSO,*614

sub89661-K0561

main89661-K0561iMXPA10..6F202107-202112

DENSO,*614

sub89661-K0562

main89661-K0562iMXPA10..6F202201-202207

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-K0010iMXPA10..6F202005-202501

main89667-K0020iMXPH10202005-202401

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52430iMXPA10..CVT202005-202501

main89668-K0020iMXPH10202005-202401

90105C0027

main90105-C0027

9011906A06

main90119-06A06

9015350015

main90153-50015

9155180614

main91551-80614

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
