0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1STEERING 0013 1DOOR & ROOF 0014 1DOOR & ROOF 0015 1FLOOR & BACK DOOR 1/2 0016 1FLOOR & BACK DOOR 2/2

82715WBRACKET, WIRING HARNESS CLAMP

main82715-K0030iMXPA10,MXPH10202005-202501

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-K0040iMXPA10..6F202005-202501

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-72040iMXPA10..6F202005-202501

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iMXPA10..6F202005-202207

84540SWITCH ASSY, NEUTRAL START

main84540-K0010iMXPA10..CVT202005-202401

84545SWITCH, NEUTRAL POSITION

main84545-52010iMXPA10..6F202005-202207

89419BSENSOR, SHIFT STROKE

main89419-K2010iMXPA10..CVT202005-202501

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXPA10..6F202005-202501

89467BSENSOR, AIR FUEL RATIO

main89467-52390iMXPA10202401-202501

main89467-K0020iMXPA10,MXPH10..CVT202005-202401

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52370iMXPA10202401-202501

main89467-K0030iMXPA10..6F202005-202401

89491SENSOR, ENGINE OIL LEVEL

main89491-50081iMXPA10,MXPH10202005-202204

sub89491-50082

main89491-50082iMXPA10..6F202205-202501

89535BCOMPUTER, TRANSMISSION CONTROL

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-K0010iMXPA10..CVT202005-202401

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-K0020iMXPA10..CVT202005-202401

89615SENSOR, KNOCK CONTROL

main89615-20090iMXPA10202005-202501

9011906A23

main90119-06A23

9015350015

main90153-50015

9043018008

main90430-18008

9043018032

main90430-18032

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180612

main91671-80612

9167180616

main91671-80616

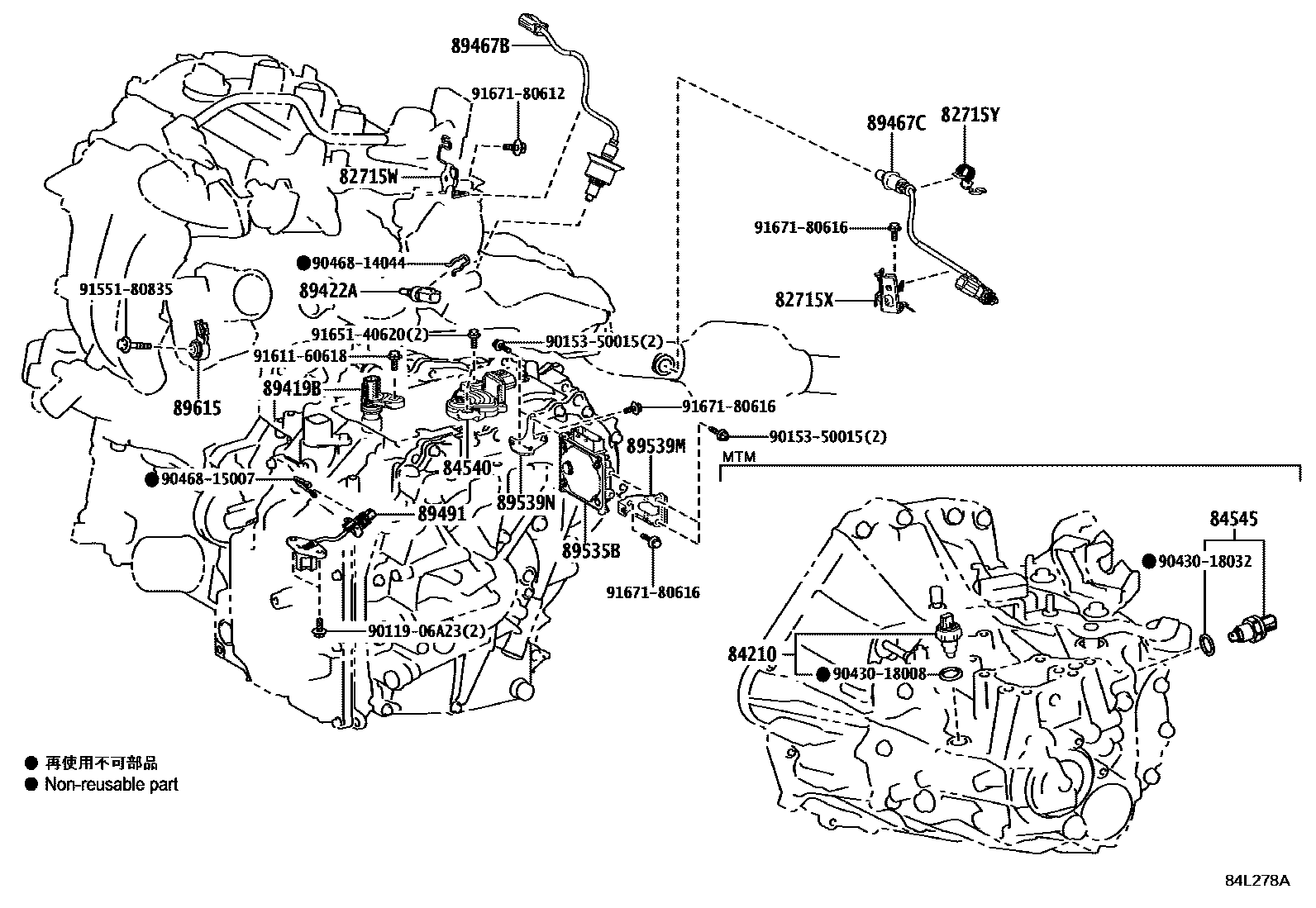

26 parts on this diagram · 16 diagrams in section
