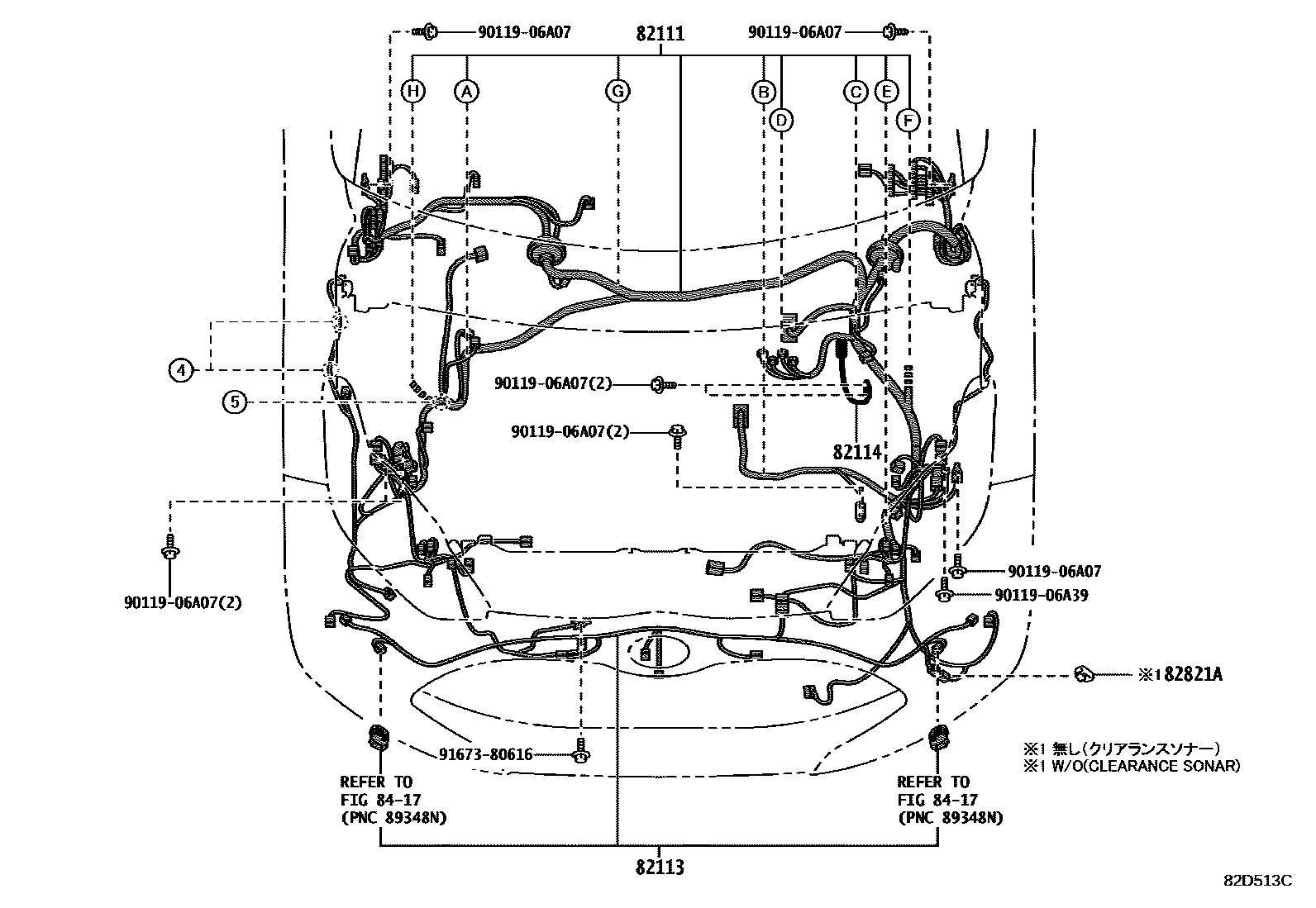

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
main82111-K0G00supersedes 82111-K0640iMXPH10202005-202208 MID PACKAGE
main82111-K0G01supersedes 82111-K0641iMXPH10202208-202401 MID PACKAGE
main82111-K0G10supersedes 82111-K0G20iMXPA10..CVT202012-202105 MID PACKAGE
main82111-K0G11supersedes 82111-K0G21iMXPA10..CVT202105-202208 MID PACKAGE
main82111-K0G12supersedes 82111-K0G22iMXPA10202208-202401 MID PACKAGE
main82115-5C640supersedes 82115-5C630iMXPA10202401-202501 MID PACKAGE
main82115-5C660supersedes 82115-5C650iMXPH10202401-202502 MID PACKAGE
82113WIRE, ENGINE ROOM, NO.3
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*BGM)
82114WIRE, ENGINE ROOM, NO.4
8 parts on this diagram · 20 diagrams in section
