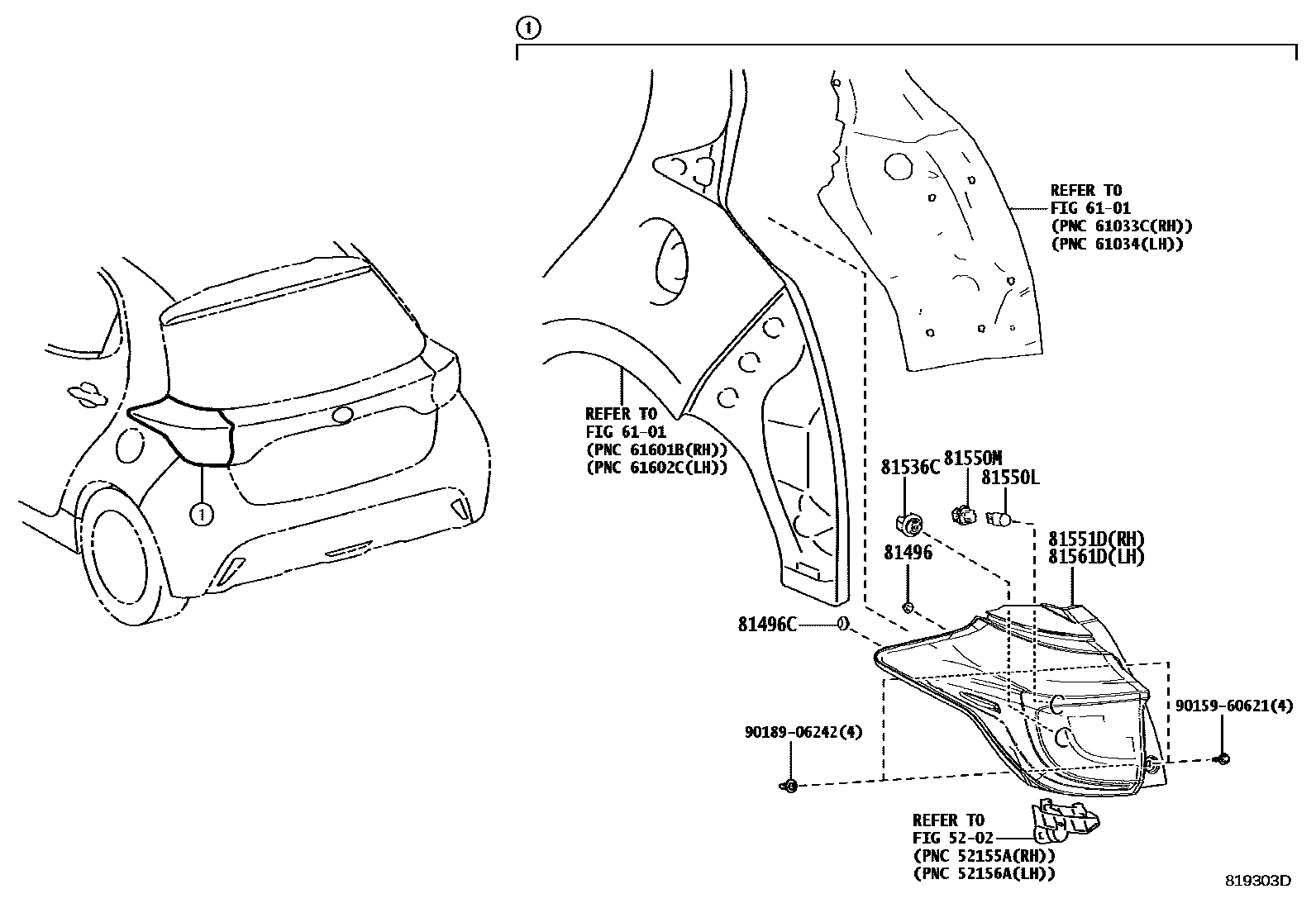

REAR COMBINATION LAMP

0001 1BULB TYPE REAR TURN SIGNAL LA0002 1LED TYPE REAR TURN SIGNAL LAM

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iMXPH10202401

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iMXPA10..6F202005-202207

81536CLED, TAIL & STOP LAMP

main81536-15120×2iMXPA10..6F202005-202207

main81965-70010×2iMXPA10202407-202501

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iMXPH10202401

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60028×2iMXPA10..6F202005-202207

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-K0020supersedes 81551-K0010iMXPH10202401

MID PACKAGE&HEADLAMP-LED TYPE & WITH(*AHB)

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-K0020supersedes 81561-K0010iMXPA10202401-202501

MID PACKAGE&HEADLAMP-LED TYPE & WITH(*AHB)

9015960621

main90159-60621

9018906242

main90189-06242

11 parts on this diagram · 2 diagrams in section
