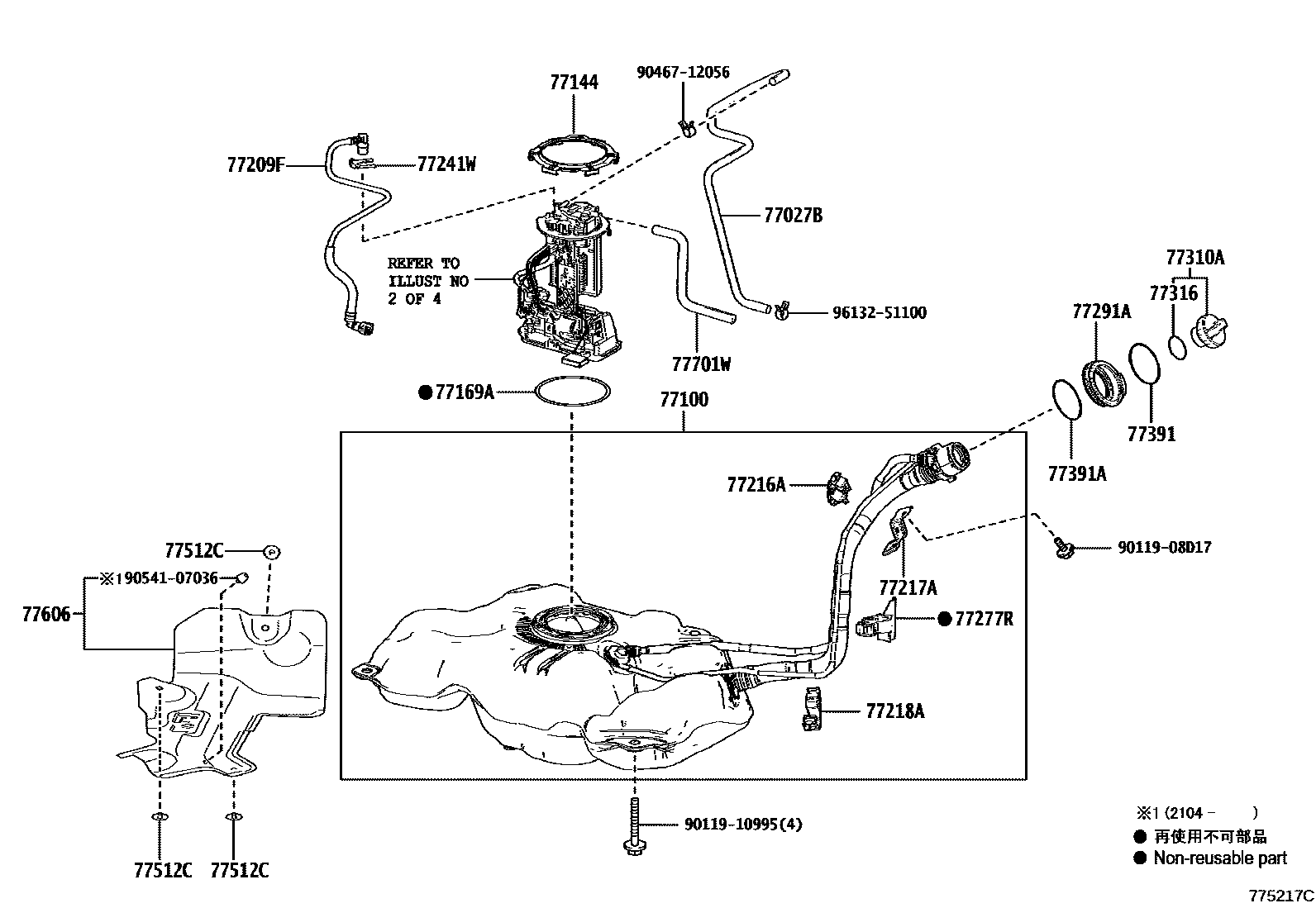

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL PUMP 0006 1FUEL PUMP 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-52210iMXPA10..6F202005-202501

main77027-52230iMXPH10202005-202401

77100TANK ASSY, FUEL

main77001-52630iMXPA10202005-202501

main77001-52660iMXPH10202005-202401

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXPA10..6F202005-202501

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iMXPA10..6F202005-202501

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52280iMXPA10..CVT202005-202501

main77209-52300iMXPH10202005-202401

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-52300iMXPA10..6F202005-202501

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-52180iMXPA10..6F202005-202501

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-52050iMXPA10..6F202005-202501

77241WCLIP, TUBE JOINT

main77241-33011iMXPA10,MXPH10202005-202103

main77241-60550iMXPA10..6F202104-202501

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52120iMXPA10..6F202005-202501

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-K0010iMXPA10..6F202005-202501

77310ACAP ASSY, FUEL TANK

main77300-12020iMXPA10..6F202005-202501

77316GASKET, FUEL TANK CAP

main77316-52040iMXPA10202005-202501

77391RING, FUEL INLET BOX

main77391-12020iMXPA10..6F202005-202501

77391ARING, FUEL INLET BOX

main77391-12020iMXPH10202005-202501

77512CBRACKET, FUEL TANK

main77512-35140iMXPH10202005-202501

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-52140iMXPA10202005-202206

main77606-52141iMXPA10202207-202501

main77606-52160iMXPH10202005-202207

sub77606-52161

main77606-52161iMXPH10202208-202401

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-52060iMXPA10..6F202005-202501

main77701-52080iMXPH10202005-202401

9011908D17

main90119-08D17

9011910995

main90119-10995

9046712056

main90467-12056

9054107036

main90541-07036

9613251100

main96132-51100

23 parts on this diagram · 9 diagrams in section
