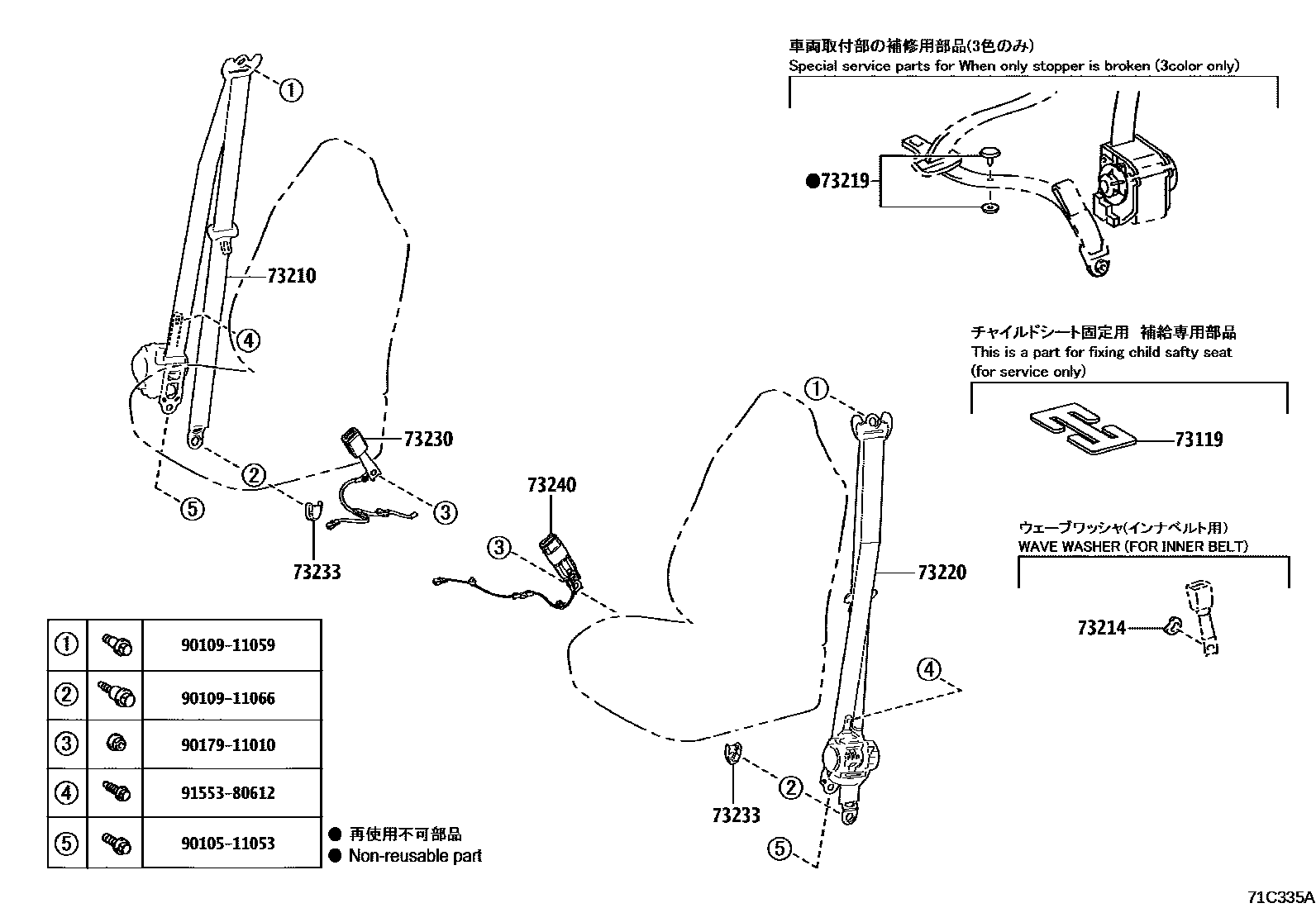

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMXPA10,MXPH10..CVT202005-202401

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-K0020-C0iMXPA10..6F202005-202207

BLACK,TRIM1#,2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iMXPA10202401-202501

73219STOPPER, TONGUE PLATE

main73219-33010iMXPH10202401

BLACK

main73219-33020iMXPA10202401-202501

GRAY

main73219-33030iMXPA10202401-202501

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-K0020-C0iMXPA10..6F202005-202207

BLACK,TRIM1#,2#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-K0050-C0iMXPA10202401-202501

BLACK,TRIM1#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iMXPA10,MXPH10..CVT202005-202401

BLACK,TRIM1#,2#,4#

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-K0080-C0iMXPA10,MXPH10202005-202401

BLACK,TRIM1#,2#,4#

9010511053

main90105-11053

9010911059

main90109-11059

9010911066

main90109-11066

9017911010

main90179-11010

9155380612

main91553-80612

13 parts on this diagram · 2 diagrams in section
