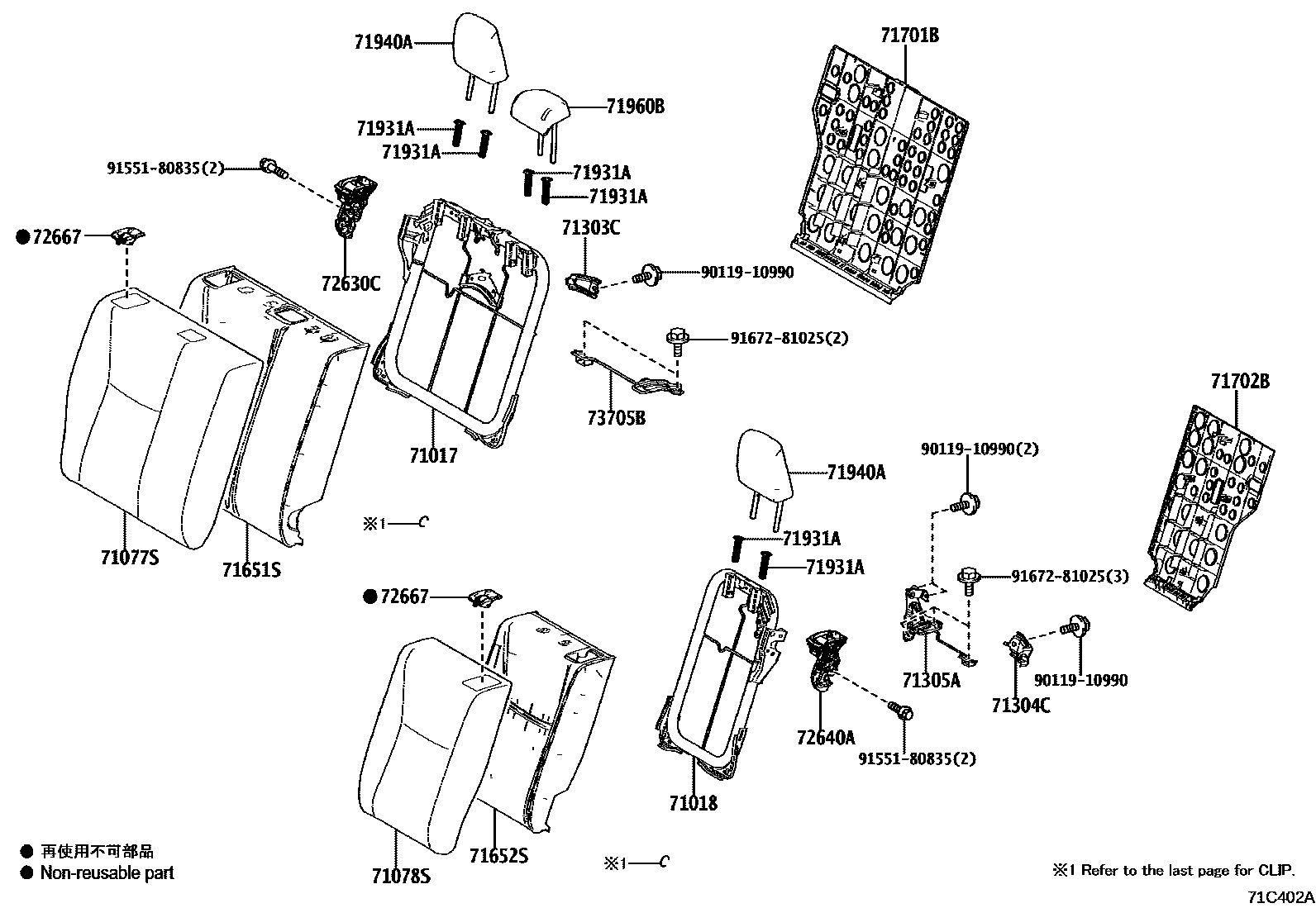

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
TAUPE,TRIM4#
BLACK,TRIM2#
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/GRAY,TRIM1#
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK/BLACK/TAUPE/BLACK,TRIM4#
BLACK/BLACK/BLACK/BLACK,TRIM2#
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1#
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY/LT.GRAY/BLACK/GRAY,TRIM1#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM2#,4#
W/O(LOCK),BLACK,TRIM2#,4#
71940AHEADREST ASSY, REAR SEAT
BLACK,TRIM2#
BLACK,TRIM2#,4#
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK,TRIM2#
BLACK,TRIM2#,4#
S PACKAGE&FRONT SEAT-SPORT(SEPARATE HR) AUST,GRAY,TRIM1#
72630CLOCK ASSY, REAR SEATBACK, RH
GRAY,TRIM1#
BLACK,TRIM2#,4#
72640ALOCK ASSY, REAR SEATBACK, LH
GRAY,TRIM11
BLACK,TRIM2#,4#
72667BEZEL, REAR SEATBACK LOCK, UPPER
GRAY,TRIM1#
BLACK,TRIM2#,4#
73705BBRACKET SUB-ASSY, CROSS ANCHOR
9011910990
main90119-10990
9155180835
main91551-80835
9167281025
main91672-81025
21 parts on this diagram · 4 diagrams in section
