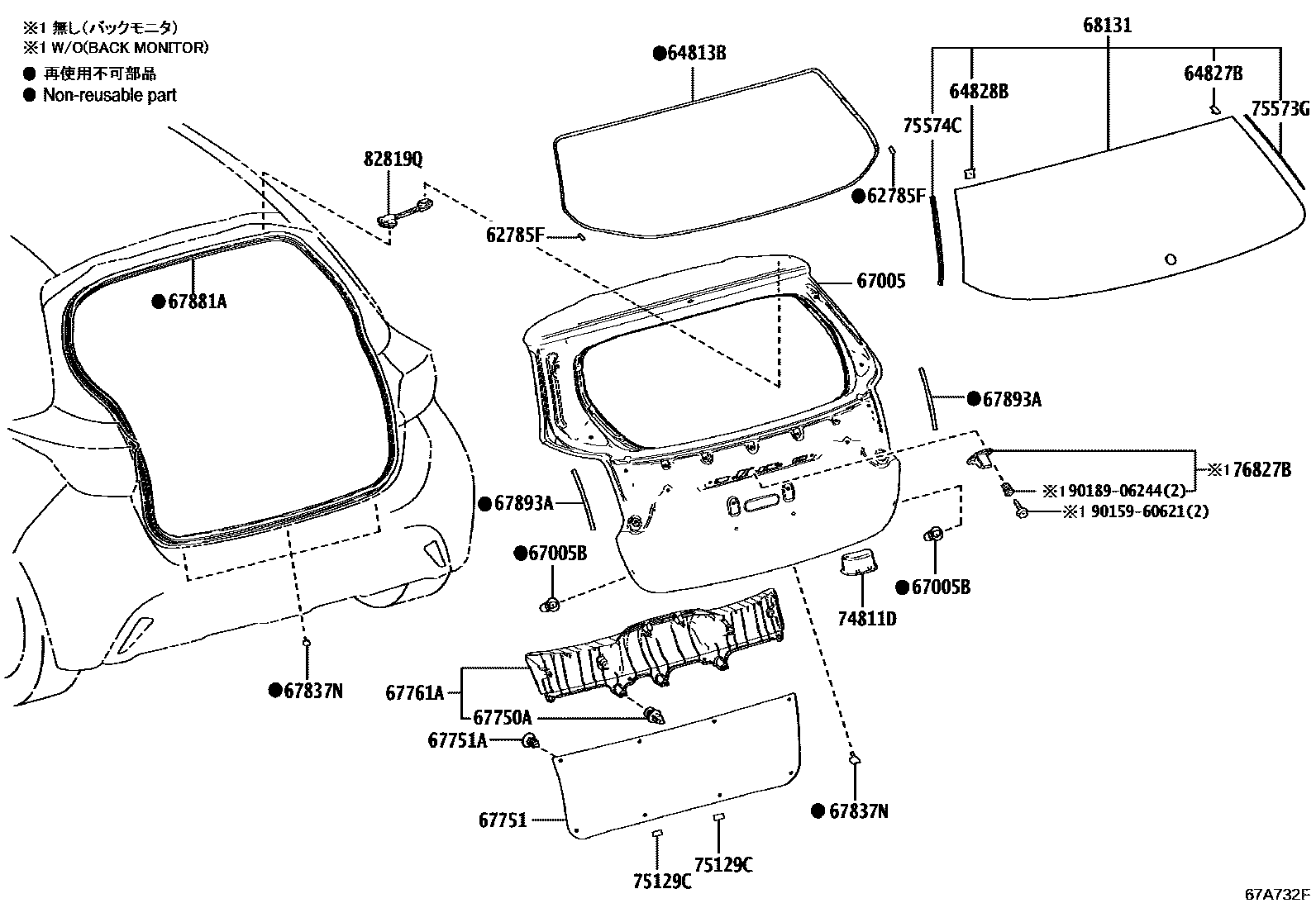

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64813BDAM, BACK WINDOW GLASS ADHESIVE
64827BCLIP, BACK WINDOW GLASS, RH
64828BCLIP, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67750ACLIP(FOR BACK DOOR TRIM)
67751BOARD, BACK DOOR TRIM
DARK GRAY,TRIM1#,2#,4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67761ACOVER, BACK DOOR TRIM
BLACK,TRIM1#,2#,4#
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67893APROTECTOR, BACK DOOR PANEL, NO.1
74811DHANDLE, DOOR PULL
75129CCUSHION, REAR LICENCE PLATE
75573GMOULDING, BACK WINDOW, OUTSIDE RH NO.1
75574CMOULDING, BACK WINDOW, OUTSIDE LH NO.1
76827BRETAINER, BACK DOOR GARNISH, NO.2
82819QGROMMET, WIRING HARNESS
9015960621
main90159-60621
9018906244
main90189-06244
22 parts on this diagram · 1 diagram in section
