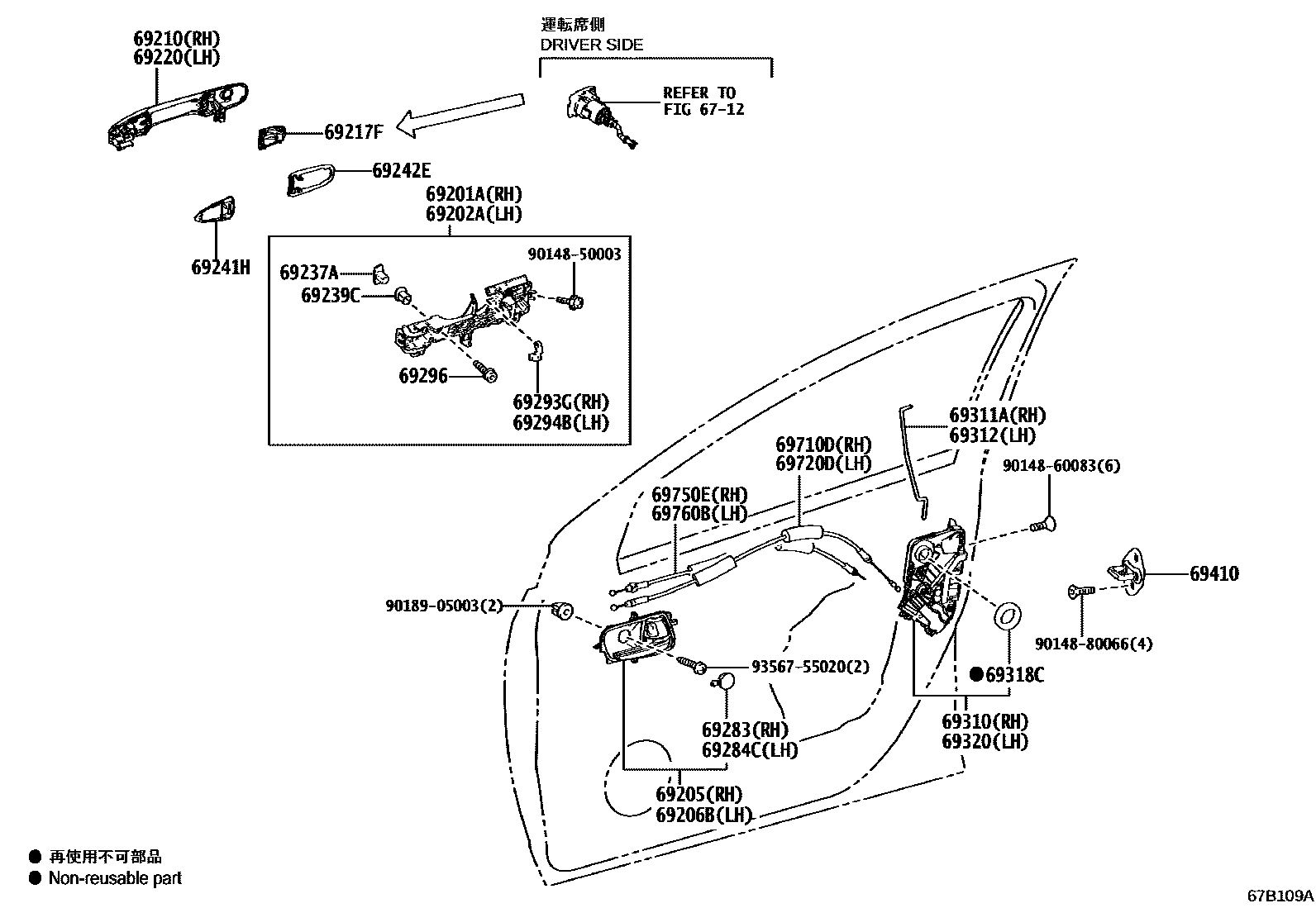

FRONT DOOR LOCK & HANDLE
6712
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,2#,4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202 ,2KC
RED MC.,2NE ,3T3
BORDEAUX M.M,3R9
ICE PINK ME.,2SS ,3U6
CORAL CS.,2SR ,3U7
AVANT-GARDE BRONZE ME.,2SQ ,4V8
THERMO-TECT LIME GREEN,6W7
DK.BLUE M.M.,8W7
CYAN METALLIC,2RV ,8W9
MASSIVE GRAY,1L6
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BORDEAUX M.M,3R9
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID,ICE PINK ME.,2SS ,3U6
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID,THERMO-TECT LIME GREEN,6W7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE M.M.,8W7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),CYAN METALLIC,2RV ,8W9
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202 ,2KC
RED MC.,2NE ,3T3
BORDEAUX M.M,3R9
ICE PINK ME.,2SS ,3U6
CORAL CS.,2SR ,3U7
AVANT-GARDE BRONZE ME.,2SQ ,4V8
THERMO-TECT LIME GREEN,6W7
DK.BLUE M.M.,8W7
CYAN METALLIC,2RV ,8W9
MASSIVE GRAY,1L6
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),WHITE PEARL CS.,070
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),SILVER ME.,1F7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BORDEAUX M.M,3R9
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),ICE PINK ME.,2SS ,3U6
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID,THERMO-TECT LIME GREEN,6W7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),DK.BLUE M.M.,8W7
WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),CYAN METALLIC,2RV ,8W9
69237ANUT, FRONT DOOR HANDLE
sub69237-0E010
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,2#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,2#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID
sub69040-K0011
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
32 parts on this diagram · 1 diagram in section
