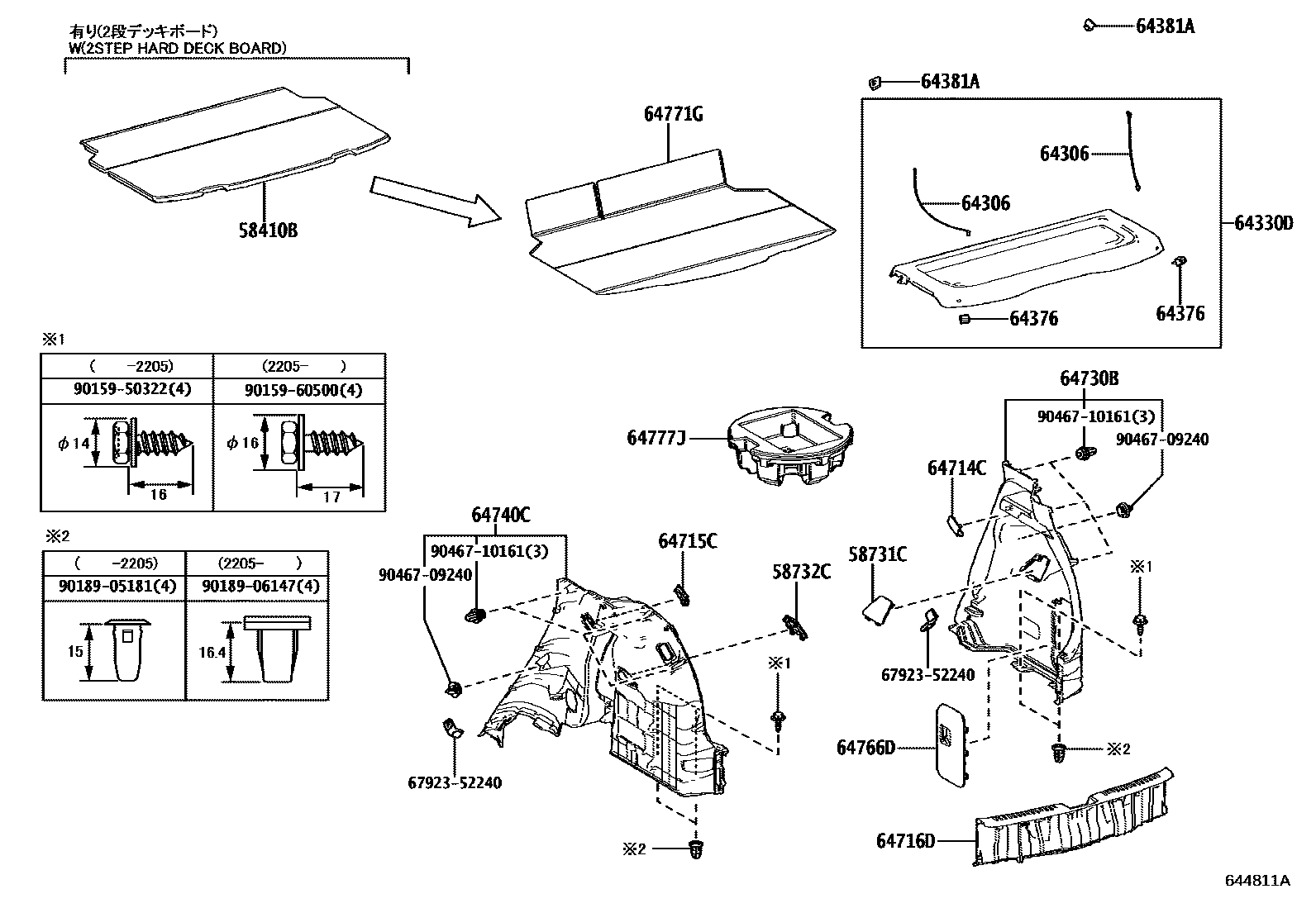

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-K0010-B0iMXPA10,MXPH10202005-202401

DECK CARPET & MAT-2STEP HARD DECK BOARD,DARK GRAY,TRIM1#,2#,4#

58731CCAP, REAR ABSORBER

main58731-K0010-C0iMXPA10..6F202005-202207

BLACK,TRIM1#,2#,4#

58732CCAP, REAR ABSORBER

main58732-K0010-C0iMXPA10..6F202005-202207

BLACK,TRIM1#,2#,4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-K0010×2iMXPA10..6F202005-202207

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-K0010-B0iMXPA10..6F202005-202207

DARK GRAY/BLACK,TRIM1#,2#,4#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020×2iMXPA10..6F202005-202207

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010×2iMXPA10..6F202005-202207

64714CCOVER, DECK SIDE TRIM, RH

main62566-K0010-C0iMXPA10..6F202005-202207

BLACK,TRIM1#,2#,4#

64715CCOVER, DECK SIDE TRIM, LH

main62567-K0010-C0iMXPA10..6F202005-202207

BLACK,TRIM1#,2#,4#

64716DCOVER, DECK TRIM, REAR

main64716-K0040-C0iMXPA10,MXPH10..CVT202005-202401

BLACK,TRIM1#,2#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-K0150-C0supersedes 64730-K0040-C0iMXPA10202401-202501

DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM1#,2#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-K0170-C0supersedes 64740-K0040-C0iMXPA10202401-202501

DECK CARPET & MAT-2STEP HARD DECK BOARD,BLACK,TRIM1#,2#,4#

64766DCOVER, DECK SIDE TRIM JACK

main64766-K0010-C0iMXPA10..6F202005-202207

BLACK,TRIM1#,2#,4#

64771GCOVER, SPARE WHEEL

main64771-K0010-B0iMXPA10,MXPH10202005-202312

DARK GRAY,TRIM1#,2#,4#

main64771-K0011-B0iMXPA10202411-202501

DARK GRAY,TRIM1#,2#

64777JCUSHION, SPARE WHEEL

main64777-K0010iMXPA10,MXPH10202005-202401

6792352240CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-52240

9015950322

main90159-50322

9015960500

main90159-60500

9018905181

main90189-05181

9018906147

main90189-06147

9046709240

main90467-09240

9046710161

main90467-10161

22 parts on this diagram · 1 diagram in section
