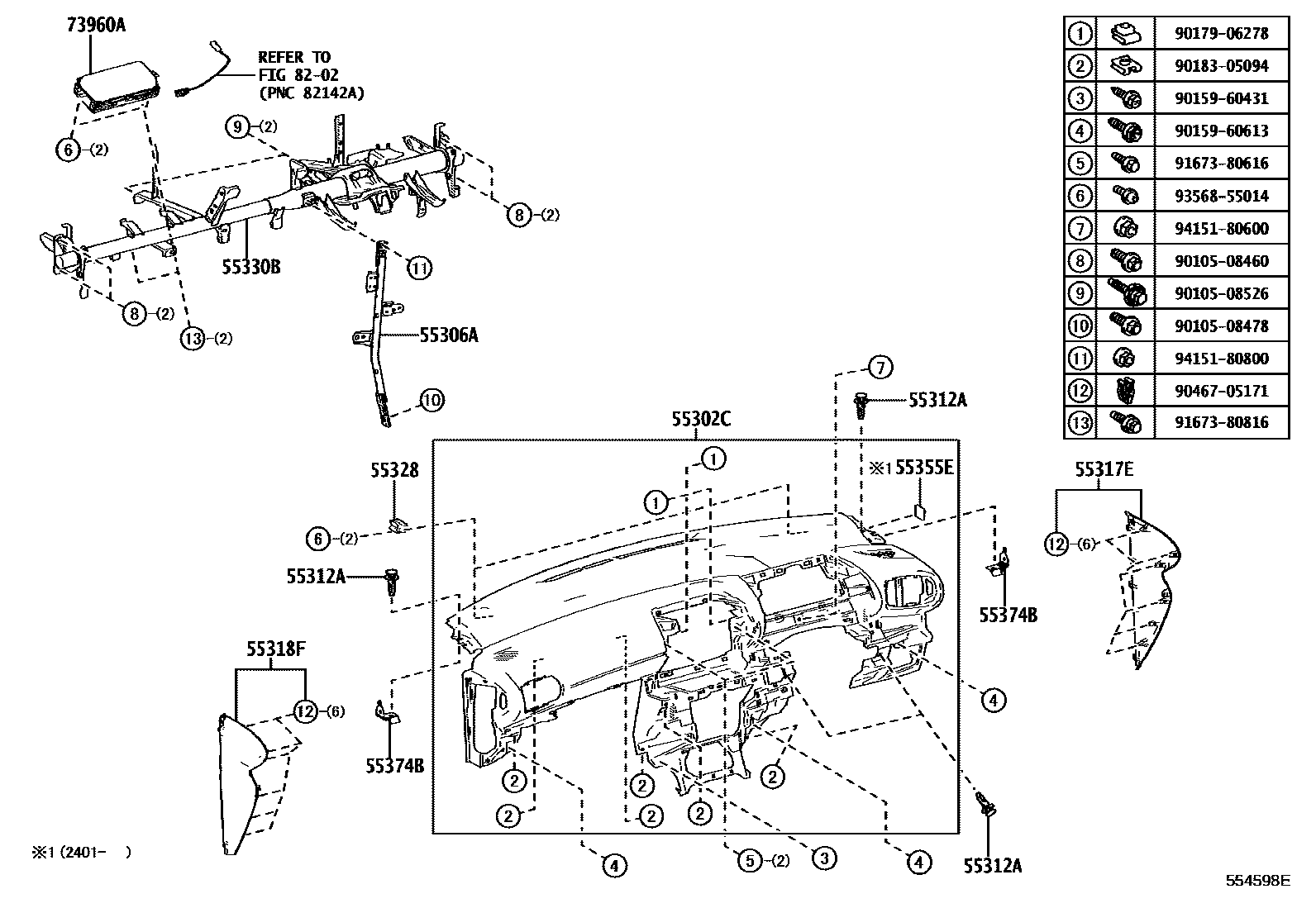

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1INSTRUMENT PANEL(SOFT & RESIN0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE

55302CPANEL SUB-ASSY, INSTRUMENT

main55302-K0010-C0iMXPA10..6F202005-202501

BLACK,TRIM2#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-K0010iMXPA10..6F202005-202501

55312ACLIP, INSTRUMENT PANEL

main52161-16010iMXPA10202005-202501

sub52161-0K040

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-K0010-C0iMXPA10..6F202005-202501

BLACK,TRIM1#,2#,4#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-52170-C0iMXPH10202401

BLACK,TRIM1#,2#,4#

main55318-K0010-C0iMXPA10,MXPH10..CVT202005-202501

BLACK,TRIM1#,2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iMXPA10202006-202501

main55328-60090iMXPA10,MXPH10202005-202006

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52A50iMXPA10,MXPH10..CVT202105-202401

sub55330-52B00

main55330-52B00iMXPA10202401-202501

main55330-K0010iMXPA10,MXPH10202005-202105

55355ECUSHION, INSTRUMENT PANEL

main55355-53050iMXPH10202401-202501

55374BBRACKET, INSTRUMENT PANEL

main55363-52010iMXPA10..6F202005-202501

RH

main55363-52020iMXPH10202005-202501

LH

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-K0010iMXPA10..6F202005-202501

8202

9010508460

main90105-08460

9010508478

main90105-08478

9010508526

main90105-08526

9015960431

main90159-60431

9015960613

main90159-60613

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

24 parts on this diagram · 6 diagrams in section
