FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPPORT C0003 1AIRGUIDE & RADIATOR SUPPORT C0004 1AIRGUIDE & RADIATOR SUPPORT C0005 1RADIATOR SUPPORT & FENDER APR0006 1RADIATOR SUPPORT & FENDER APR0007 1DASH PANEL

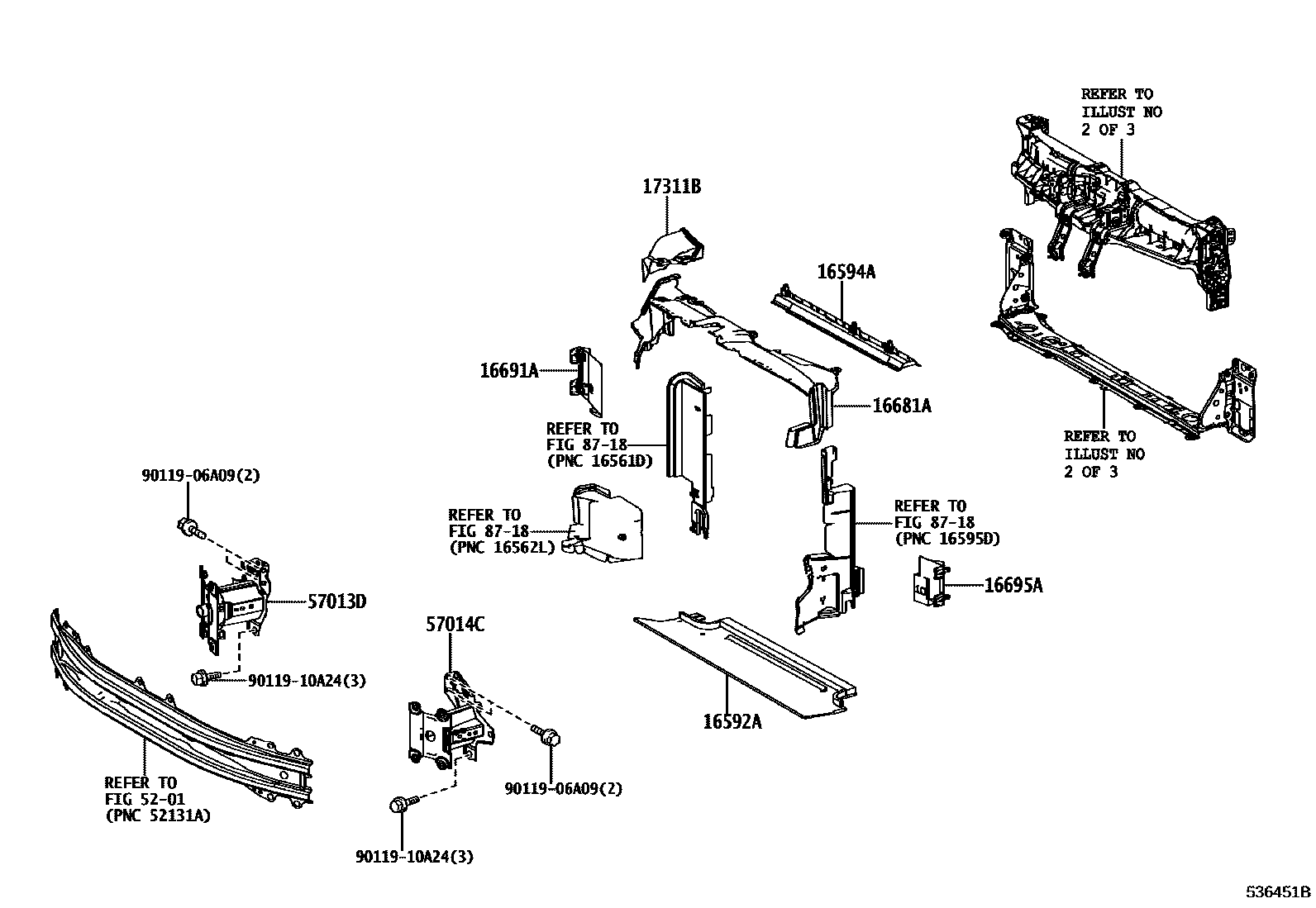

16592AGUIDE, RADIATOR AIR, NO.3

main16592-15020iM15#..MXPA10,MXPH10..CVT202005-202501

16594AGUIDE, RADIATOR AIR, NO.2

main16594-15010iM15AFKS..MXPA10..6F202005-202501

main16594-15020iM15AFXE..MXPH10202005-202401

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-15021iM15#..MXPA10,MXPH10..CVT202005-202401

main16681-15070iM15AFKS..MXPA10202401-202501

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-15020iM15AFKS..MXPA10..6F202005-202501

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-15010iM15AFKS..MXPA10..6F202005-202501

17311BDUCT, AIR INLET, NO.1

main17311-15010iM15#..MXPA10,MXPH10..CVT202005-202401

main17311-15060iM15AFKS..MXPA10202401-202501

5201

57013DBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-K0010iMXPH10202005-202501

57014CBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-K0010iMXPA10..6F202005-202501

8718

9011906A09

main90119-06A09

9011910A24

main90119-10A24

12 parts on this diagram · 7 diagrams in section
