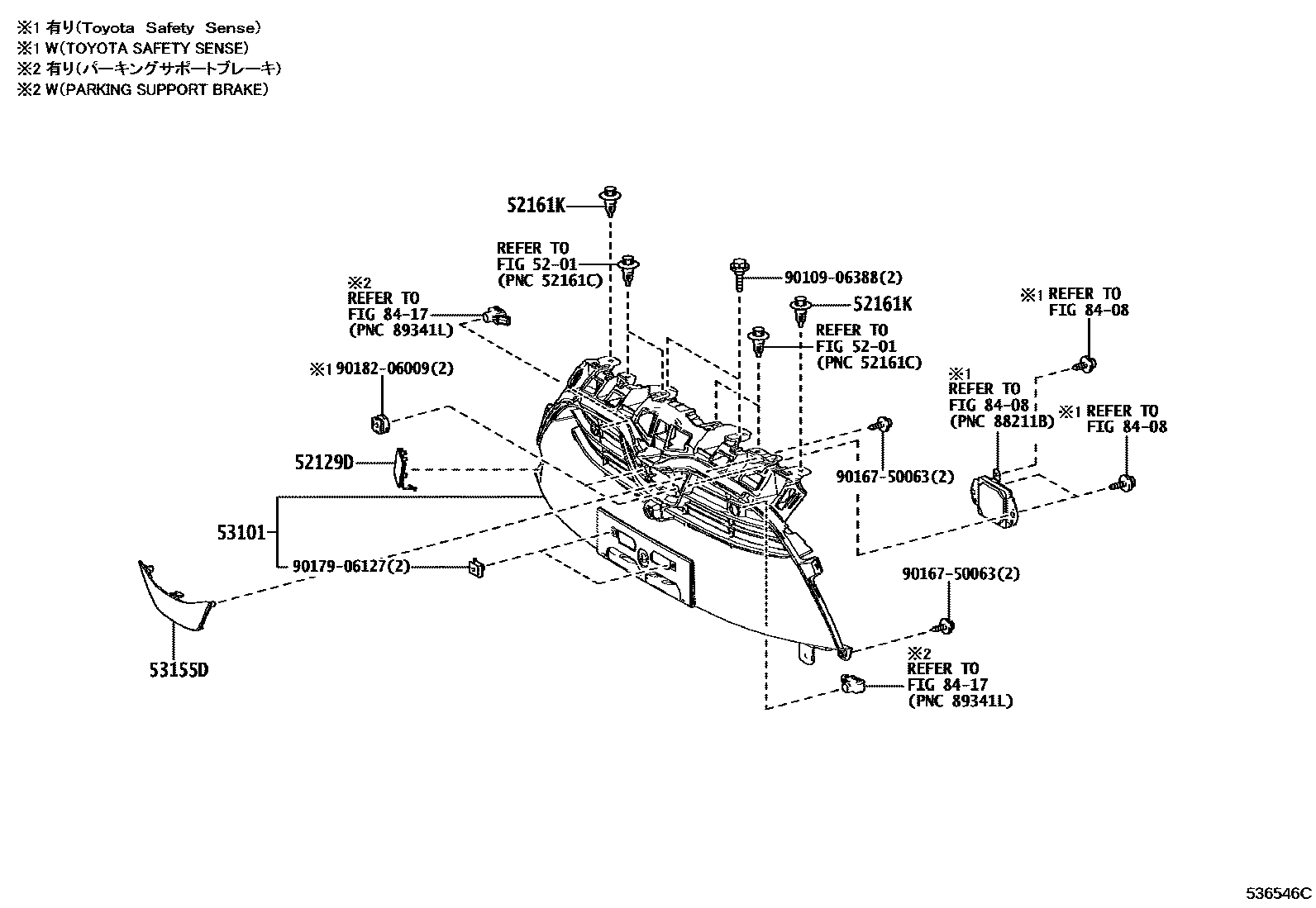

RADIATOR GRILLE
5201
52129DCOVER, FRONT BUMPER, LOWER
S PACKAGE
S PACKAGE
S PACKAGE&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE)
S PACKAGE&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*BGM)
52161KPIECE, FRONT BUMPER
sub52161-0K040
53101GRILLE SUB-ASSY, RADIATOR
NO PAINT REQ.
NO PAINT REQ.,MID PACKAGE
NO PAINT REQ.,S PACKAGE
NO PAINT REQ.
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE)
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACKMONITOR-WITH(*BGM)
NO PAINT REQ.,S PACKAGE
NO PAINT REQ.,S PACKAGE&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*BGM)
NO PAINT REQ.,S PACKAGE&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE)
53155DSEAL, RADIATOR GRILLE, NO.1
8408
8417
9010906388
main90109-06388
9016750063
main90167-50063
9017906127
main90179-06127
9018206009
main90182-06009
11 parts on this diagram · 2 diagrams in section
