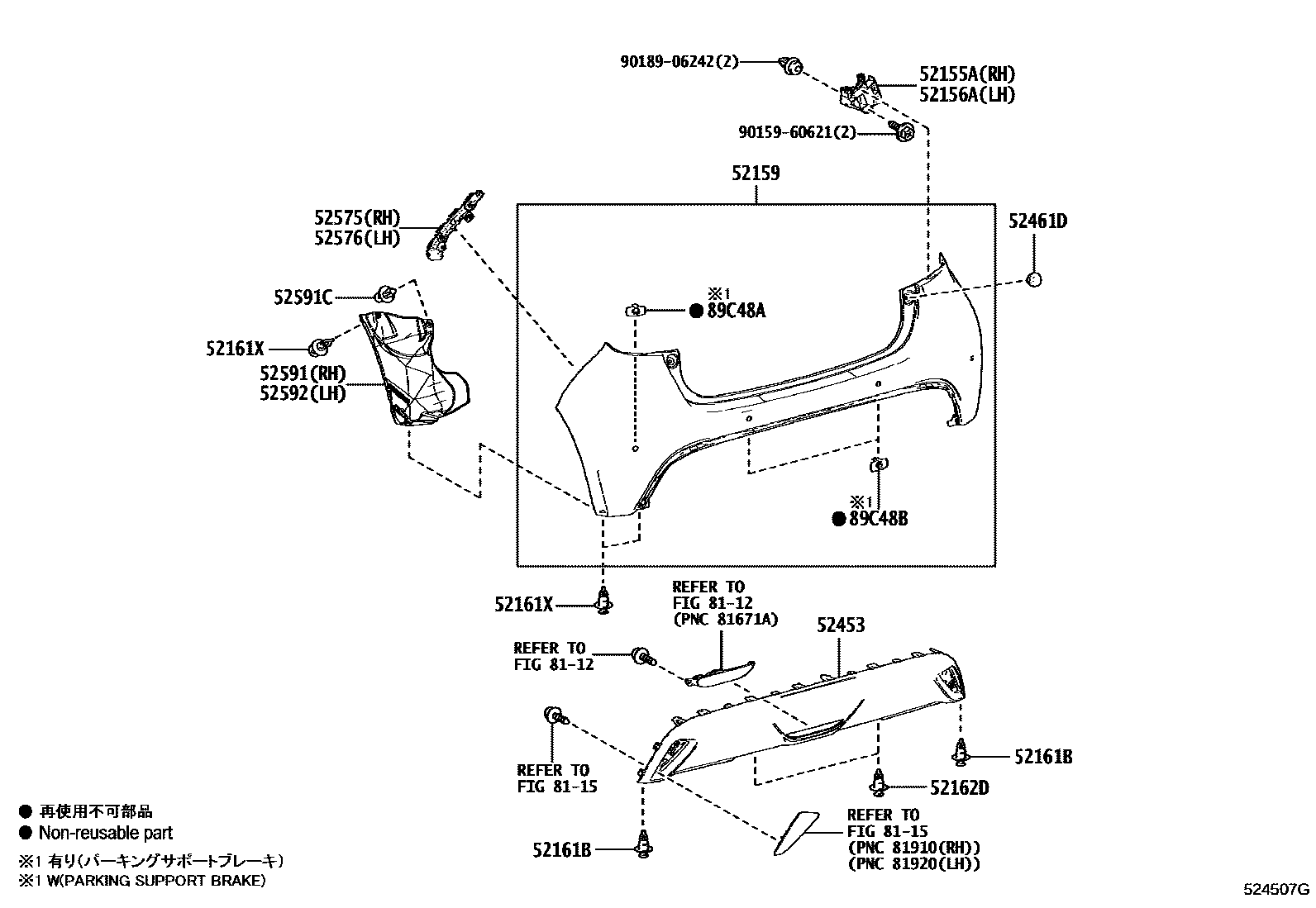

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,S PACKAGE
PAINT REQ.,MID PACKAGE
PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE)
PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)
52161BPIECE, REAR BUMPER
sub52161-0K040
52161XPIECE, REAR BUMPER
sub52161-0K040
52162DPIECE, REAR BUMPER
sub52161-0K040
52453GUARD, REAR BUMPER, CENTER
52461DCUSHION, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
BLACK
52592SEAL, REAR BUMPER SIDE, LH
8112
8115
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE)
sub89348-K0231
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)
sub89348-K0231
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE)
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)
MID PACKAGE
S PACKAGE
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE)
sub89348-K0231
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)
sub89348-K0231
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE)
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB)
MID PACKAGE
S PACKAGE
9015960621
main90159-60621
9018906242
main90189-06242
19 parts on this diagram · 1 diagram in section
