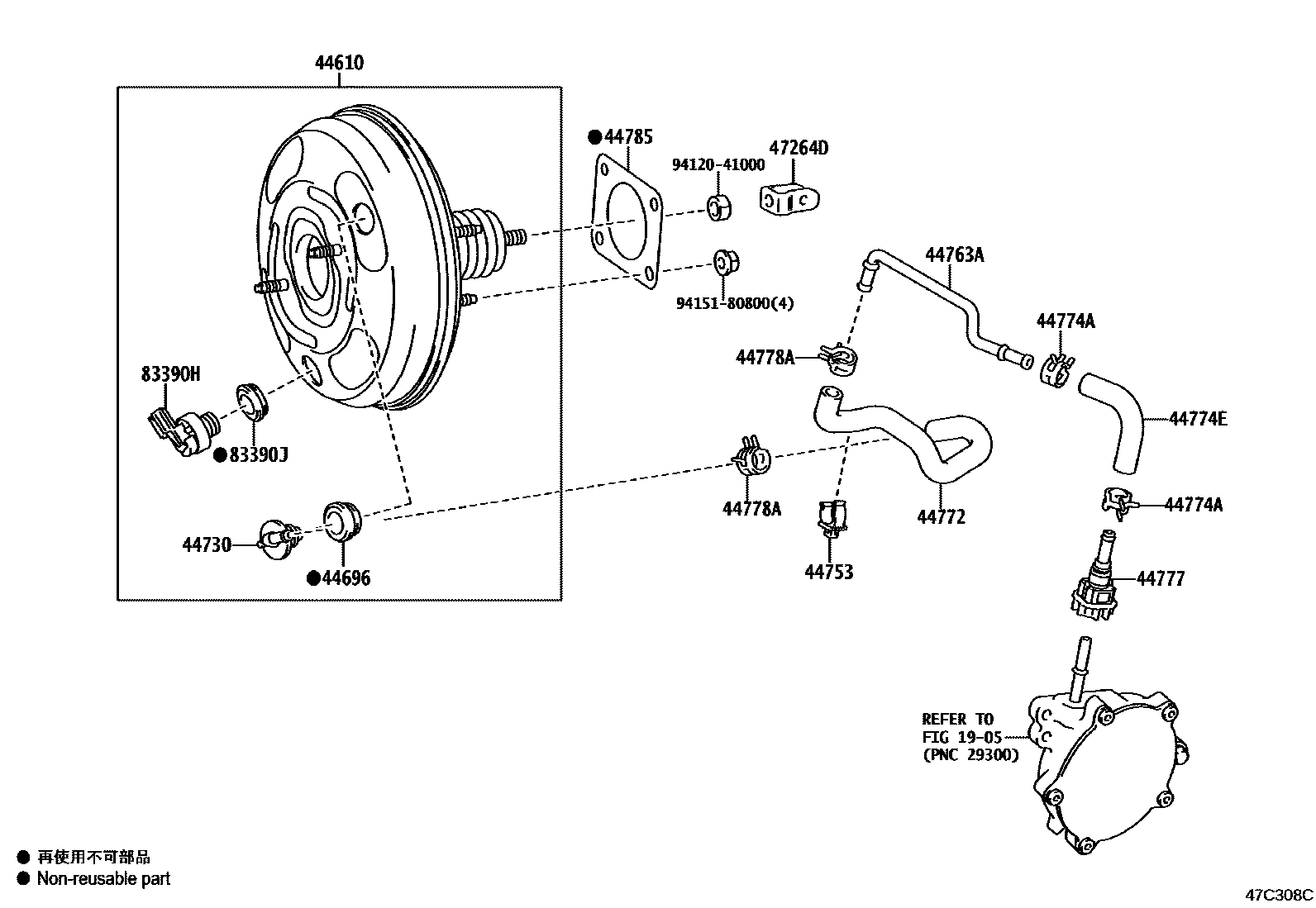

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44753CLAMP, VACUUM RESERVOIR, NO.2
44763ATUBE, HOSE TO HOSE, NO.1
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44774EHOSE, UNION TO CONNECTOR TUBE
44777CONNECTOR, VACUUM HOSE, NO.1
44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
83390HSWITCH ASSY, VACUUM WARNING
83390JGROMMET, VACUUM WARNING SWITCH
9412041000
main94120-41000
9415180800
main94151-80800
17 parts on this diagram · 1 diagram in section
