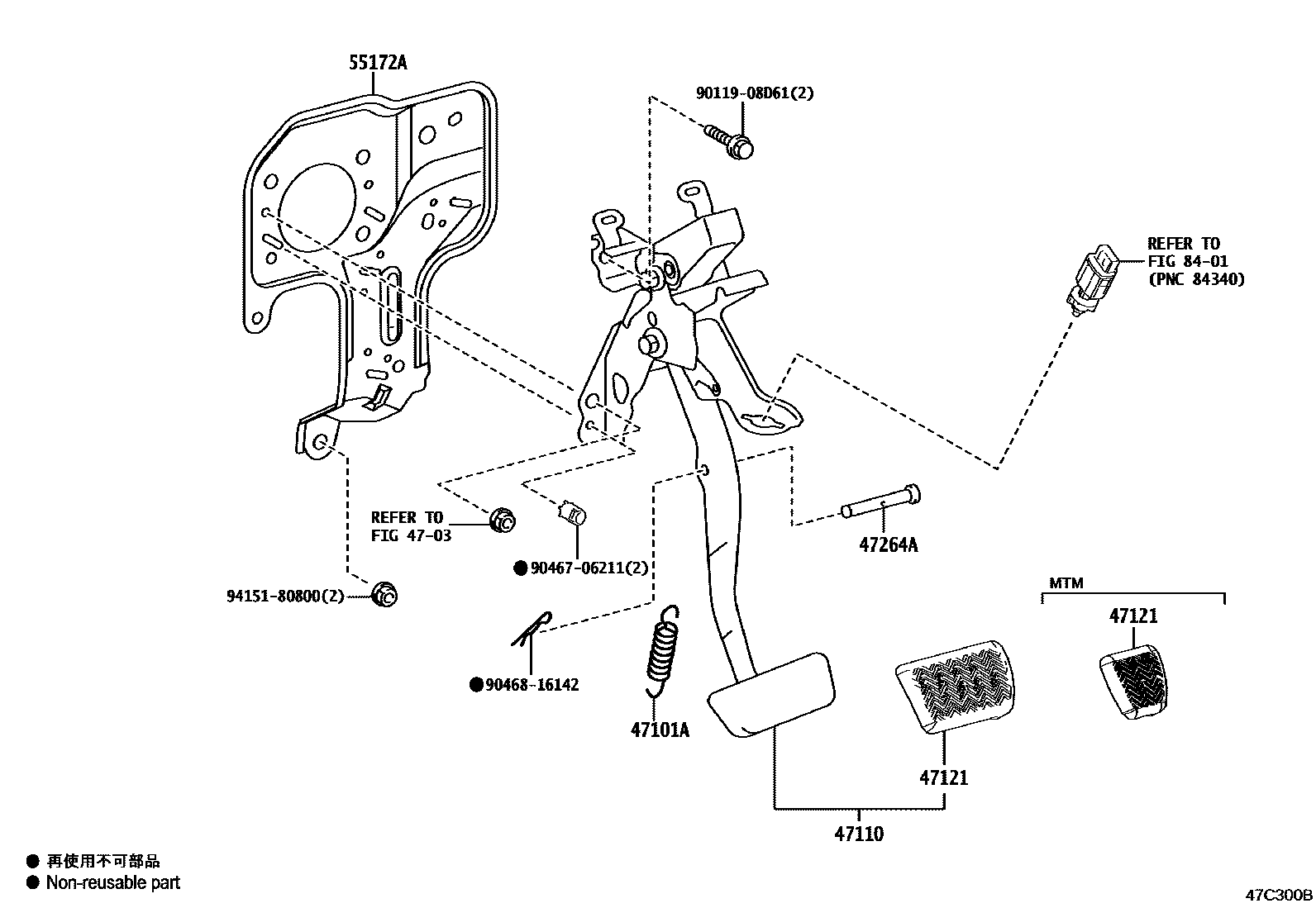

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iMXPH10202005-202401

main90506-17003iMXPA10..CVT202005-202401

47110SUPPORT ASSY, BRAKE PEDAL

main47110-K0070iMXPA10202401-202501

main47110-K0080iMXPA10..6F202005-202207

main47110-K0090iMXPH10202005-202401

47121PAD, BRAKE PEDAL

main47121-12040iMXPA10..6F202005-202207

main47121-47010iMXPA10,MXPH10..CVT202005-202401

47264APIN(FOR PUSH ROD)

main90249-08051iMXPA10,MXPH10202005-202206

main90249-08256iMXPA10,MXPH10202207-202401

55172ABASE, BRAKE PEDAL SUPPORT

main55172-K0010iMXPA10..6F202005-202207

8401

9011908D61

main90119-08D61

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
