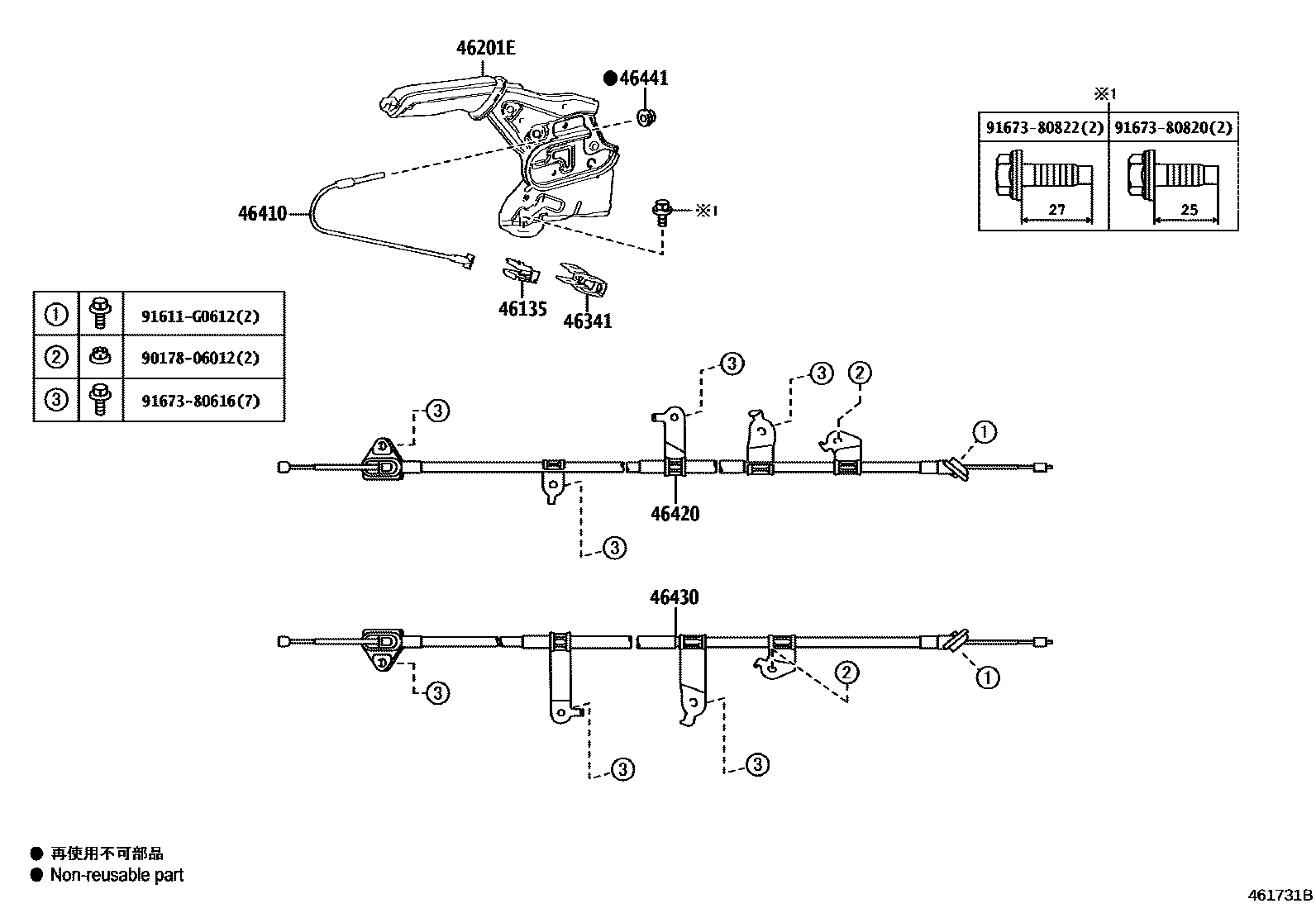

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-K0010iMXPA10,MXPH10..CVT202005-202501

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-K0010-C0iMXPA10..6F202005-202501

BLACK,TRIM1#,2#,4#

46341EQUALIZER, PARKING BRAKE

main46341-K0010iMXPA10..6F202005-202501

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-K0010iMXPA10202005-202501

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52480iMXPH10202401

main46420-K0010iMXPA10..6F202005-202501

main46420-K0020iMXPH10202005-202401

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52480iMXPH10202401

main46430-K0010iMXPA10,MXPH10..CVT202005-202401

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iMXPA10..6F202005-202501

9017806012

main90178-06012

91611G0612

main91611-G0612

9167380616

main91673-80616

9167380820

main91673-80820

9167380822

main91673-80822

12 parts on this diagram · 2 diagrams in section
