STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45253COVER, STEERING COLUMN HOLE
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
MID PACKAGE&WIRELESS DOOR LOCK-SMART(D&P&BK)WITH HZD & BZR & ID
S PACKAGE&WIRELESS DOOR LOCK-SMART(D&P&BK)WITH HZD & BZR & ID
WIRELESS DOOR LOCK-TRANSMITTER WITH HAZZARD
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
45897BOLT, STEERING LOCK SET
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ID
45897ABOLT, TILT STEERING PAWL SET
8401
4525652010PROTECTOR, COLUMN TUBE EDGE, NO.1
9011910985
9017810027
9046710161
91511B0825
9356855014

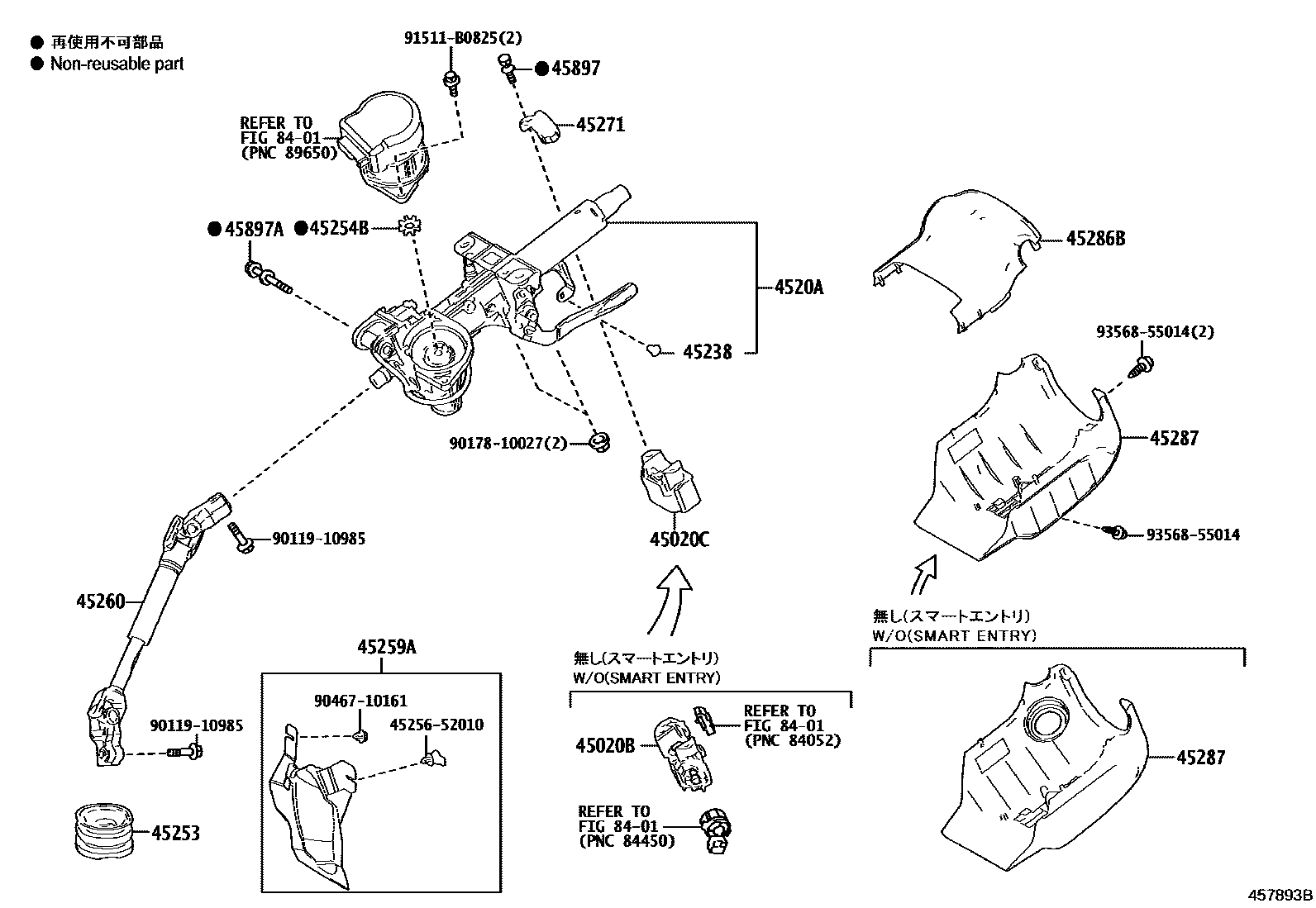

20 parts on this diagram · 1 diagram in section
