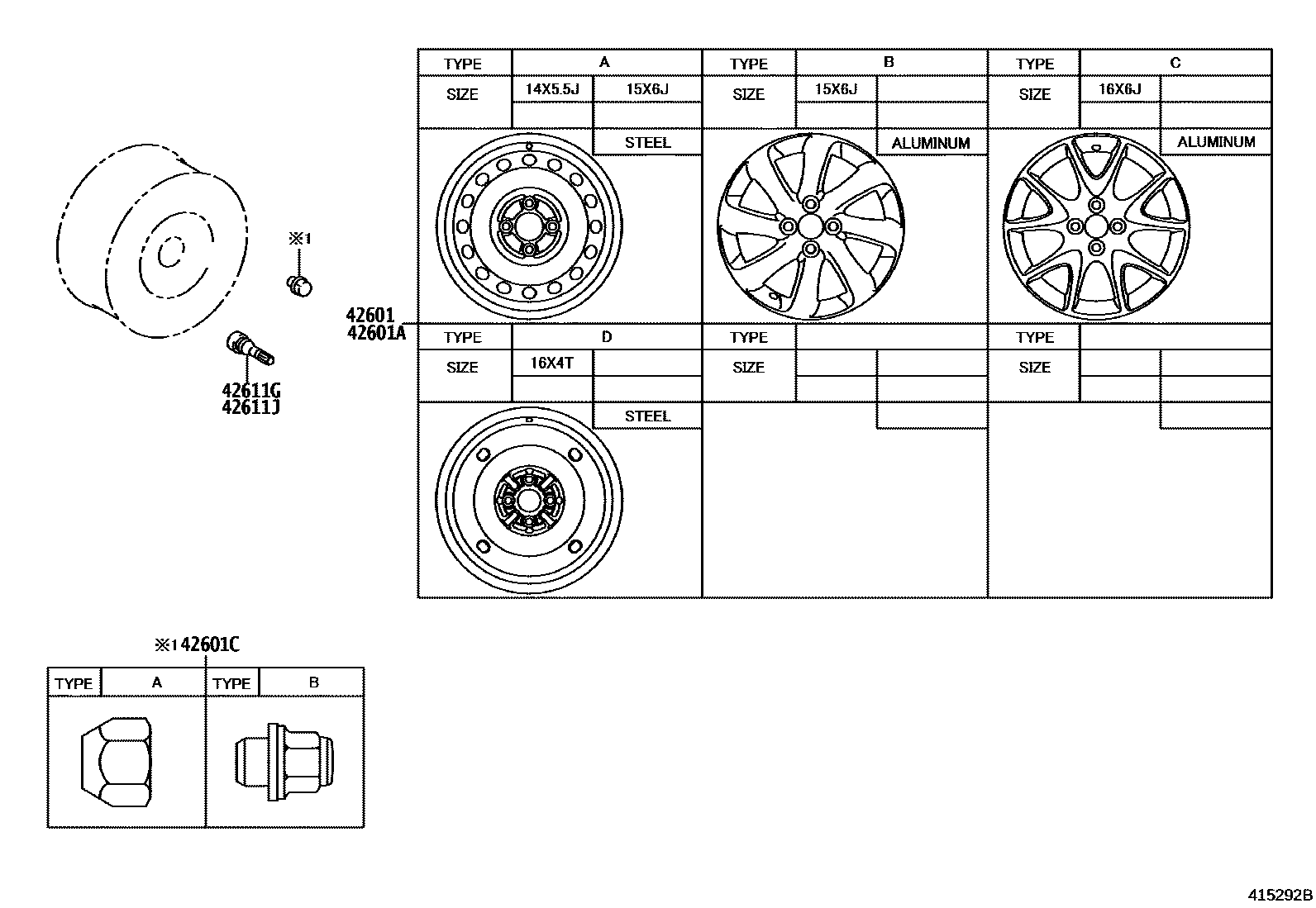

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-K0160iMXPA10,MXPH10202005-202501

15X6J, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-52400iMXPA10..6F202005-202501

16X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iMXPA10..6F202005-202501

TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iMXPA10..6F202005-202401

TIRE & DISC WHEEL-185/60R15 ALUMINUM

main90942-05009iMXPA10..6F202005-202401

TIRE & DISC WHEEL-185/55R16 ALUMINUM

main90942-05009iMXPA10202401-202501

MID PACKAGE

main90942-05009iMXPA10202401-202501

S PACKAGE

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMXPA10..6F202005-202501

5 parts on this diagram · 3 diagrams in section
