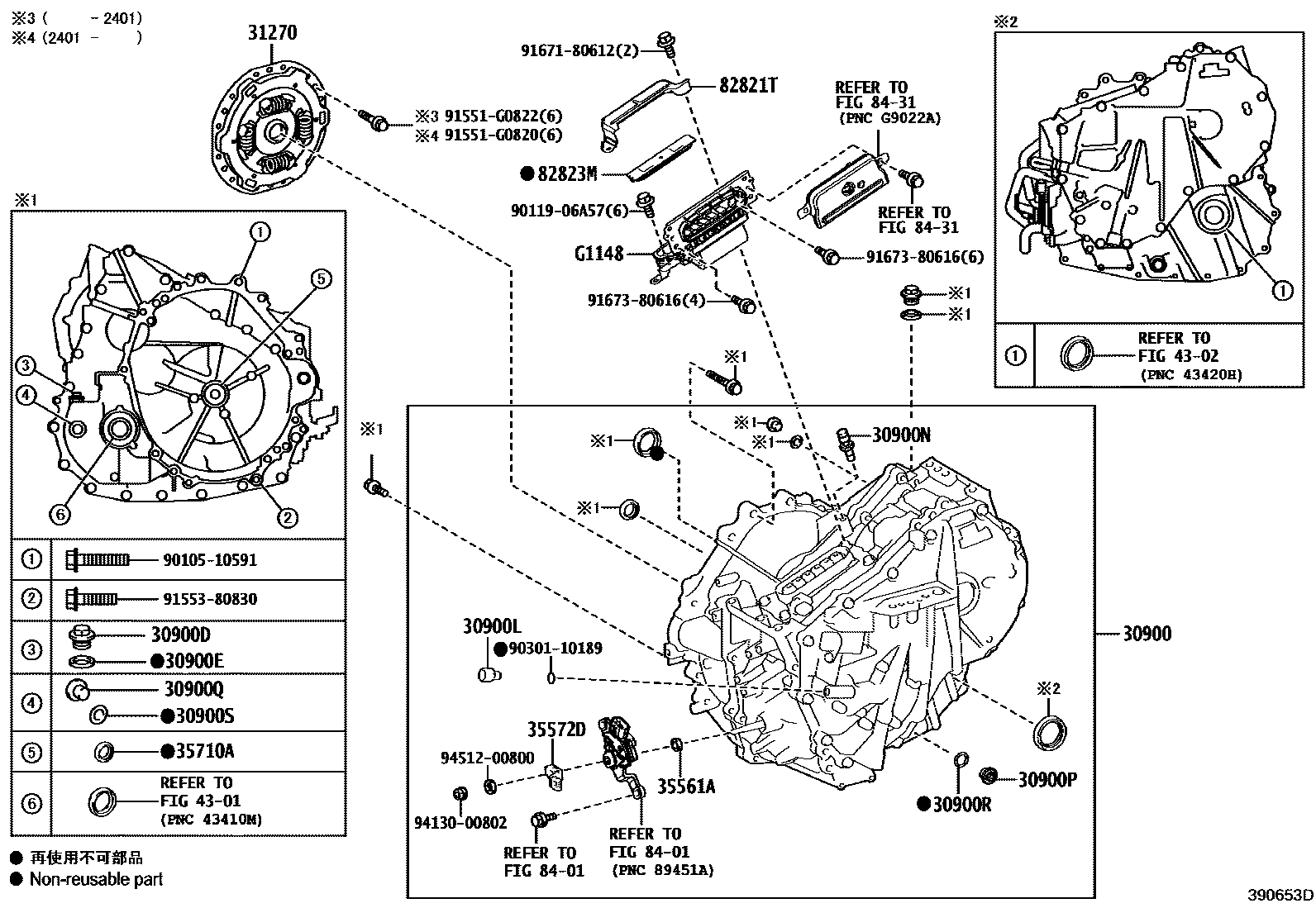

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-K0010iMXPH10¥270,000202005-202401

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMXPH10¥240202005-202401

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMXPH10¥110202005-202401

30900LUNION(FOR TRANSAXLE HOUSING)

main90404-16031iMXPH10¥340202005-202401

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMXPH10¥120202005-202401

30900PPLUG, DRAIN(HEV)

main90341-18016iMXPH10¥190202005-202401

30900QPLUG, FILLER(HEV)

main90341-18016iMXPH10¥190202005-202401

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMXPH10¥110202005-202401

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMXPH10¥110202005-202401

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-K0011iMXPH10¥36,500202005-202006

sub31270-K0012¥30,400

main31270-K0012iMXPH10¥30,400202006-202106

REFER TO PNC 13405

sub31270-K0H00¥33,500

main31270-K0013iMXPH10¥27,600202106-202401

REFER TO PNC 13405

main31270-K0013iMXPH10¥27,600202401

35561ASEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)

main90311-12016iMXPH10¥190202005-202401

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-K0010iMXPH10¥680202005-202401

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iMXPH10¥270202005-202401

4301

4302

82821TCOVER, CONNECTOR

main82821-52350iMXPH10¥1,260202005-202401

82823MCAP, TERMINAL

main82823-47040iMXPH10¥700202005-202401

8401

8431

G1148CABLE, MOTOR

mainG1148K0010iMXPH10202005-202401

9010510591

main90105-10591¥120

9011906A57

main90119-06A57¥60

9030110189

main90301-10189¥170

91551G0820

main91551-G0820¥80

91551G0822

main91551-G0822¥80

9155380830

main91553-80830¥80

9167180612

main91671-80612¥60

9167380616

main91673-80616¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

30 parts on this diagram · 1 diagram in section
