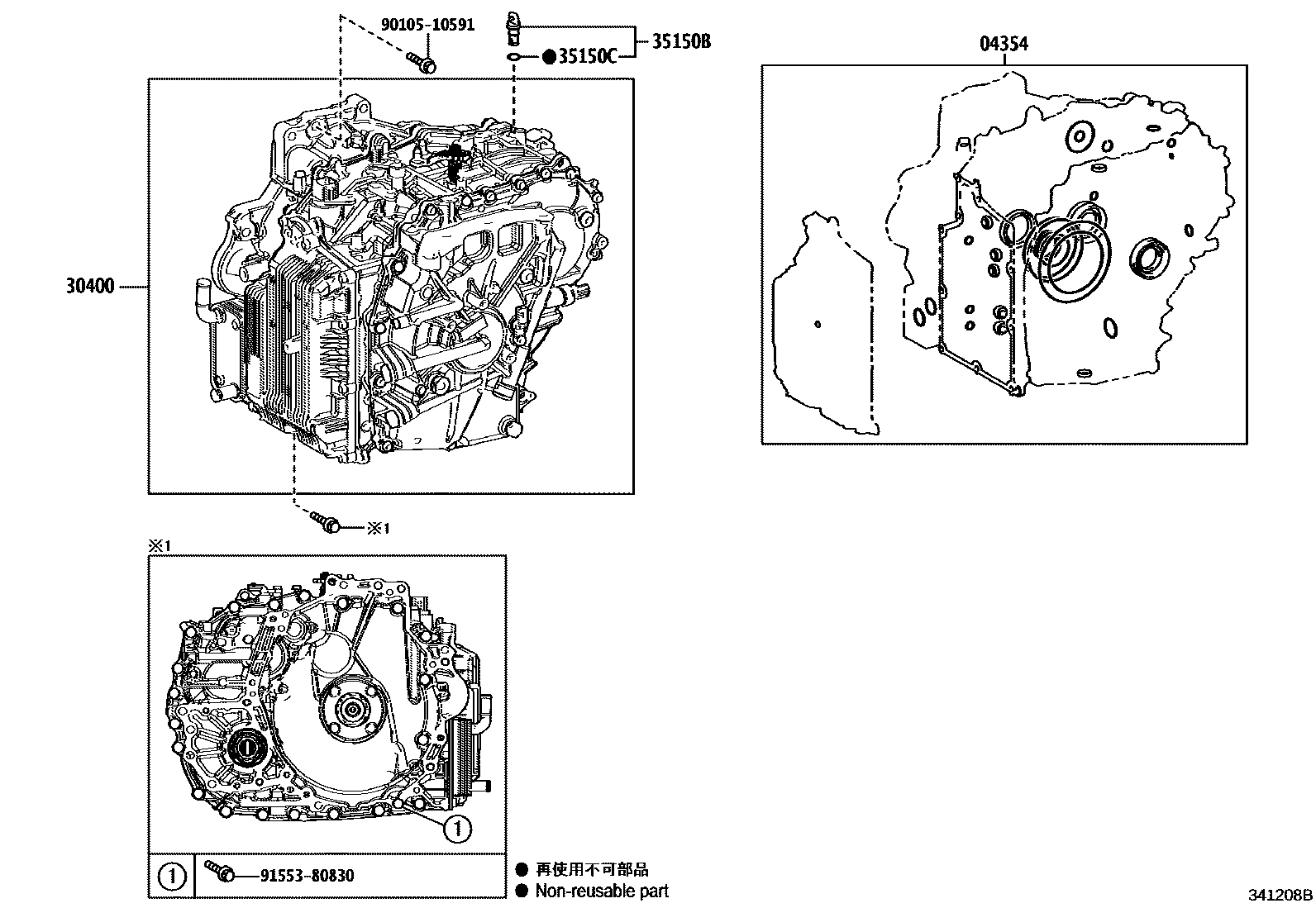

TRANSAXLE ASSY(CVT)

0001 1K320 0002 1K320 0003 1K320 0004 1K320 0005 1K320 0006 1K321 0007 1K321 0008 1K321 0009 1K321 0010 1K321

04354OVERHAUL KIT, TRANSAXLE(CVT)

main04354-K0010iMXPA10202005-202501

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52660iMXPA10202401-202501

K321

main30400-K0030iMXPA10..CVT202005-202401

K320

35150BPLUG ASSY, TRANSMISSION CASE

main35150-12040iMXPA10202401-202501

NO.2

main35150-48010iMXPA10..CVT202005-202401

main35150-48010iMXPA10202401-202501

NO.1

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXPA10202401-202501

NO.1

main90301-09173iMXPA10..CVT202005-202401

main90301-11008iMXPA10202401-202501

NO.2

9010510591

main90105-10591

9155380830

main91553-80830

6 parts on this diagram · 10 diagrams in section
