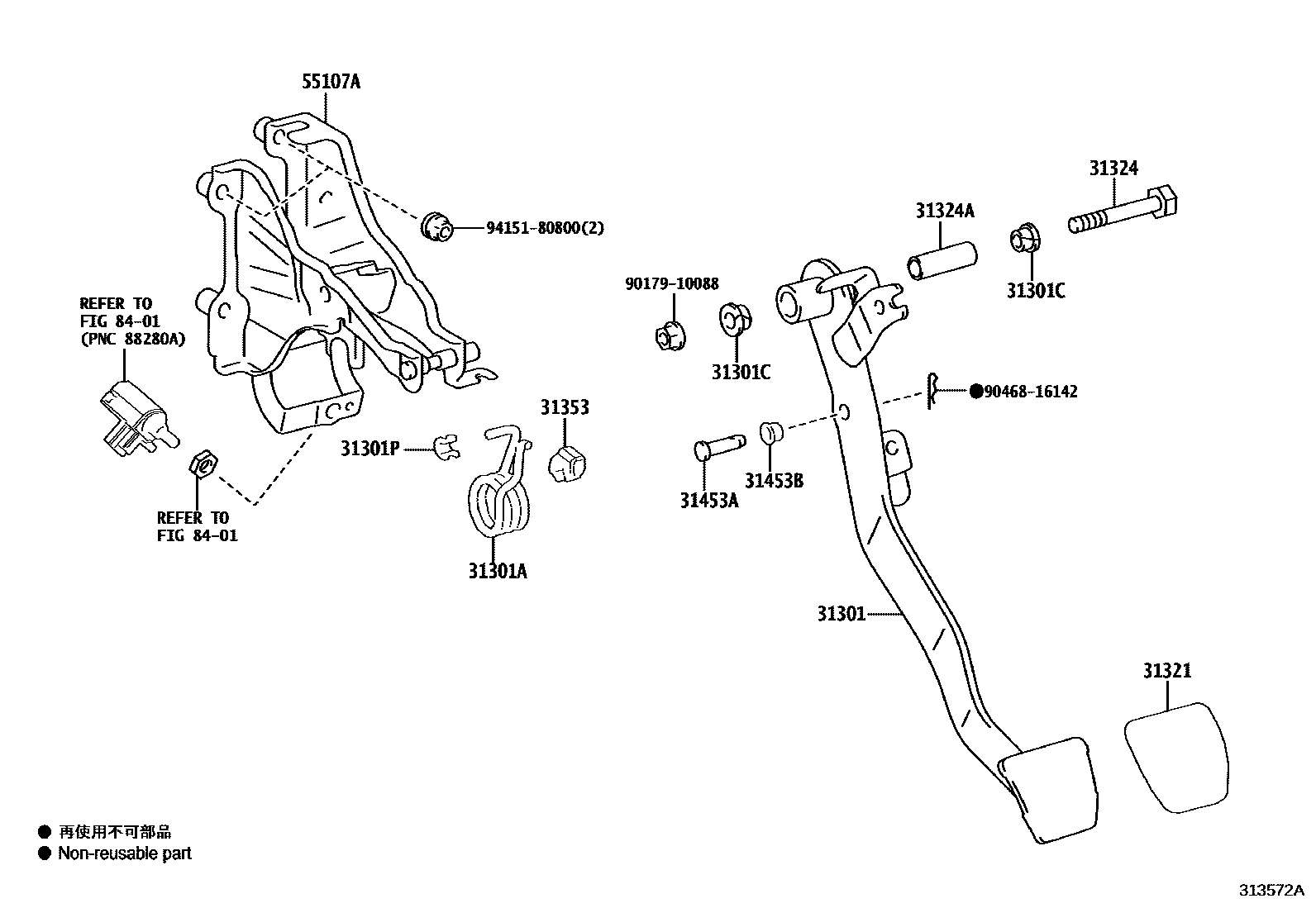

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-K0020iMXPA10..6F202005-202207

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iMXPA10..6F202109-202207

main90949-03068iMXPA10..6F202005-202108

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iMXPA10..6F202005-202207

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iMXPA10..6F202005-202207

31321PAD, CLUTCH PEDAL

main31321-42010iMXPA10..6F202005-202207

31324SHAFT, CLUTCH PEDAL

main90101-10039iMXPA10..6F202005-202207

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMXPA10..6F202005-202207

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iMXPA10..6F202005-202207

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08084iMXPA10..6F202005-202207

L=28.3

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iMXPA10..6F202005-202207

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-K0010iMXPA10..6F202005-202207

8401

9017910088

main90179-10088

9046816142

main90468-16142

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
