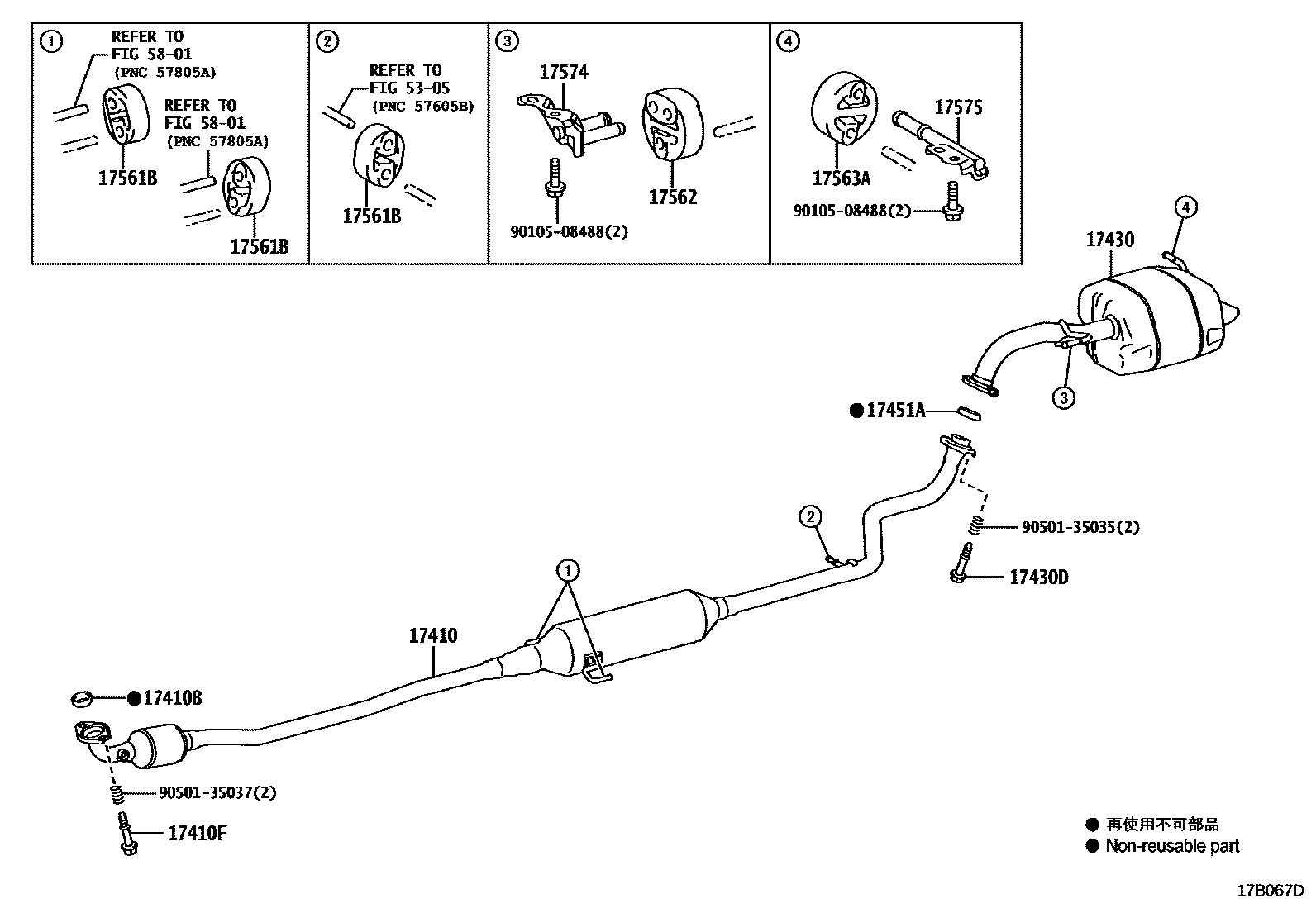

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17430PIPE ASSY, EXHAUST, TAIL
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5305
5801
9010508488
main90105-08488
9050135035
main90501-35035
9050135037
main90501-35037
16 parts on this diagram · 3 diagrams in section
