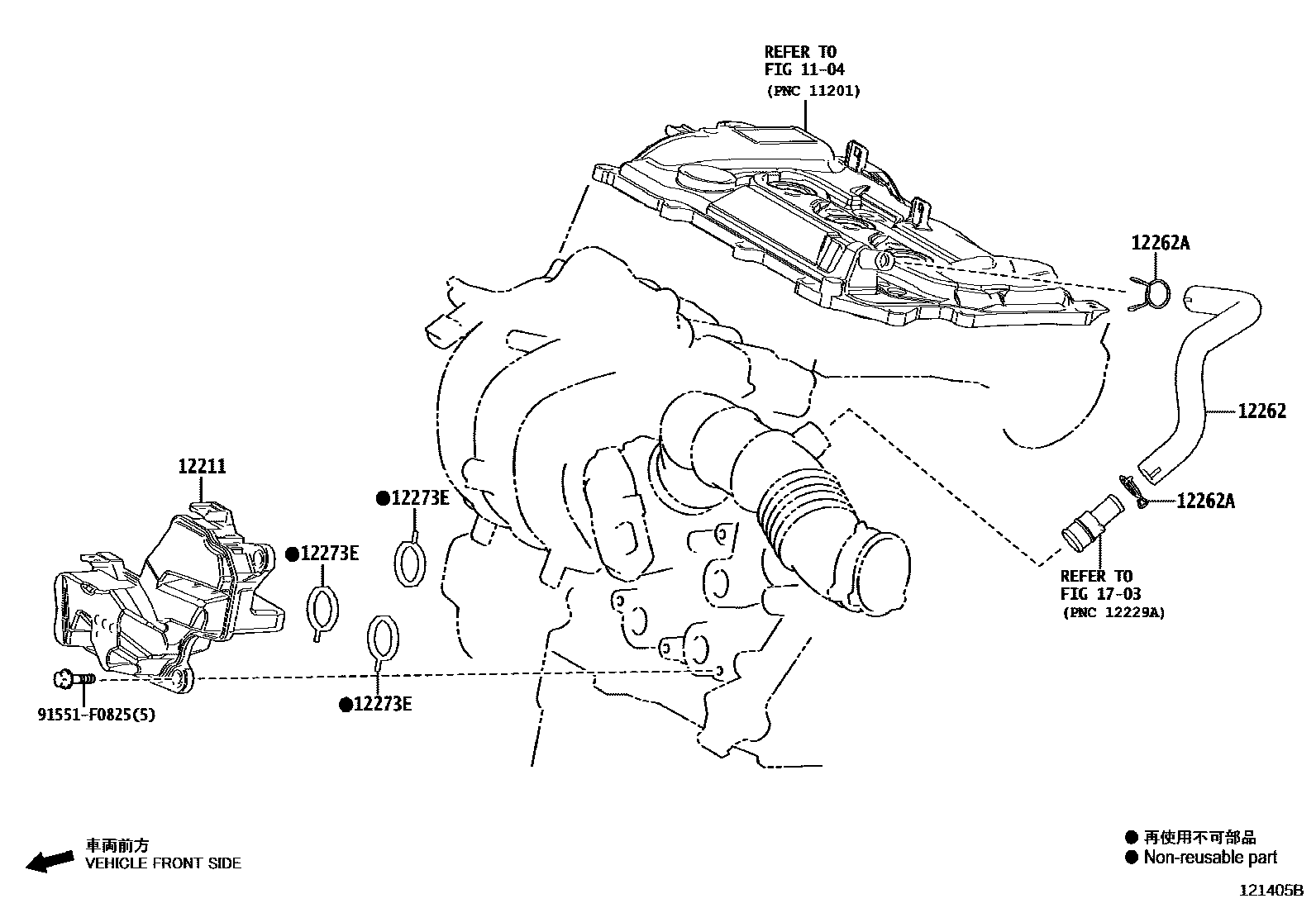

VENTILATION HOSE

1104

12211CASE, VENTILATION, NO.1

main12211-15060iM15AFKS..MXPA10..6F202005-202207

main12211-15061iM15AFKS..MXPA10202401-202501

12262HOSE, VENTILATION, NO.2

main12262-15100iM15AFKS..MXPA10..6F202005-202207

main12262-15110iM15AFXE..MXPH10202401

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2iM15AFKS..MXPA10..6F202005-202207

12273EGASKET(FOR VENTILATION CASE)

main12273-15010×3iM15AFKS..MXPA10..6F202005-202207

1703

91551F0825

main91551-F0825

7 parts on this diagram · 1 diagram in section
