MIRROR

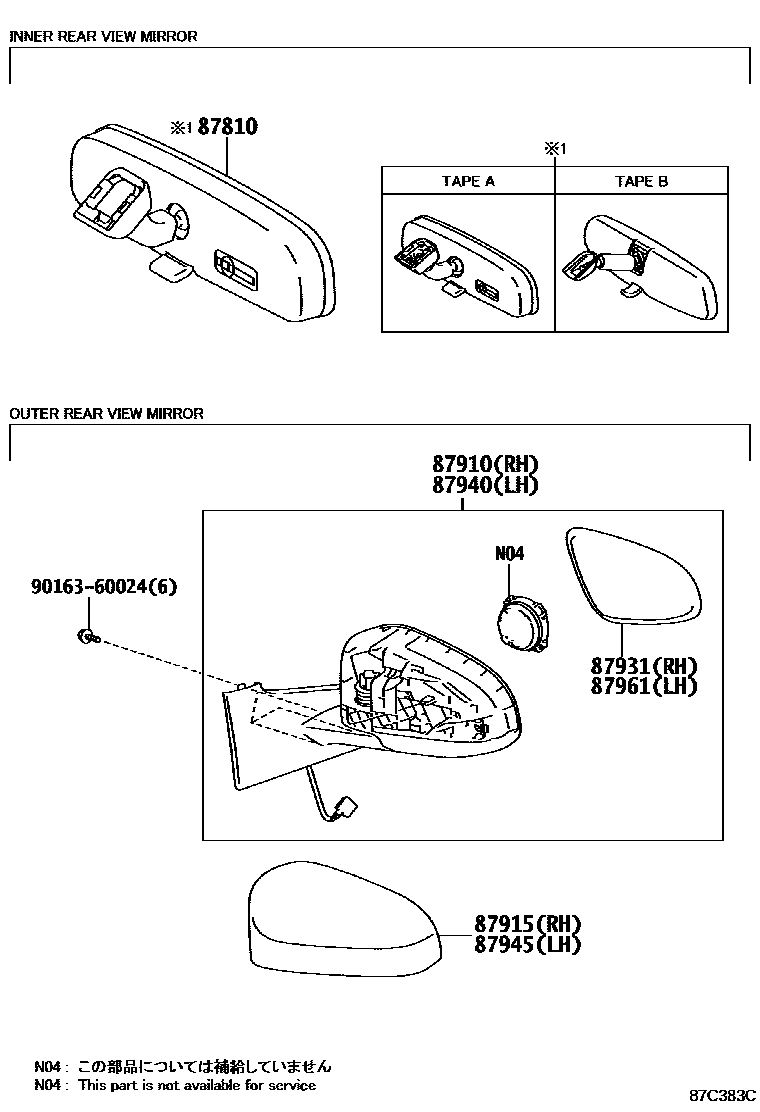

87810MIRROR ASSY, INNER REAR VIEW
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
PRE-COLLISION SYSTEM-WITH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&COLORED
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&COLORED
NO PAINT REQ.,S PACKAGE
87915COVER, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*162&COLORED,SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-*162&COLORED,GIN BUCK ME.,1J1
OUTSIDE REAR VIEW MIRROR-*162&COLORED,BLACK MC.,209
SUPER RED 5,3P0
CHERRY PEARL CS.,3S7
DK. BROWN M.M.,4U3
ORANGE ME.,4R8
LUMINOUS YELLOW,5B5
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
BLUE M.M.,8T0
BLUE ME.,8T7
COOL SODA ME.,8V7
CLEAR BLUE CS.,8Y3
DK.BLUE MC.,8S6
NO PAINT REQ.
87931OUTER MIRROR, RH
S PACKAGE
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&COLORED
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&COLORED
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162&COLORED
NO PAINT REQ.,S PACKAGE
87945COVER, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-*162&COLORED,SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-*162&COLORED,WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
OUTSIDE REAR VIEW MIRROR-*162&COLORED,GIN BUCK ME.,1J1
OUTSIDE REAR VIEW MIRROR-*162&COLORED,BLACK MC.,209
SUPER RED 5,3P0
CHERRY PEARL CS.,3S7
DK. BROWN M.M.,4U3
ORANGE ME.,4R8
LUMINOUS YELLOW,5B5
TURQUOISE M.M.,788
LT.BLUE M.M.,8S7
BLUE M.M.,8T0
BLUE ME.,8T7
COOL SODA ME.,8V7
CLEAR BLUE CS.,8Y3
DK.BLUE MC.,8S6
NO PAINT REQ.
87961MIRROR OUTER, LH
S PACKAGE
9016360024
main90163-60024
8 parts on this diagram · 2 diagrams in section
