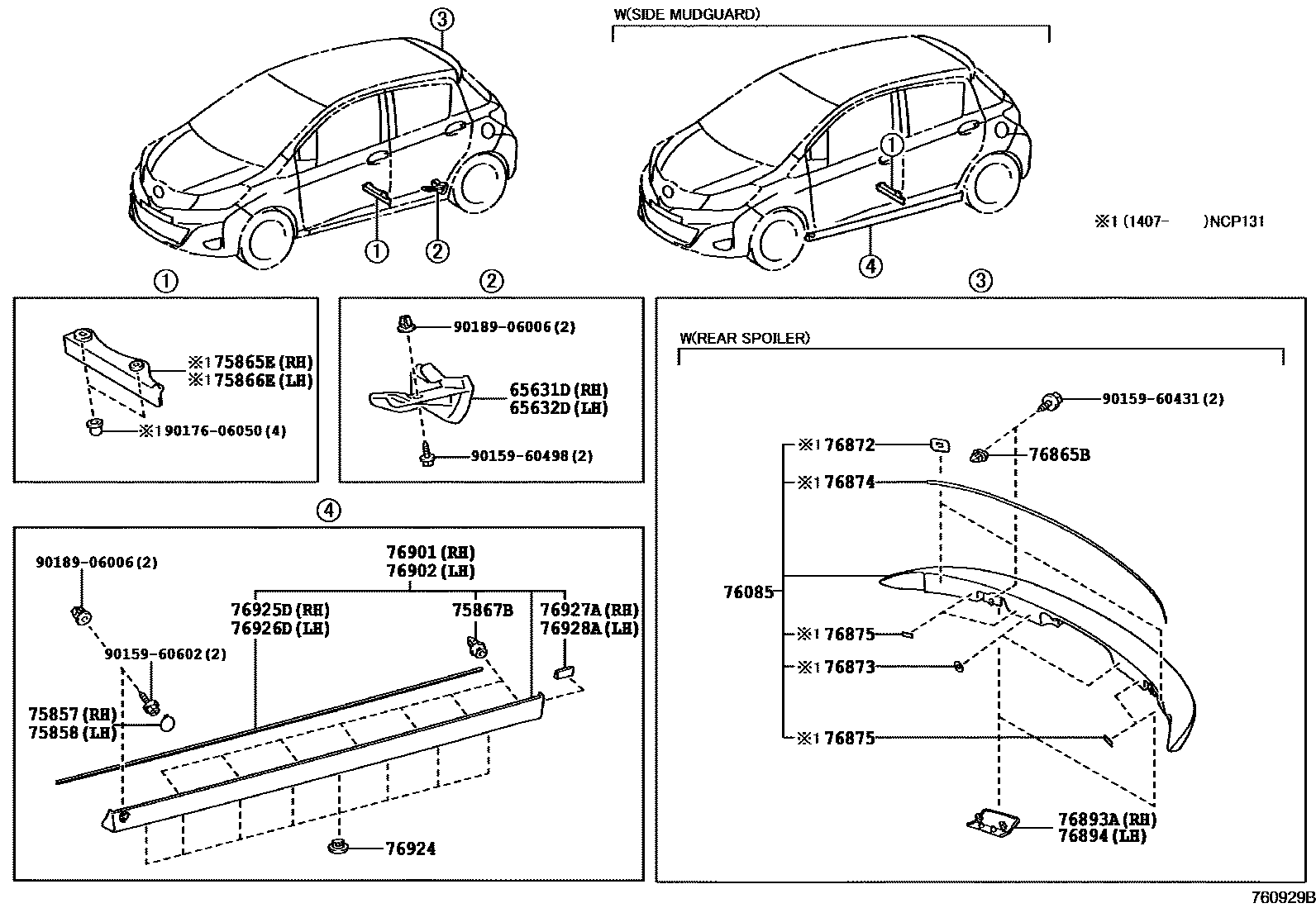

MUDGUARD & SPOILER

0001 1SIDE & REAR 0002 1MUD GUARD(DOP)

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52120iNCP13#¥2,030201108-201701

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52120iNCP13#¥2,030201108-201701

75857COVER, ROCKER PANEL MOULDING, RH

main75857-52070¥1,040

75858COVER, ROCKER PANEL MOULDING, LH

main75857-52070¥1,040

75865EPROTECTOR, ROCKER PANEL MOULDING, RH

75866EPROTECTOR, ROCKER PANEL MOULDING, LH

75867BCLIP, ROCKER PANEL MOULDING

76085SPOILER SUB-ASSY, REAR

main76085-52190¥22,800

76865BRETAINER, REAR SPOILER

76872PROTECTOR, REAR SPOILER, NO.1

main76872-52110¥570

76873PROTECTOR, REAR SPOILER, NO.2

main76873-52140¥570

76874PROTECTOR, REAR SPOILER, NO.3

main76874-52090¥890

76875PROTECTOR, REAR SPOILER, NO.4

main76875-52040¥570

76893ACOVER, REAR SPOILER, RH

76894COVER, REAR SPOILER, LH

main76894-52040¥1,860

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-52110¥28,900

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-52110¥28,900

76924RETAINER, SIDE MUDGUARD, NO.2

main76924-12040¥110

76925DPROTECTOR, SIDE MUDGUARD, RH

76926DPROTECTOR, SIDE MUDGUARD, LH

76927APROTECTOR, SIDE MUDGUARD, REAR RH

76928APROTECTOR, SIDE MUDGUARD, REAR LH

9015960431

main90159-60431¥70

9015960498

main90159-60498¥70

9015960602

main90159-60602¥60

9017606050

main90176-06050¥110

9018906006

main90189-06006¥100

27 parts on this diagram · 2 diagrams in section
