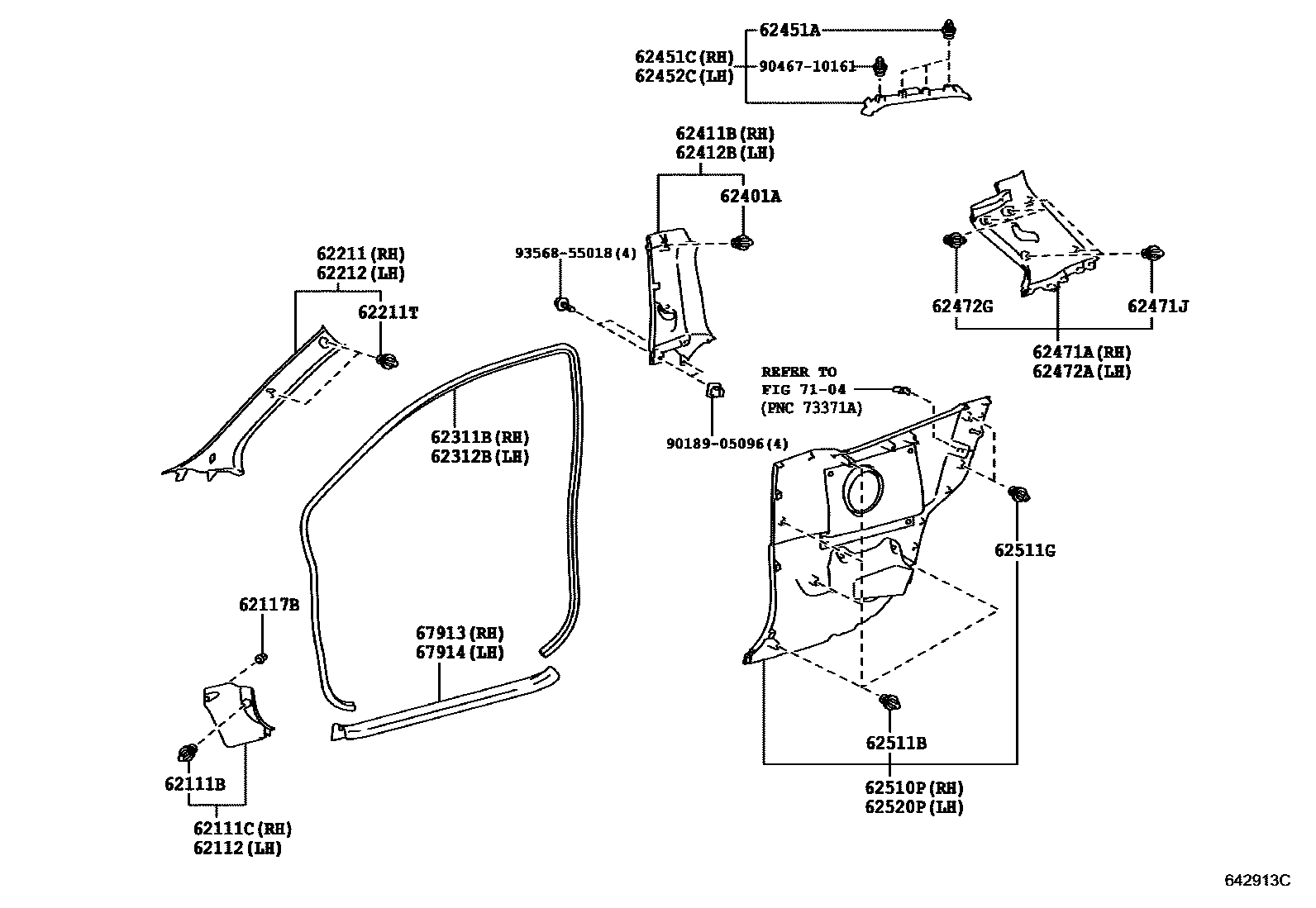

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1W(SRS CURTAIN SHIELD AIR BAG)0003 1 0004 1W(SRS CURTAIN SHIELD AIR BAG)

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iNCP13#201108-201701

62111CBOARD, COWL SIDE TRIM, RH

main62111-52190-C0iNCP13#201108-201407

BLACK,TRIM1#

main62111-52190-C0iNCP13#201407-201701

BLACK,TRIM2#,4#

main62111-52190-C0iNCP13#201701

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-52290-C0iNCP13#201407-201701

BLACK,TRIM2#,4#

main62112-52290-C0iNCP13#..RHD201108-201407

BLACK,TRIM1#

main62112-52290-C0iNCP13#201701

BLACK,TRIM2#

main62112-52300-C0iNCP13#..LHD201108-201407

BLACK,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iNCP13#201312-201701

main90467-06193-C0iNCP13#201108-201311

BLACK,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-52250-B0iNCP130;NCP131..ARL,GEN201108-201407

LT.GRAY,TRIM1#

main62211-52260-B0iNCP131..GCC201108-201407

LT.GRAY,TRIM1#

main62211-52260-B0iNCP131..GCC201108-201407

AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1#

main62211-52260-B0iNCP131..GCC201108-201407

AUDIO-CD & 6SPEAKER & BLUETOOTH,LT.GRAY,TRIM1#

main62211-52280-B0iNCP13#201407-201701

LT.GRAY,TRIM2#,4#

main62211-52280-B0iNCP13#201701

LT.GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iNCP13#..ARL201108-201407

SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-RADIO LESS & 6SPEAKER

main90467-10161iNCP131..ARL201108-201407

SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA & KNEE)

main90467-10161iNCP13#201407-201701

62212GARNISH, FRONT PILLAR, LH

main62212-52250-B0iNCP130;NCP131..ARL,GEN201108-201407

LT.GRAY,TRIM1#

main62212-52260-B0iNCP130..GCC201108-201407

LT.GRAY,TRIM1#

main62212-52260-B0iNCP131..GCC201108-201407

AUDIO-RADIO LESS & 6SPEAKER,LT.GRAY,TRIM1#

main62212-52260-B0iNCP131..GCC201108-201407

AUDIO-CD & 6SPEAKER & BLUETOOTH,LT.GRAY,TRIM1#

main62212-52280-B0iNCP13#201701

LT.GRAY,TRIM2#

main62212-52280-B0iNCP13#201407-201701

LT.GRAY,TRIM2#,4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52190iNCP13#..3D201108-201407

main62311-52200iNCP13#..5D201108-201209

sub62311-52230

main62311-52230iNCP13#..5D201210-201407

main62311-52240iNCP13#201407-201701

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52160iNCP13#..3D201108-201407

main62312-52170iNCP13#..5D201108-201209

sub62312-52190

main62312-52190iNCP13#..5D201210-201407

main62312-52200iNCP13#201407-201701

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iNCP13#201108-201701

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52181-B0iNCP13#..5D201108-201407

LT.GRAY,TRIM1#

main62411-52181-B0iNCP13#201701

LT.GRAY,TRIM2#

main62411-52181-B0iNCP13#201407-201701

LT.GRAY,TRIM2#,4#

main62411-52190-B0iNCP13#..3D201108-201407

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52171-B0iNCP13#201407-201701

LT.GRAY,TRIM2#,4#

main62412-52171-B0iNCP13#..5D201108-201407

LT.GRAY,TRIM1#

main62412-52171-B0iNCP13#201701

LT.GRAY,TRIM2#

main62412-52180-B0iNCP13#..3D201108-201407

LT.GRAY,TRIM1#

62451ACLIP, SIDE GARNISH

main90467-10167iNCP13#..3D201108-201407

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62451-52020-B0iNCP13#..3D201108-201407

LT.GRAY,TRIM1#

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62452-52020-B0iNCP13#..3D201108-201407

LT.GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52340-B0iNCP13#..5D201108-201407

LT.GRAY,TRIM1#

main62471-52360-B0iNCP13#201407-201701

LT.GRAY,TRIM2#,4#

main62471-52360-B0iNCP13#201701

LT.GRAY,TRIM2#

main62471-52380-B0iNCP13#..3D201108-201407

LT.GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09236iNCP13#201108-201701

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52410-B0iNCP13#..5D201108-201407

LT.GRAY,TRIM1#

main62472-52420-B0iNCP13#201407-201701

LT.GRAY,TRIM2#,4#

main62472-52420-B0iNCP13#201701

LT.GRAY,TRIM2#

main62472-52430-B0iNCP13#..3D201108-201407

LT.GRAY,TRIM1#

62472GCLIP (FOR ROOF SIDE GARNISH)

main63395-12150iNCP13#..5D201108-201701

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-52120-C0iNCP13#..3D201108-201407

BLACK,TRIM1#

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-10161iNCP13#..3D201108-201407

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-09236iNCP13#..3D201108-201407

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-52090-C0iNCP13#..3D201108-201407

BLACK,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-52180-C0iNCP13#..5D201108-201407

BLACK,TRIM1#

main67913-52190-C0iNCP13#..3D201108-201407

BLACK,TRIM1#

main67913-52260-C0iNCP13#201407-201701

BLACK,TRIM2#,4#

main67913-52260-C0iNCP13#201701

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-52200-C0iNCP13#..5D201108-201407

BLACK,TRIM1#

main67914-52210-C0iNCP13#..3D201108-201407

BLACK,TRIM1#

main67914-52290-C0iNCP13#201407-201701

BLACK,TRIM2#,4#

main67914-52290-C0iNCP13#201701

BLACK,TRIM2#

7104

9018905096

main90189-05096

9046710161

main90467-10161

9356855018

main93568-55018

29 parts on this diagram · 4 diagrams in section
