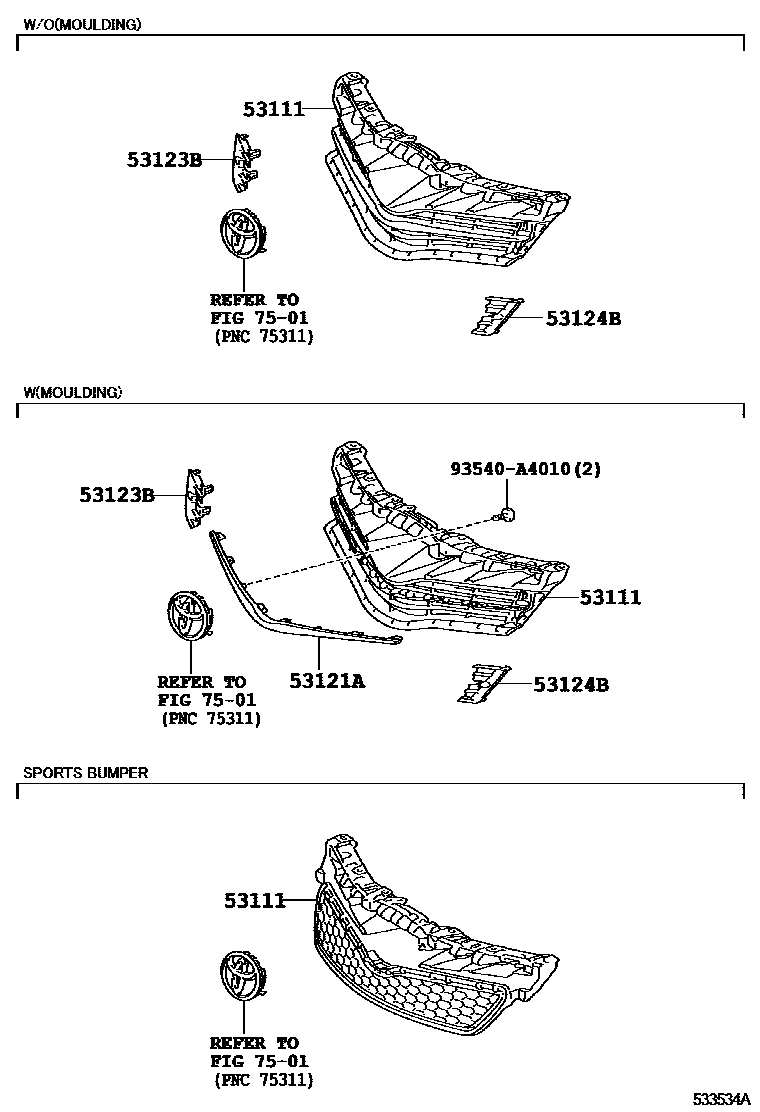

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53111-52500iNCP13#..GCC201108-201407

NO PAINT REQ.

main53111-52620iNCP13#..GCC201209-201407

NO PAINT REQ.

main53111-52680iNCP13#201407-201701

NO PAINT REQ.

main53111-52790iNCP13#201701

NO PAINT REQ.

53121AMOULDING, RADIATOR GRILLE

main53121-52130iNCP13#..GCC201209-201407

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-52030iNCP13#201108-201407

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-52030iNCP13#201108-201407

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

93540A4010

main93540-A4010

6 parts on this diagram · 3 diagrams in section
