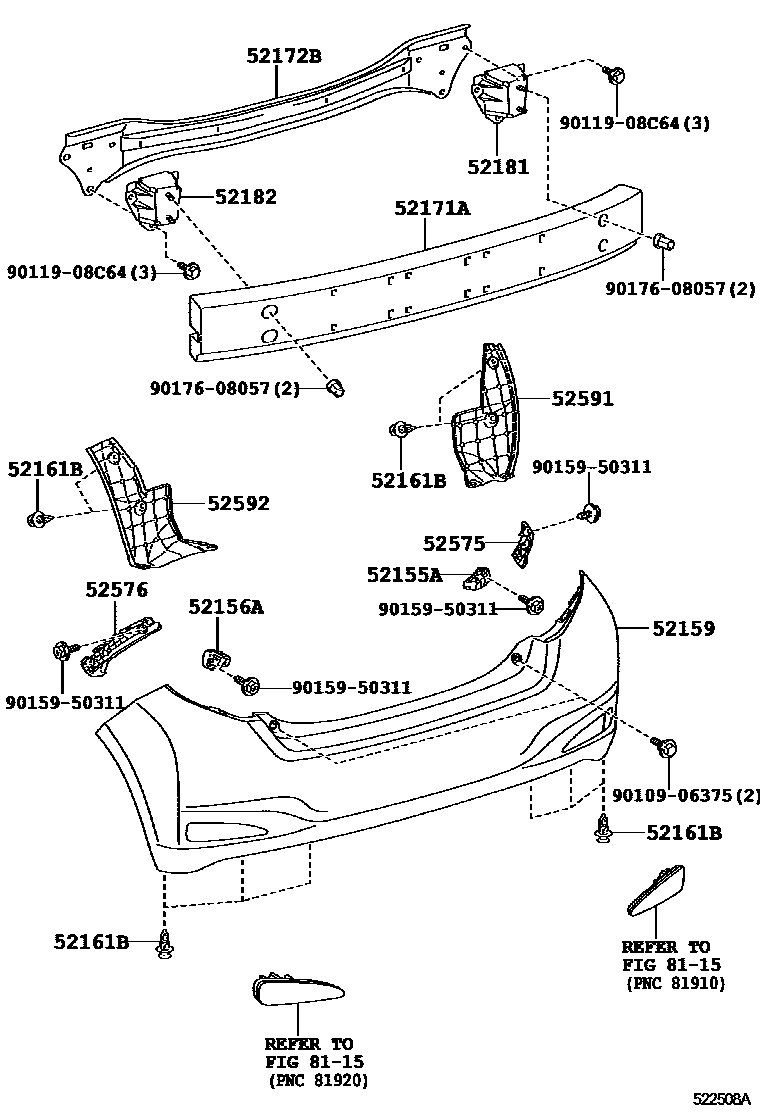

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1S PACKAGE 0005 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52120iNCP13#201108-201407

main52155-52150iNCP13#201701

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52120iNCP13#201108-201407

main52156-52150iNCP13#201701

52159COVER, REAR BUMPER

main52159-52957iNCP13#..ARL,GEN201108-201407

PAINT REQ.

main52159-52966iNCP13#..GCC201108-201407

PAINT REQ.

main52159-52983iNCP13#201701-202001

main52159-52967iNCP131..5D..GEN;NCP131..3D..5F..ARL201108-201407

PAINT REQ.,S PACKAGE

52161BPIECE, REAR BUMPER

main52161-16010×10iNCP131201407-201701

S PACKAGE

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-52090iNCP13#..GCC201108-201407

main52023-52150iNCP131..5D..GEN;NCP131..3D..5F..ARL201108-201407

S PACKAGE

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-52020iNCP13#..ARL,GCC201108-201407

S PACKAGE

52181ARM, REAR BUMPER, RH

main52181-52160iNCP13#..GCC201108-201407

52182ARM, REAR BUMPER, LH

main52182-52160iNCP13#..GCC201108-201407

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52170iNCP13#201108-201111

main52575-52171iNCP13#201112-201407

main52575-52210iNCP13#201701

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52150iNCP13#201108-201111

main52576-52151iNCP13#201112-201407

main52576-52190iNCP13#201701

52591SEAL, REAR BUMPER SIDE, RH

main52591-52300iNCP13#201108-201407

main52591-52380iNCP13#201701

main52591-52320iNCP131..5D..GEN;NCP131..3D..5F..ARL201108-201407

S PACKAGE

52592SEAL, REAR BUMPER SIDE, LH

main52592-52290iNCP13#201108-201407

main52592-52370iNCP13#201701

main52592-52310iNCP131201407-201701

S PACKAGE

8115

9010906375

main90109-06375

9011908C64

main90119-08C64

9015950311

main90159-50311

9017608057

main90176-08057

17 parts on this diagram · 4 diagrams in section
