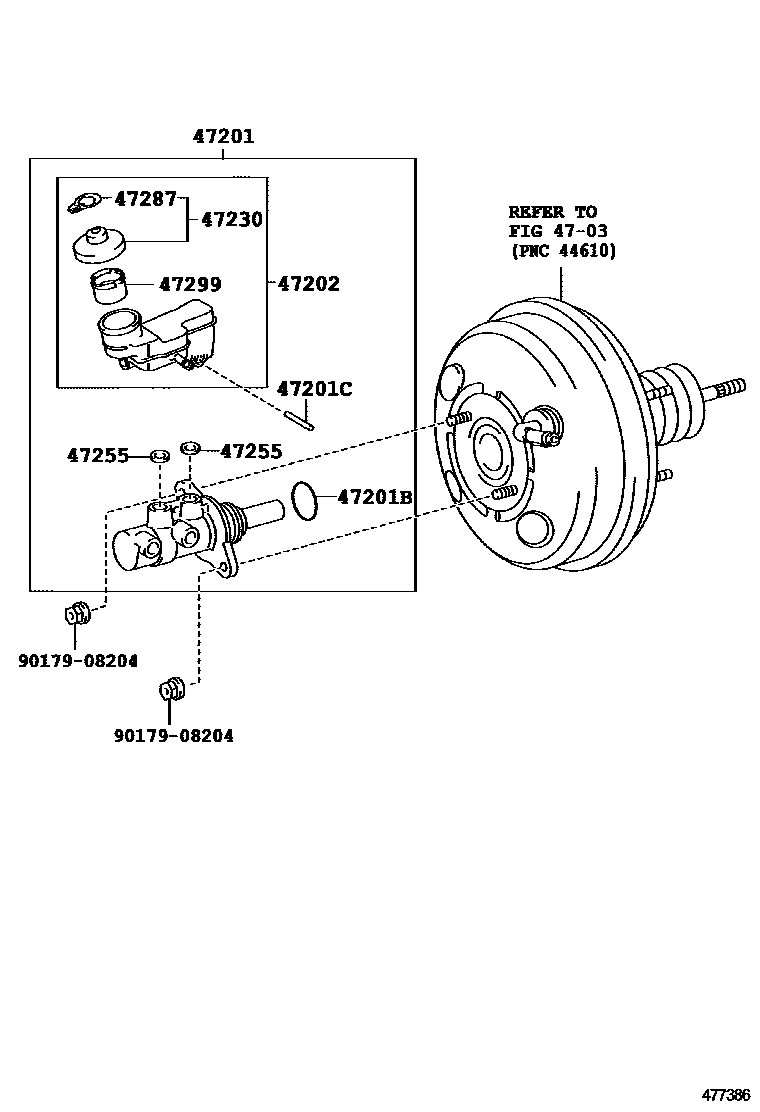

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52580iNCP130..RHD..GEN201108-201407

main47201-52590iNCP13#..ARL201108-201407

main47201-52610iNCP13#..LHD..5F201108-201407

main47201-52630iNCP13#..LHD..4FC201108-201407

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNCP13#201108-201407

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNCP13#201108-201407

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52260iNCP13#201407-201701

main47220-52270iNCP13#..LHD..4FC201108-201407

main47220-52280iNCP13#..LHD..5F201108-201407

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP13#201108-201407

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iNCP13#201108-201407

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP13#201108-201407

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNCP13#201108-201407

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
