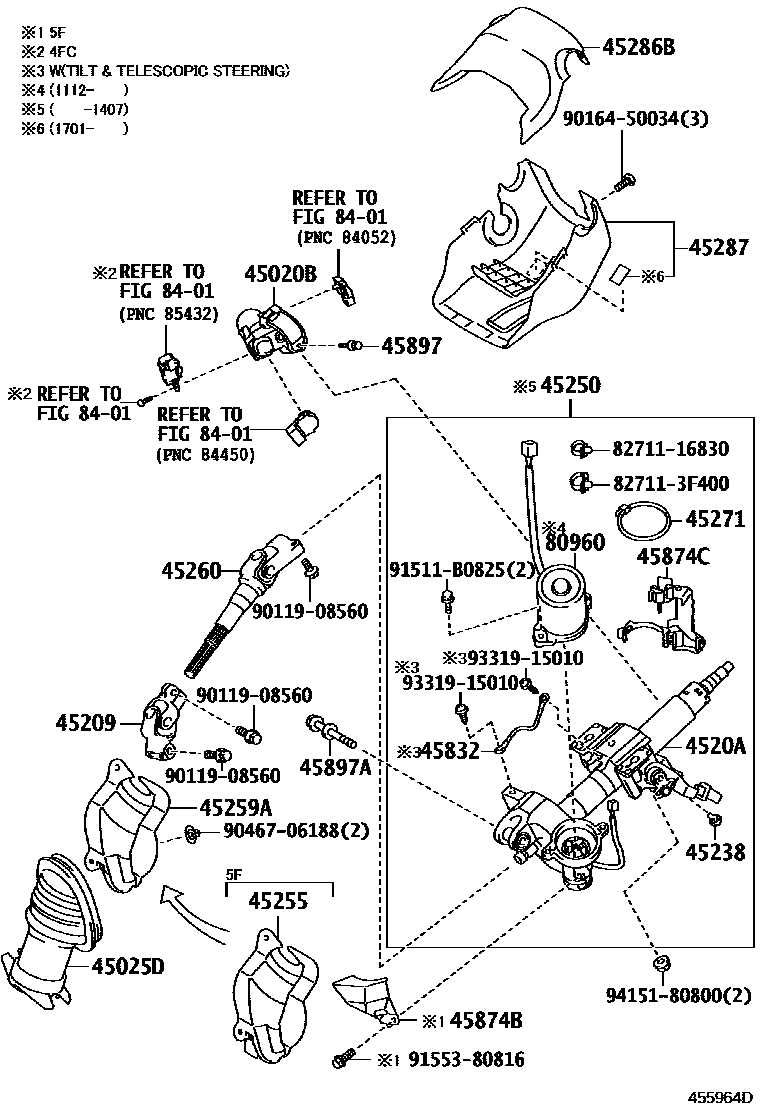

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45209YOKE SUB-ASSY, STEERING SLIDING
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
STEERING COLUMN-TILT(EPS)
STEERING COLUMN-TILT(EPS)
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
STEERING COLUMN-TILT(EPS)
STEERING COLUMN-TILT & TELESCO(EPS)
STEERING COLUMN-TILT & TELESCO(EPS)
45255PLATE, STEERING COLUMN HOLE COVER
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#
BLACK,TRIM1#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#
BLACK,TRIM1#
45832CABLE, TILT STEERING SUPPORT BOND
45874BPROTECTOR, STEERING COLUMN, NO.1
45874CPROTECTOR, STEERING COLUMN, NO.1
45897BOLT, STEERING LOCK SET
80960MOTOR ASSY, POWER STEERING
8401
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F400
9011908560
main90119-08560
9016450034
main90164-50034
9046706188
main90467-06188
91511B0825
main91511-B0825
9155380816
main91553-80816
9331915010
main93319-15010
9415180800
main94151-80800
28 parts on this diagram · 2 diagrams in section
