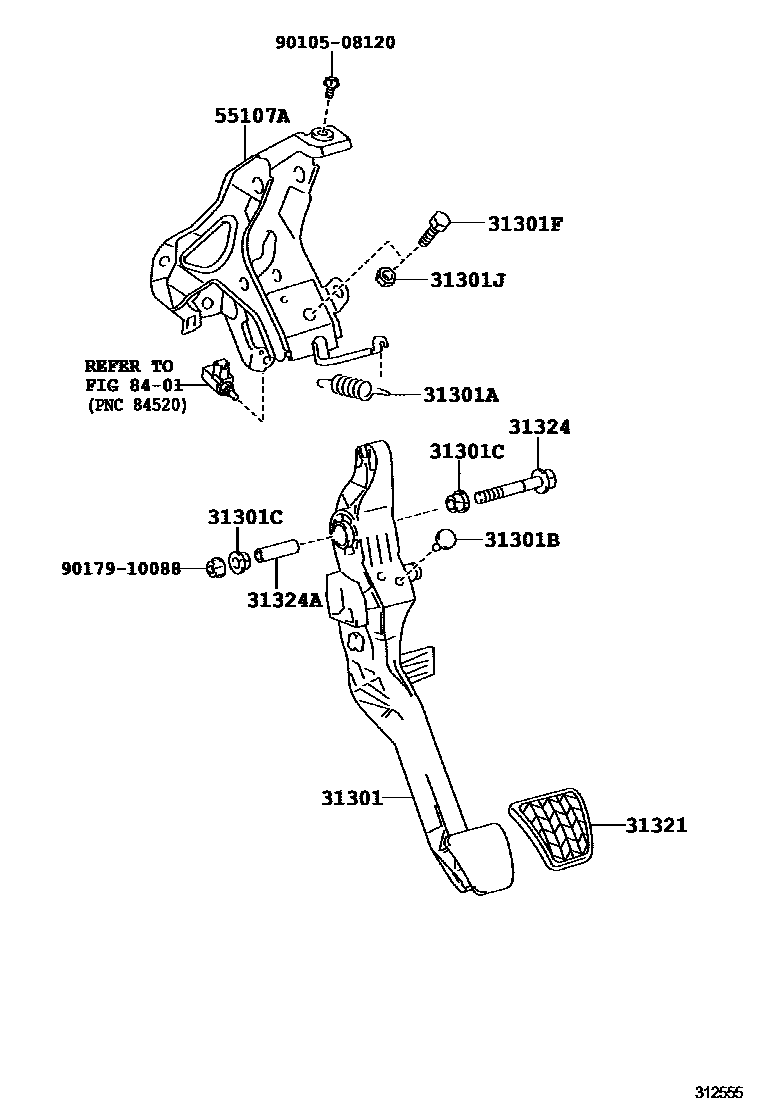

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52150iNCP130..5F201108-202001

main31301-52160iNCP131..5F201108-202001

main31311-52050iNCP13#..LHD..5F201108-201407

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP13#..LHD..5F201108-201407

main90507-14055iNCP13#..5F201108-201701

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP13#..5F201108-202001

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP13#..5F201108-202001

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNCP13#..LHD..5F201108-201407

main91112-61025iNCP13#..RHD..5F201108-202001

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iNCP13#..RHD..5F201108-202001

main94130-61000iNCP13#..LHD..5F201108-201407

31321PAD, CLUTCH PEDAL

main31321-52010iNCP13#..5F201108-201501

main31321-52020iNCP13#..5F201502-202001

31324SHAFT, CLUTCH PEDAL

main90105-10444iNCP13#..RHD..5F201108-202001

main90105-10563iNCP13#..LHD..5F201108-201407

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNCP13#..5F201108-202001

main90387-10004iNCP13#..LHD..5F201108-201407

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52210iNCP130..LHD..5F201108-201407

main55107-52220iNCP131..5F..GEN201108-201407

main55107-52240iNCP13#..RHD..5F201108-202001

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508120

main90105-08120

9017910088

main90179-10088

13 parts on this diagram · 4 diagrams in section
