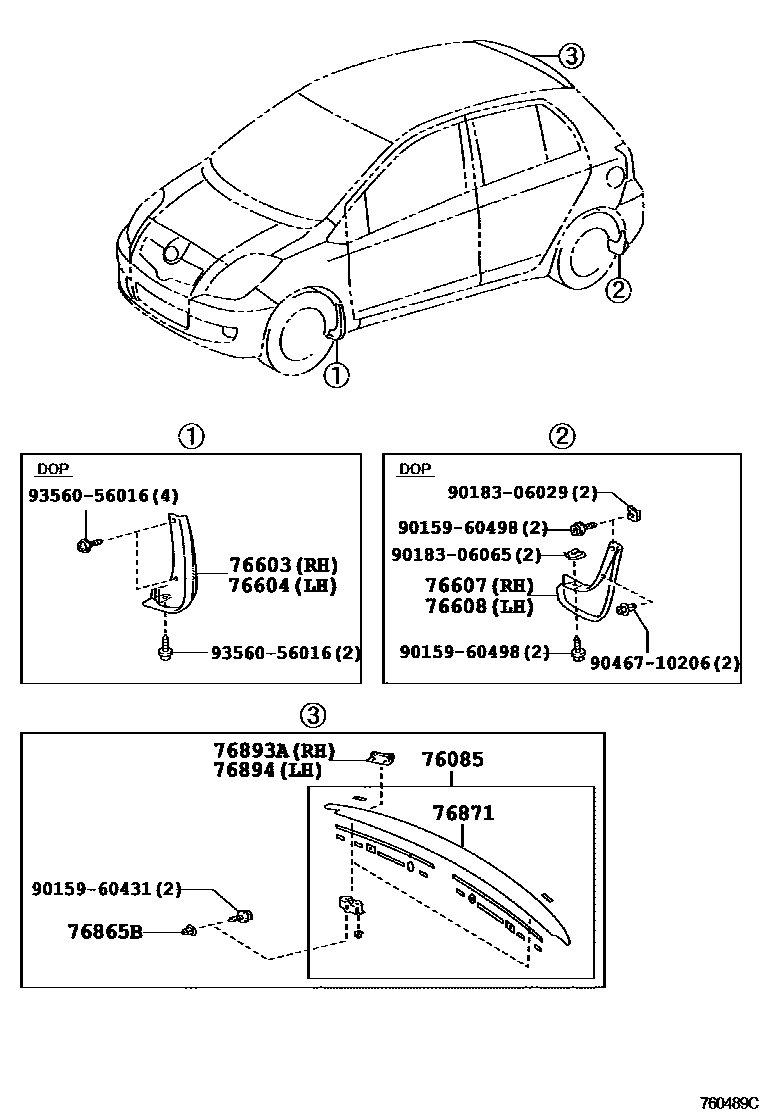

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
MUD GUARD-WITH(FRONT & REAR)
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
NO PAINT REQ.,MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK
NO PAINT REQ.,MUD GUARD-WITH(FRONT & REAR)
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
NO PAINT REQ.,MUD GUARD-WITH(FRONT&REAR),PIGMENTATION BLACK
NO PAINT REQ.,MUD GUARD-WITH(FRONT & REAR)
76865BRETAINER, REAR SPOILER
REAR SPOILER-WITH
76871SPOILER, REAR
76893ACOVER, REAR SPOILER, RH
REAR SPOILER-WITH,WHITE,068
REAR SPOILER-WITH,WHITE PEARL CS.,070
REAR SPOILER-WITH,SUPER WHITE 2,040
REAR SPOILER-WITH,MEDIUM SILVER ME.,1F8
REAR SPOILER-WITH,SILVER M.M.,1E7
REAR SPOILER-WITH,SILVER ME.,1F7
REAR SPOILER-WITH,BLACK MC.,209
REAR SPOILER-WITH,SUPER RED 5,3P0
REAR SPOILER-WITH,DARK RED MC.,3Q8
REAR SPOILER-WITH,SILKY GOLD M.M.,5A7
REAR SPOILER-WITH,TURQUOISE ME.,777
REAR SPOILER-WITH,BLUE M.M.,8T0
76894COVER, REAR SPOILER, LH
REAR SPOILER-WITH,WHITE,068
REAR SPOILER-WITH,WHITE PEARL CS.,070
REAR SPOILER-WITH,SUPER WHITE 2,040
REAR SPOILER-WITH,MEDIUM SILVER ME.,1F8
REAR SPOILER-WITH,SILVER M.M.,1E7
REAR SPOILER-WITH,SILVER ME.,1F7
REAR SPOILER-WITH,BLACK MC.,209
REAR SPOILER-WITH,SUPER RED 5,3P0
REAR SPOILER-WITH,DARK RED MC.,3Q8
REAR SPOILER-WITH,SILKY GOLD M.M.,5A7
REAR SPOILER-WITH,TURQUOISE ME.,777
REAR SPOILER-WITH,BLUE M.M.,8T0
9015960431
main90159-60431
9015960498
main90159-60498
9018306029
main90183-06029
9018306065
main90183-06065
9046710206
main90467-10206
9356056016
main93560-56016
15 parts on this diagram · 1 diagram in section
