E
EPC Data

FRONT SEAT & SEAT TRACK

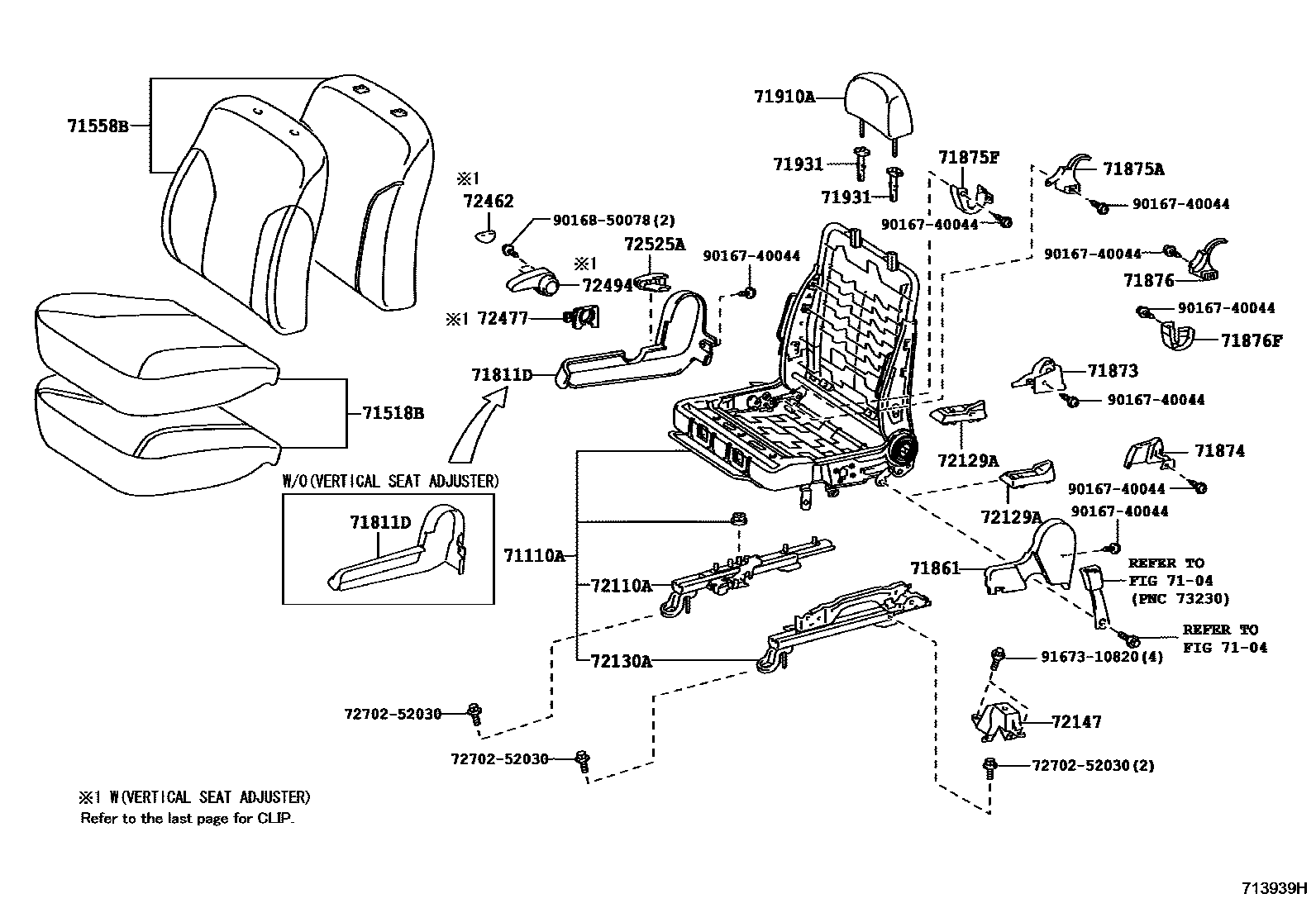

Parts diagram
7104
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-52190i200508-201001
sub71110-52192
main71110-52192i201002-201108
main71110-52200i200508-201001
SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub71110-52202
main71110-52200i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub71110-52202
main71110-52200i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub71110-52202
main71110-52200i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub71110-52202
main71110-52200i200508-201001
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub71110-52202
main71110-52200i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub71110-52202
main71110-52200i200808-201001
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub71110-52202
main71110-52200i200808-201001
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE
sub71110-52202
main71110-52200i200808-201001
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE
sub71110-52202
main71110-52200i200808-201001
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub71110-52202
main71110-52200i200808-201001
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE
sub71110-52202
main71110-52200i200808-201001
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE
sub71110-52202
main71110-52202i201002-201108
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main71110-52202i201002-201108
SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main71110-52202i201002-201108
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main71110-52280i200508-201001
sub71110-52282
main71110-52282i201002-201108
71518BPAD, FRONT SEAT CUSHION W/COVER, RH
main71518-52A40-C0i200508-200808
BLACK,TRIM1#
sub71518-52A70
main71518-52E70-C0i200508-200808
BLACK,TRIM1#
sub71518-52E80
main71518-52M50-B1i200808-201107
DARK GRAY,TRIM1#
sub71518-52M70
main71518-52M90-B1i200808-201107
DARK GRAY,TRIM1#
sub71518-52N00
main71518-52N30-B1i200808-201107
DARK GRAY,TRIM1#
sub71518-52N40
main71518-52R20-B1i200808-201107
DARK GRAY,TRIM1#
sub71518-52R30
main71518-5C270-C0i200508-200808
BLACK,TRIM1#
sub71518-52A60
main71518-5D040-C0i200508-200808
BLACK,TRIM1#
sub71518-52B20
main71518-5D220-C0i200508-200808
BLACK,TRIM1#
sub71518-52A50
71558BPAD, FRONT SEATBACK W/COVER, RH
main71558-52C10-C1i200508-200808
BLACK,TRIM1#
main71558-52R90-B1i200808-201107
DARK GRAY,TRIM1#
sub71558-52P20
main71558-52S30-B1i200808-201107
DARK GRAY,TRIM1#
sub71558-52P00
main71558-5C840-C2i200508-200702
BLACK,TRIM1#,*104 TYPE E:REF ILL.
main71558-5C840-C2i200508-200702
HONG KONG SPEC&,BLACK,TRIM1#,*104 TYPE E:REF ILL.
main71558-5C840-C2i200508-200808
BLACK,TRIM1#
main71558-5C840-C2i200508-200702
HONG KONG SPEC,BLACK,TRIM1#,*104 TYPE E:REF ILL.
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-52200-B2i200508-200808
DK.GRAY,TRIM18,19
main71811-52200-B2i200508-201107
DK.GRAY,TRIM1#
main71811-52210-B0i200508-201107
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71811-52210-B0i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71811-52210-B0i200508-201107
DK.GRAY,TRIM1#
main71811-52210-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71811-52210-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71811-52210-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71811-52210-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71811-52210-B0i200808-201107
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71811-52210-B0i200808-201107
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-52190-B2i200508-201107
DK.GRAY,TRIM1#
main71861-52190-B2i200508-200808
DK.GRAY,TRIM18,19
main71861-52200-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
sub71861-52200
main71861-52200-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
sub71861-52200
main71861-52200-B0i200508-201107
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub71861-52200
main71861-52200-B0i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
sub71861-52200
main71861-52200-B0i200508-201107
DK.GRAY,TRIM1#
sub71861-52200
main71861-52200-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub71861-52200
main71861-52200-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub71861-52200
main71861-52200-B0i200808-201107
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub71861-52200
main71861-52200-B0i200808-201107
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub71861-52200
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-52210-B0i200508-201107
DK.GRAY,TRIM1#
main71873-52220-B0i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71873-52220-B0i200508-201107
DK.GRAY,TRIM1#
main71873-52220-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71873-52220-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71873-52220-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71873-52220-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71873-52220-B0i200508-201107
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71873-52220-B0i200808-201107
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71873-52220-B0i200808-201107
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-52200-B0i200508-201107
DK.GRAY,TRIM1#
main71874-52210-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71874-52210-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71874-52210-B0i200508-201107
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71874-52210-B0i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71874-52210-B0i200508-201107
DK.GRAY,TRIM1#
main71874-52210-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71874-52210-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main71874-52210-B0i200808-201107
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main71874-52210-B0i200808-201107
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52090-B0i200508-200808
DK.GRAY,TRIM18,19
sub71875-52090
main71875-52090-B0i200508-201107
DK.GRAY,TRIM1#
sub71875-52090
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-52170-B0i200508-200808
DK.GRAY,TRIM18,19
main71875-52170-B0i200508-201107
DK.GRAY,TRIM1#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-52090-B0i200508-201107
DK.GRAY,TRIM1#
sub71876-52090
main71876-52090-B0i200508-200808
DK.GRAY,TRIM18,19
sub71876-52090
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-52160-B0i200508-201107
DK.GRAY,TRIM1#
main71876-52160-B0i200508-200808
DK.GRAY,TRIM18,19
71910AHEADREST ASSY, FRONT SEAT
main71910-52490-C0i200508-200808
BLACK,TRIM1#
sub71910-52490
main71910-52670-C0i200808-201107
BLACK,TRIM1#
sub71910-52670
main71910-52671-C0i201010-201105
BLACK,TRIM1#
sub71910-52670
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-B0i200705-201107
W(LOCK),DK.GRAY,TRIM1#
sub71930-44020
sub71930-02370
main71930-47010-B2i200508-200704
W(LOCK),DK.GRAY,TRIM1#
sub71930-47010
sub71930-44020
main71931-47010-B2i200508-201107
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-47010
sub71931-42020
72110ATRACK ASSY, FRONT SEAT, OUTER RH
main72110-52020i200508-201001
sub72110-52021
main72110-52021i201002-201108
main72110-52070i200708-200804
sub72110-52071
main72110-52090i200508-201001
sub72110-52091
main72110-52091i201002-201108
main72110-52150i200708-200804
sub72110-52091
72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2
main72129-52030i200508-201107
72130ATRACK ASSY, FRONT SEAT, INNER RH
main72130-52100i200508-201001
sub72130-52102
main72130-52102i201002-201108
main72130-52140i200508-201001
sub72130-52142
main72130-52142i201002-201108
main72130-52170i200508-201001
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub72130-52172
main72130-52170i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub72130-52172
main72130-52170i200508-201001
SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub72130-52172
main72130-52170i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub72130-52172
main72130-52170i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub72130-52172
main72130-52170i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub72130-52172
main72130-52170i200808-201001
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub72130-52172
main72130-52170i200808-201001
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE
sub72130-52172
main72130-52170i200808-201001
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE
sub72130-52172
main72130-52170i200808-201001
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub72130-52172
main72130-52170i200808-201001
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE
sub72130-52172
main72130-52170i200808-201001
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE
sub72130-52172
main72130-52172i201002-201108
SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main72130-52172i201002-201108
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main72130-52172i201002-201108
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main72130-52230i200708-200804
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub72130-52231
main72130-52230i200708-200804
SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub72130-52231
main72130-52230i200708-200804
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub72130-52231
main72130-52230i200708-200804
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub72130-52231
main72130-52230i200708-200804
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
sub72130-52231
main72130-52230i200708-200804
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
sub72130-52231
main72130-52250i200708-200804
sub72130-52251
main72130-52280i200708-200804
sub72130-52142
72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
main72147-52020i200508-200808
sub72147-52060
72462COVER, VERTICAL ADJUSTER RH
main72462-58010-B0i200508-201107
DK.GRAY,TRIM1#
sub72462-58010
main72462-58010-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub72462-58010
main72462-58010-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
sub72462-58010
main72462-58010-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub72462-58010
main72462-58010-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
sub72462-58010
main72462-58010-B0i200508-201107
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub72462-58010
main72462-58010-B0i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
sub72462-58010
main72462-58010-B0i200808-201107
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub72462-58010
main72462-58010-B0i200808-201107
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
sub72462-58010
72477SPACER, VERTICAL ADJUSTER
main72477-58010i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main72477-58010i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main72477-58010i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
main72477-58010i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
main72477-58010i200508-201107
SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main72477-58010i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)
main72477-58010i200808-201107
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
main72477-58010i200808-201107
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-52020-B0i200508-200808
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main72494-52020-B0i200808-201107
WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main72494-52020-B0i200808-201107
HONG KONG SPEC&WITH(PACKAGE TRAY & PARCEL SHELF)&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main72494-52020-B0i200508-201107
DK.GRAY,TRIM1#
main72494-52020-B0i200508-201107
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main72494-52020-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main72494-52020-B0i200508-200808
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
main72494-52020-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#
main72494-52020-B0i200508-200808
HONG KONG SPEC&&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-58030-B0i200508-200808
DK.GRAY,TRIM18,19
sub72525-58030
main72525-58030-B0i200508-201107
DK.GRAY,TRIM1#
sub72525-58030
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
9016740044
main90167-40044
9016850078
main90168-50078
9167310820
main91673-10820

26 parts on this diagram · 17 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
