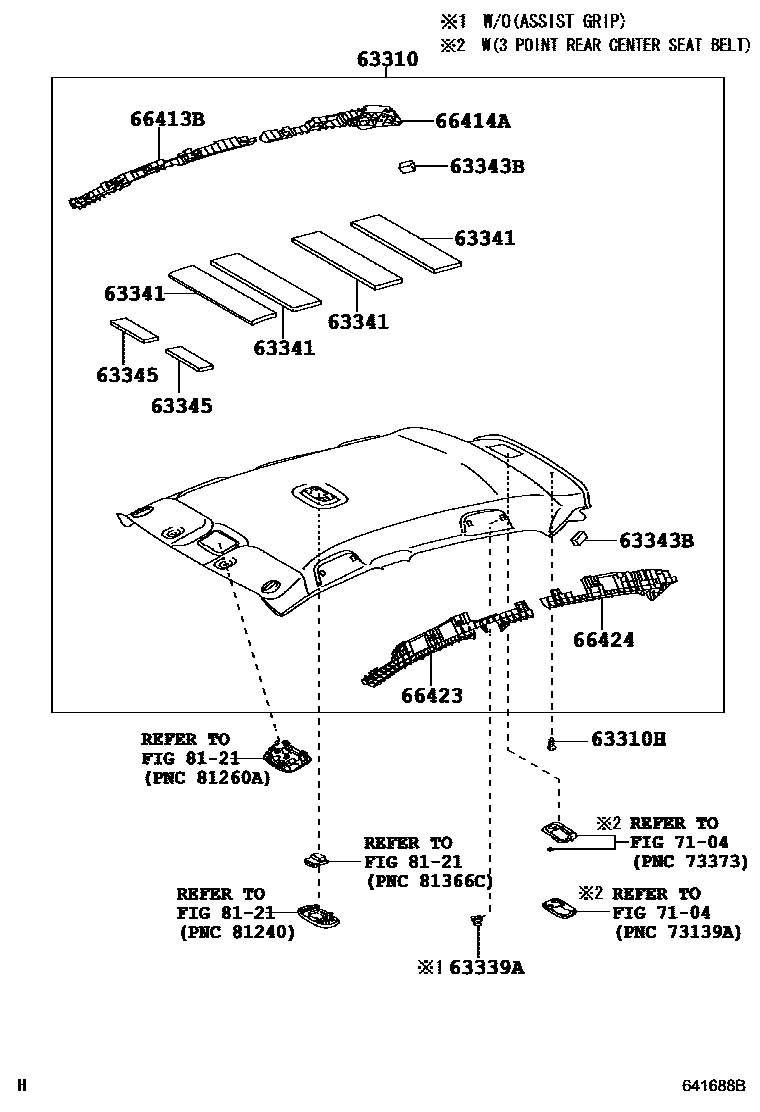

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
GRAY,TRIM1#
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#
sub63310-52530
HONG KONG SPEC,GRAY,TRIM1#
sub63310-52530
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#
sub63310-52530
GRAY,TRIM1#
sub63310-52530
GRAY,TRIM1#
sub63310-52540
GRAY,TRIM1#
sub63310-52550
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#
sub63310-52550
63310HCLIP(FOR ROOF HEADLINING)
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE,LT.GRAY,TRIM1#
HONG KONG SPEC&SRS AIR BAG-DRIVER+PASSENGER+SIDE+CURTAIN+KNEE,LT.GRAY,TRIM1#
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,LT.GRAY,TRIM1#
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,LT.GRAY,TRIM1#
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM18,19
HONG KONG SPEC&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM18,19
HONG KONG SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM18,19
SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM18,19
SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GRAY,TRIM18,19
63339ACOVER, ROOF HEADLINING SERVICE HOLE
ASSIST GRIP-FR-1,RR-2,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
ASSIST GRIP-FR-1,RR-2,GRAY,TRIM1#
GRAY,TRIM1#
ASSIST GRIP-FR-1,RR-2,GRAY,TRIM18,19
63341PAD, ROOF SILENCER, NO.1
63343BPAD, ROOF SILENCER, REAR
63345PAD, ROOF SILENCER, NO.5
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
66423SPACER, SIDE RAIL, FRONT LH
66424SPACER, SIDE RAIL, REAR LH
7104
8121
12 parts on this diagram · 2 diagrams in section
