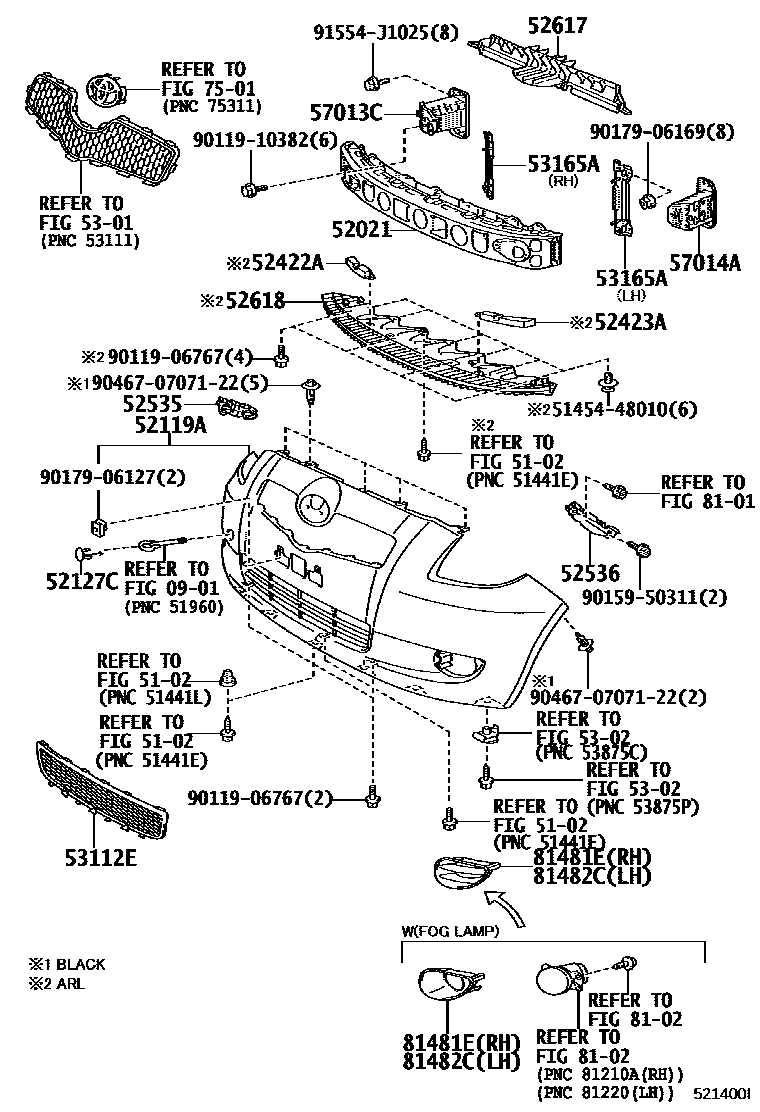

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

0901

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-52050iNCP9#..ARL,GEN200508-201107

52119ACOVER, FRONT BUMPER

main52119-52922iNCP9#..ARL,GEN200508-200808

PAINT REQ.

main52119-52925iNCP90..GCC200508-200808

PAINT REQ.

main52119-52946iNCP9#..ARL,GEN200808-201107

PAINT REQ.

sub52119-5C985

sub90179-06127

main52119-52961iNCP9#..GCC200808-201107

PAINT REQ.

52127CCOVER, FRONT BUMPER HOLE

main52127-52907iNCP9#..ARL,GEN200508-200808

main52127-52909iNCP90..GCC200508-200808

main52127-52925iNCP9#200808-201107

52422APAD, FRONT BUMPER, RH

main52422-52010iNCP9#..ARL200508-200808

52423APAD, FRONT BUMPER, LH

main52423-52010iNCP9#..ARL200508-200808

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52060iNCP9#200508-201108

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52050iNCP9#200508-201107

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-52020iNCP9#200508-201107

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52010iNCP9#..ARL200508-200808

main52618-52030iNCP9#..ARL200808

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-52160iNCP9#..ARL,GEN200508-200808

NO PAINT REQ.

main53112-52180iNCP90..GCC200508-200808

NO PAINT REQ.

main53112-52310iNCP9#200808-201108

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52010iNCP9#..ARL,GEN200508-201011

RH

main53164-52020iNCP90..GCC200508-201107

RH

main53164-52060iNCP9#..ARL,GEN201011-201107

main53165-52020iNCP9#..ARL,GEN200508-201011

LH

sub53164-52060

main53165-52030iNCP90..GCC200508-201107

LH

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52010iNCP9#..ARL,GEN200508-201107

sub57013-52011

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52010iNCP9#..ARL,GEN200508-201107

7501

8101

8102

81481ECOVER, FOG LAMP, RH

main81481-52110iNCP9#200508-200808

main81481-52150iNCP9#..ARL,GCC;NCP90..LHD..GEN200508-200808

FRONT FOG LAMP-WITH

main81481-52320iNCP9#200808-201107

main81481-52330iNCP91;NCP90..ARL,GCC;NCP90..LHD..GEN200808-201107

FRONT FOG & DRIVING LAMP-WITH

81482CCOVER, FOG LAMP, LH

main81482-52100iNCP9#200508-200808

main81482-52110iNCP9#..ARL,GCC;NCP90..LHD..GEN200508-200808

FRONT FOG LAMP-WITH

main81482-52250iNCP9#200808-201107

main81482-52260iNCP91;NCP90..ARL,GCC;NCP90..LHD..GEN200808-201107

FRONT FOG & DRIVING LAMP-WITH

5145448010CLIP

main51454-48010

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9017906127

main90179-06127

9017906169

main90179-06169

904670707122

main90467-0707122

91554J1025

main91554-J1025

30 parts on this diagram · 6 diagrams in section
