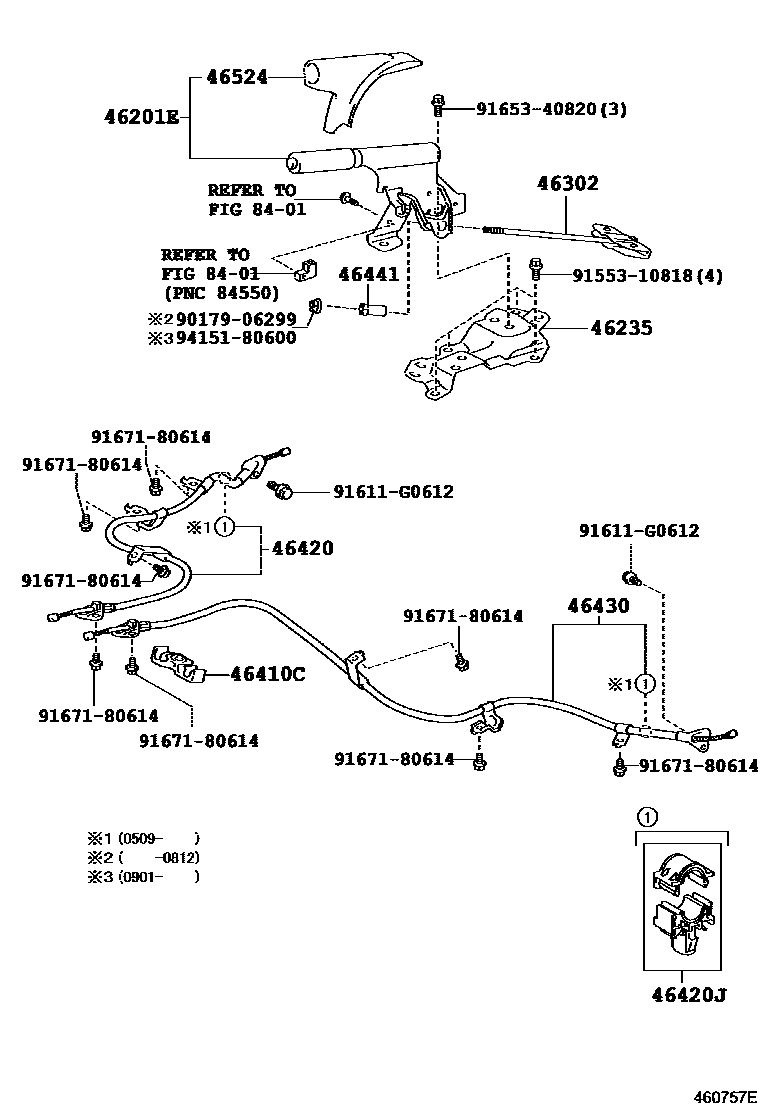

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52070-B0iNCP9#200508-200808

DK.GRAY,TRIM18,19

main46201-52080-B0iNCP91..ARL,GCC200808-201107

DK.GRAY,TRIM1#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-52020iNCP9#200508-200808

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-52030iNCP9#200508-200808

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iNCP9#200508-200808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52150iNCP9#200508-200509

main46420-52151iNCP9#200509-200808

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52010×2iNCP9#200509-200706

main46402-52030×2iNCP9#200707-200808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52150iNCP9#200508-200509

main46430-52151iNCP9#200509-200808

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP9#200508-200808

46524COVER, PARKING BRAKE DUST

main46524-52020iNCP9#200508-200808

8401

9017906299

main90179-06299

9155310818

main91553-10818

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
