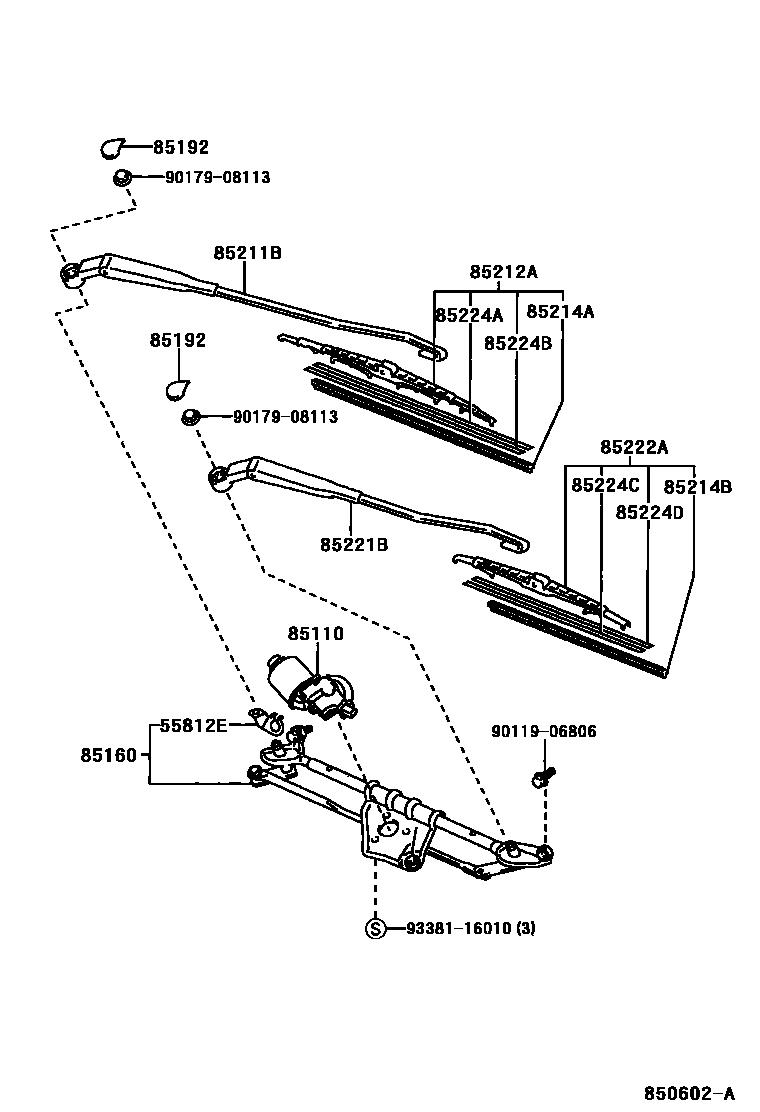

WINDSHIELD WIPER

0001 1 0002 1

55812EBRACKET, COWL VENTILATOR

main55812-52030iNCP1#,SCP10..RHD199903-200212

main55812-52040iNCP10..LHD200212

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52020iNCP10,SCP10..RHD..GEN200212

sub85110-52030

main85110-52050iNCP1#..ARL200212

main85110-52060iNCP10..LHD199908-200212

85160LINK ASSY, WINDSHIELD WIPER

main85150-52010iNCP10..LHD199908-200212

main85150-52020iNCP10,SCP10..RHD..GEN200212

main85150-52030iNCP1#..ARL200212

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iNCP1#,SCP10199903-200212

85211BARM, FRONT WIPER, RH

main85211-52020iNCP10,SCP10..RHD..GEN199903-200212

main85211-52040iNCP1#..ARL200212

main85211-52050iNCP10..LHD200212

85212ABLADE, FR WIPER, RH

main85212-26060iNCP10,SCP10..RHD..GEN200207-200212

sub85212-36040

main85212-52010iNCP10..LHD199908-200212

sub85212-52011

main85212-52020iNCP10,SCP10..RHD..GEN199903-200207

main85212-52040iNCP10,SCP10..RHD..GEN200312-200508

sub85212-52041

main85212-52050iNCP1#..ARL200212-200508

sub85212-46010

85214ARUBBER, WIPER, RH

main85214-20280iNCP10,SCP10..RHD..GEN200212-200312

sub85214-48031

main85214-22410iNCP1#..ARL200106-200212

main85214-33110iNCP1#..ARL199908-200106

main85214-44080iNCP10..LHD199908-200212

main85214-48010iNCP1#..ARL200212-200508

main85214-48030iNCP10,SCP10..RHD..GEN200312-200508

sub85214-48031

main85214-68010iNCP10..LHD200312-200508

sub85214-68011

85214BRUBBER, WIPER, LH

main85214-20280iNCP10..LHD199908-200212

sub85214-48031

main85214-44080iNCP1#,SCP10..RHD200212-200312

main85214-48030iNCP10..LHD200312-200508

sub85214-48031

main85214-68010iNCP1#,SCP10..RHD200312-200508

sub85214-68011

85221BARM, FRONT WIPER, LH

main85221-52020iNCP10,SCP10..RHD..GEN200212

main85221-52040iNCP1#..ARL200212

main85221-52050iNCP10..LHD199908-200212

85222ABLADE, FR WIPER, LH

main85222-26060iNCP10..LHD200312-200508

main85222-52020iNCP1#,SCP10..RHD199903-200212

main85222-52030iNCP10..LHD200212-200312

sub85222-33160

main85222-52140iNCP1#,SCP10..RHD200312-200508

sub85222-52141

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-20280iNCP10,SCP10..RHD..GEN199903-200212

main85224-33040iNCP1#..ARL199908-200212

main85224-44031iNCP10..LHD199908-200212

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-20280iNCP10,SCP10..RHD..GEN199903-200212

main85224-33040iNCP1#..ARL199908-200212

main85224-44031iNCP10..LHD199908-200212

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20280iNCP10..LHD199908-200212

main85224-44070iNCP1#,SCP10..RHD199903-200212

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20280iNCP10..LHD199908-200212

main85224-44070iNCP1#,SCP10..RHD199903-200212

9011906806

main90119-06806

9017908113

main90179-08113

9338116010

main93381-16010

17 parts on this diagram · 2 diagrams in section
