MUDGUARD & SPOILER
5102
5201
5302
53851HPAD, FRONT SPOILER, RH
53852EPAD, FRONT SPOILER, LH
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75865EPROTECTOR, ROCKER PANEL MOULDING, RH
75866EPROTECTOR, ROCKER PANEL MOULDING, LH
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76879BCLIP, REAR SPOILER, NO.2
9011905008
main90119-05008
9015960444
main90159-60444
9015960561
main90159-60561
9017905011
main90179-05011
9018906006
main90189-06006
9046707106
main90467-07106
9046718015
main90467-18015
9356056016
main93560-56016

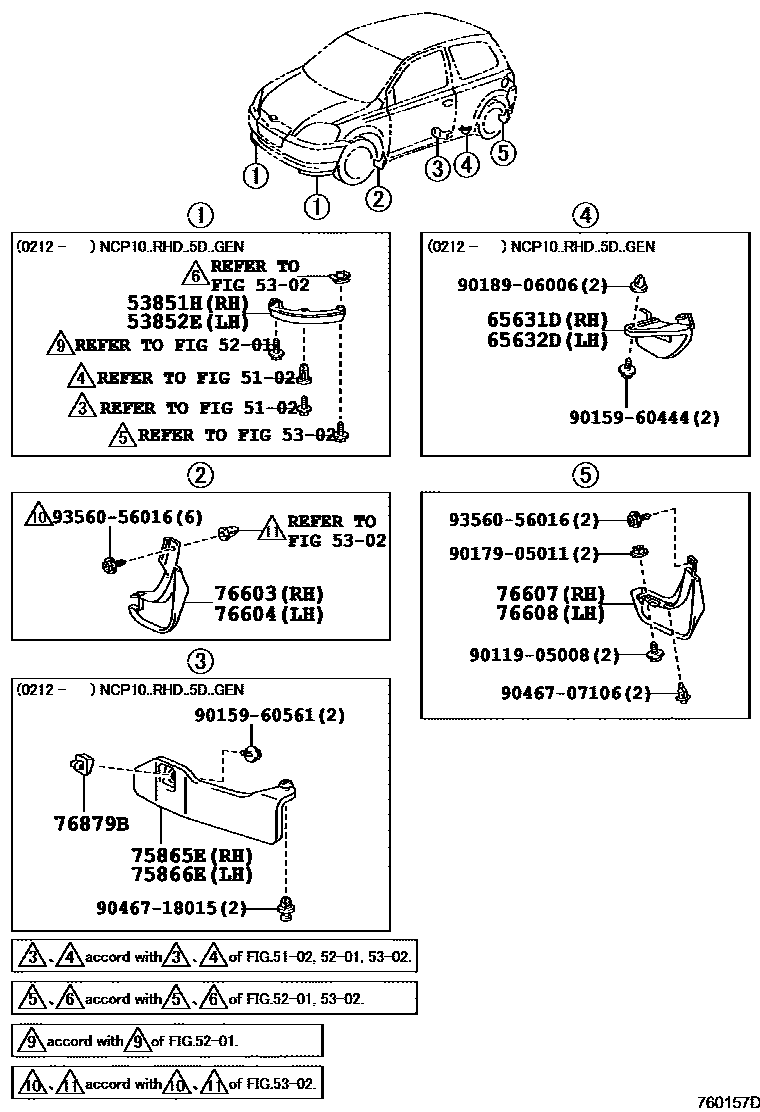

22 parts on this diagram · 2 diagrams in section
