FRONT SEAT & SEAT TRACK

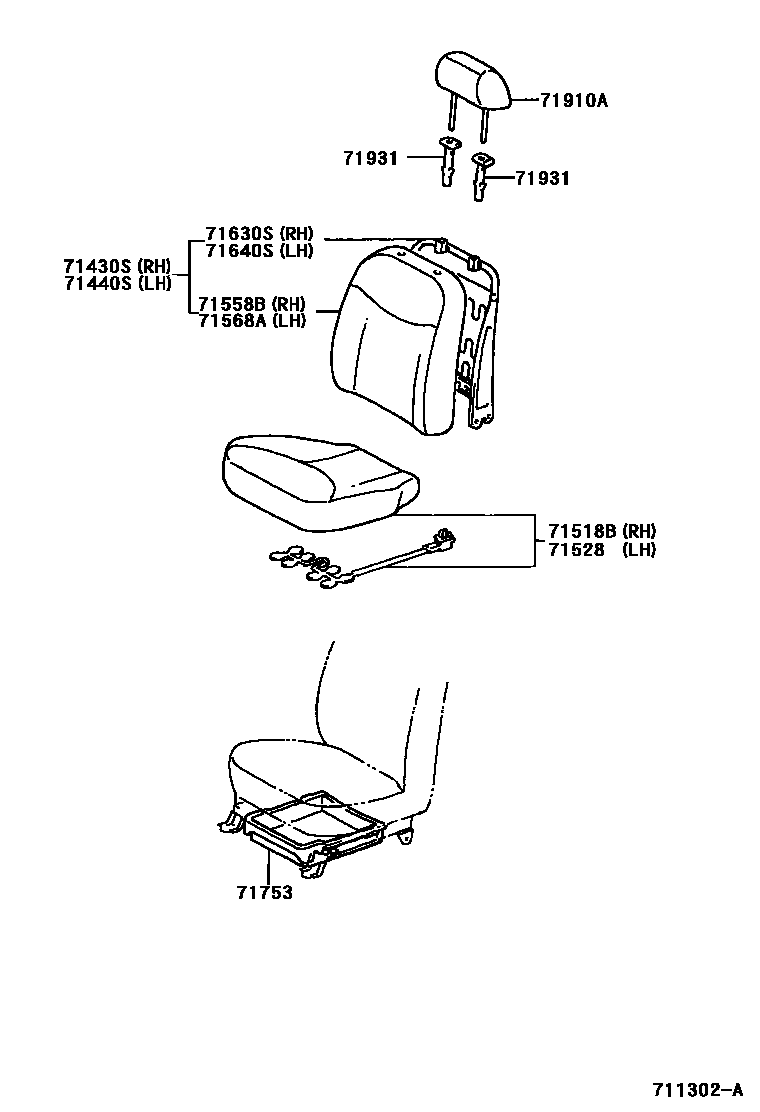

Parts diagram
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-52020-B1i199903-200101
SEAT = TYPE A-*104,SHADOW GRAY,TRIM1#
main71430-52020-H1i199903-200101
SEAT = TYPE A-*104,FRENCH TORQUOISE,TRIM7#
main71430-52030-B1i199908-200101
SEAT = TYPE B-*104,SHADOW GRAY,TRIM1#
main71430-52030-H1i199908-200101
SEAT = TYPE B-*104,FRENCH TORQUOISE,TRIM7#
main71430-52040-B1i199903-200101
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
main71430-52040-H1i199903-200101
SEAT = TYPE C-*104,FRENCH TORQUOISE,TRIM7#
main71430-52050-B1i199908-200101
SEAT = TYPE A-*104,SHADOW GRAY,TRIM1#
main71430-52050-H1i199908-200101
SEAT = TYPE A-*104,FRENCH TORQUOISE,TRIM7#
main71430-52070-B1i199908-200101
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
main71430-52070-H1i199908-200101
SEAT = TYPE C-*104,FRENCH TORQUOISE,TRIM7#
main71430-52370-K0i200101-200212
SEAT = TYPE D-*104,SHADOW GRAY,TRIM9#
main71430-52510-B0i200101-200208
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71430-52510-H0i200101-200208
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71430-52511-B0i200208-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71430-52511-H0i200208-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71430-52530-B0i200101-200208
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
main71430-52530-H0i200101-200208
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
main71430-52531-B0i200208-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
main71430-52531-H0i200208-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
main71430-52550-B0i200101-200208
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
main71430-52550-H0i200101-200208
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
main71430-52551-B0i200208-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
sub71430-52552
main71430-52551-H0i200208-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
sub71430-52552
main71430-52570-B0i200101-200208
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71430-52570-H0i200101-200208
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71430-52571-B0i200208-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71430-52571-H0i200208-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71430-52610-B0i200101-200208
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
main71430-52610-H0i200101-200208
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
main71430-52611-B0i200208-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
sub71430-52612
main71430-52611-H0i200208-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
sub71430-52612
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-52370-K0i200101-200212
SEAT = TYPE D-*104,SHADOW GRAY,TRIM9#
main71440-52020-B2i199908-200101
SEAT = TYPE A-*104,SHADOW GRAY,TRIM1#
main71440-52020-H2i199908-200101
SEAT = TYPE A-*104,FRENCH TORQUOISE,TRIM7#
main71440-52060-B2i199908-200101
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
main71440-52060-H2i199908-200101
SEAT = TYPE C-*104,FRENCH TORQUOISE,TRIM7#
main71440-52080-B0i199903-200101
SEAT = TYPE A-*104,SHADOW GRAY,TRIM1#
main71440-52080-H0i199903-200101
SEAT = TYPE A-*104,FRENCH TORQUOISE,TRIM7#
main71440-52090-B0i199908-200101
SEAT = TYPE B-*104,SHADOW GRAY,TRIM1#
main71440-52090-H0i199908-200101
SEAT = TYPE B-*104,FRENCH TORQUOISE,TRIM7#
main71440-52100-B0i199903-200101
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
main71440-52100-H0i199903-200101
SEAT = TYPE C-*104,FRENCH TORQUOISE,TRIM7#
main71440-52680-B0i200101-200208
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71440-52680-H0i200101-200208
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71440-52681-B0i200208-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71440-52681-H0i200208-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71440-52700-B0i200101-200208
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
main71440-52700-H0i200101-200208
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
main71440-52701-B0i200208-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
main71440-52701-H0i200208-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
main71440-52720-B0i200101-200208
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
main71440-52720-H0i200101-200208
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
main71440-52721-B0i200208-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
main71440-52721-H0i200208-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
main71440-52740-B0i200101-200208
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71440-52740-H0i200101-200208
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71440-52741-B0i200208-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71440-52741-H0i200208-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71440-52820-B0i200101-200208
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
main71440-52820-H0i200101-200208
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
main71440-52821-B0i200208-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
sub71440-52822
main71440-52821-H0i200208-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
sub71440-52822
71518BPAD, FRONT SEAT CUSHION W/COVER, RH
main71518-52020-B0i199908-200101
SEAT = TYPE A-*104,GRAY,TRIM1#,ARACO
main71518-52020-H0i199908-200101
SEAT = TYPE A-*104,TORQUOISE,TRIM7#,ARACO
main71518-52030-B0i199903-200101
SEAT = TYPE A-*104,GRAY,TRIM1#
main71518-52030-H0i199903-200101
SEAT = TYPE A-*104,TORQUOISE,TRIM7#
main71518-52040-B0i199908-200101
SEAT = TYPE A-*104,GRAY,TRIM1#,ARACO
main71518-52040-H0i199908-200101
SEAT = TYPE A-*104,TORQUOISE,TRIM7#,ARACO
main71518-52050-B0i199908-200101
SEAT = TYPE B-*104,GRAY,TRIM1#,ARACO
main71518-52050-H0i199908-200101
SEAT = TYPE B-*104,TORQUOISE,TRIM7#,ARACO
main71518-52080-B0i199908-200101
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
main71518-52080-H0i199908-200101
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
main71518-52090-B0i199908-200101
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
main71518-52090-H0i199908-200101
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
main71518-52110-B0i199908-200212
SEAT = TYPE A-*104,GRAY,TRIM1#,TNK
main71518-52110-H0i199908-200212
SEAT = TYPE A-*104,TORQUOISE,TRIM7#,TNK
main71518-52130-B0i199908-200212
SEAT = TYPE A-*104,GRAY,TRIM1#,TNK
main71518-52130-H0i199908-200212
SEAT = TYPE A-*104,TORQUOISE,TRIM7#,TNK
main71518-52140-B0i199908-200101
SEAT = TYPE B-*104,GRAY,TRIM1#
main71518-52140-H0i199908-200101
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
main71518-52170-B0i199908-200212
SEAT = TYPE C-*104,GRAY,TRIM1#,TNK
main71518-52170-H0i199908-200212
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,TNK
main71518-52180-B0i199908-200212
SEAT = TYPE C-*104,GRAY,TRIM1#,TNK
main71518-52180-H0i199908-200212
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,TNK
main71518-52190-B1i199903-200101
SEAT = TYPE C-*104,GRAY,TRIM1#
main71518-52190-H1i199903-200101
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
main71518-52680-B0i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO
sub71518-52681
main71518-52680-H0i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71518-52681
main71518-52690-B0i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK
main71518-52690-H0i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71518-52700-B1i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO
sub71518-52701
main71518-52700-H1i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71518-52701
main71518-52710-B1i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK
main71518-52710-H1i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71518-52740-B0i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO
sub71518-52741
main71518-52740-H0i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71518-52741
main71518-52750-B0i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK
main71518-52750-H0i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71518-52780-B0i200101-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO
main71518-52780-H0i200101-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO
main71518-52790-B0i200101-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TNK
main71518-52790-H0i200101-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71518-52860-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
sub71518-52861
main71518-52860-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71518-52861
main71518-52870-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK
main71518-52870-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71518-52880-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
sub71518-52881
main71518-52880-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71518-52881
main71518-52890-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK
main71518-52890-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71518-5C030-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK
main71518-5C030-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71518-5C040-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
sub71518-5C041
main71518-5C040-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71518-5C041
main71518-5C290-B0i200212-200508
SEAT = TYPE A-*104,DK. GRAY,TRIM9#
main71518-5C540-B0i200212-200508
SEAT = TYPE A-*104,DK. GRAY,TRIM9#
sub71518-5C541
main71518-5C580-B0i200212-200508
SEAT = TYPE C-*104,DK. GRAY,TRIM97,98
main71518-5C580-J0i200212-200508
SEAT = TYPE C-*104,DK.GRAY,TRIM99
main71518-5C600-B0i200212-200508
SEAT = TYPE B-*104,DK. GRAY,TRIM97,98
main71518-5C620-B0i200212-200508
SEAT = TYPE B-*104,DK. GRAY,TRIM97,98
main71518-5D020-B0i200212-200508
SEAT = TYPE A-*104,DK. GRAY,TRIM9#
71528PAD, FRONT SEAT CUSHION W/COVER, LH
main71528-52030-B0i199903-199907
SEAT = TYPE A-*104,GRAY,TRIM1#
main71528-52030-H0i199903-199908
SEAT = TYPE A-*104,TORQUOISE,TRIM7#
main71528-52031-B0i199907-200101
SEAT = TYPE A-*104,GRAY,TRIM1#
main71528-52031-H0i199908-200101
SEAT = TYPE A-*104,TORQUOISE,TRIM7#
main71528-52060-B0i199908-200101
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
main71528-52060-H0i199908-200101
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
main71528-52080-B0i199903-199907
SEAT = TYPE C-*104,GRAY,TRIM1#
main71528-52080-H0i199903-199908
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
main71528-52081-B0i199908-200101
SEAT = TYPE C-*104,GRAY,TRIM1#
main71528-52081-H0i199908-200101
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
main71528-52140-B0i199908-200212
SEAT = TYPE C-*104,GRAY,TRIM1#
main71528-52140-H0i199908-200212
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
main71528-52170-B0i199908-200101
SEAT = TYPE A-*104,GRAY,TRIM1#,ARACO
main71528-52170-H0i199908-200101
SEAT = TYPE A-*104,TORQUOISE,TRIM7#,ARACO
main71528-52180-B0i199908-200101
SEAT = TYPE A-*104,GRAY,TRIM1#,ARACO
main71528-52180-H0i199908-200101
SEAT = TYPE A-*104,TORQUOISE,TRIM7#,ARACO
main71528-52200-B0i199908-200101
SEAT = TYPE B-*104,GRAY,TRIM1#,ARACO
main71528-52200-H0i199908-200101
SEAT = TYPE B-*104,TORQUOISE,TRIM7#,ARACO
main71528-52210-B0i199908-200101
SEAT = TYPE C-*104,GRAY,TRIM1#,ARACO
main71528-52210-H0i199908-200101
SEAT = TYPE C-*104,TORQUOISE,TRIM7#,ARACO
main71528-52220-B0i199908-200212
SEAT = TYPE A-*104,GRAY,TRIM1#
main71528-52220-H0i199908-200212
SEAT = TYPE A-*104,TORQUOISE,TRIM7#
main71528-52230-B0i199908-200212
SEAT = TYPE A-*104,GRAY,TRIM1#
main71528-52230-H0i199908-200212
SEAT = TYPE A-*104,TORQUOISE,TRIM7#
main71528-52250-B0i199908-200212
SEAT = TYPE B-*104,GRAY,TRIM1#
main71528-52250-H0i199908-200212
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
main71528-52260-B0i199908-200212
SEAT = TYPE C-*104,GRAY,TRIM1#
main71528-52260-H0i199908-200212
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
main71528-52860-B0i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO
sub71528-52861
main71528-52860-H0i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71528-52861
main71528-52870-B0i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK
main71528-52870-H0i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TNK
main71528-52880-B1i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO
sub71528-52881
main71528-52880-H1i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71528-52881
main71528-52890-B1i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK
main71528-52890-H1i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71528-5C030-B0i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,TNK
main71528-5C030-H0i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71528-5C040-B0i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#,ARACO
sub71528-5C041
main71528-5C040-H0i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71528-5C041
main71528-5C110-B0i200101-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TNK
main71528-5C110-H0i200101-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71528-5C120-B0i200101-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,ARACO
main71528-5C120-H0i200101-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,ARACO
main71528-5C230-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK
sub71528-5C241
main71528-5C230-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TNK
sub71528-5C241
main71528-5C240-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
main71528-5C240-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,ARACO
main71528-5C250-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK
sub71528-5C261
main71528-5C250-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TNK
sub71528-5C261
main71528-5C260-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
sub71528-5C261
main71528-5C260-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71528-5C261
main71528-5C290-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK
sub71528-5C301
main71528-5C290-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,TNK
sub71528-5C301
main71528-5C300-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO
sub71528-5C301
main71528-5C300-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#,ARACO
sub71528-5C301
main71528-5D030-B0i200212-200508
SEAT = TYPE B-*104 & W(SRS AIR BAG),DK. GRAY,TRIM97,98
main71528-5D040-B0i200212-200508
SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM97,98
main71528-5D120-B0i200212-200508
SEAT = TYPE C-*104 & W(SRS AIR BAG),DK. GRAY,TRIM97,98
main71528-5D120-J0i200212-200508
SEAT = TYPE C-*104 & W(SRS AIR BAG),DK.GRAY,TRIM99
main71528-5D360-B0i200212-200508
SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM9#
sub71528-5D361
main71528-5D380-B0i200212-200508
SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY,TRIM9#
71558BPAD, FRONT SEATBACK W/COVER, RH
main71558-52020-B0i199903-200101
SEAT = TYPE A-*104,GRAY,TRIM1#
main71558-52020-H0i199903-200101
SEAT = TYPE A-*104,TORQUOISE,TRIM7#
main71558-52030-B0i199908-200101
SEAT = TYPE B-*104,GRAY,TRIM1#
main71558-52030-H0i199908-200101
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
main71558-52040-B0i199903-200101
SEAT = TYPE C-*104,GRAY,TRIM1#
main71558-52040-H0i199903-200101
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
main71558-52670-B1i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
sub71558-52681
main71558-52670-H1i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
sub71558-52681
main71558-52710-B0i200101-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
main71558-52710-H0i200101-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
main71558-52750-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
sub71558-52761
main71558-52750-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
sub71558-52761
main71558-52A30-B0i200212-200508
SEAT = TYPE A-*104,DK. GRAY,TRIM9#
main71558-5C430-B0i200212-200508
SEAT = TYPE B OR TYPE C-*104,DK. GRAY,TRIM97,98,99
main71558-5C450-B0i200212-200508
SEAT = TYPE C-*104,DK. GRAY,TRIM97,98
main71558-5C450-J0i200212-200508
SEAT = TYPE C-*104,DK.GRAY,TRIM99
71568APAD, FRONT SEATBACK W/COVER, LH
main71568-52010-B0i199908-200101
SEAT = TYPE B-*104,GRAY,TRIM1#
main71568-52010-H0i199908-200101
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
main71568-52030-B0i199903-200101
SEAT = TYPE C-*104,GRAY,TRIM1#
main71568-52030-H0i199903-200101
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
main71568-52060-B0i199903-200101
SEAT = TYPE A-*104,GRAY,TRIM1#
main71568-52060-H0i199903-200101
SEAT = TYPE A-*104,TORQUOISE,TRIM7#
main71568-52410-B1i200101-200212
SEAT = TYPE F-*104,SHADOW GRAY,TRIM1#
main71568-52410-H1i200101-200212
SEAT = TYPE F-*104,FRENCH TURQUOISE,TRIM7#
main71568-52490-B0i200101-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#,TNK
main71568-52490-H0i200101-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#,TNK
main71568-52690-B0i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
sub71568-52681
main71568-52690-H0i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
sub71568-52681
main71568-5C290-B0i200212-200508
SEAT = TYPE A-*104,DK. GRAY,TRIM9#
main71568-5C680-B0i200212-200508
SEAT = TYPE B-*104,DK. GRAY,TRIM97,98
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-52010i199903-200101
main71630-52020i199908-200212
main71630-52240i200212
main71630-63030i200101-200212
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-52010i199908-200212
main71630-52020i200208-200212
main71630-52240i200212
main71630-63030i200212
71753TRAY, FRONT SEAT UNDER
main71753-52010i200212
71910AHEADREST ASSY, FRONT SEAT
main71910-52010-B0×2i199903-200212
SEAT = TYPE A-*104,SHADOW GRAY,TRIM1#
main71910-52010-H0×2i199903-200212
SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7#
main71910-52030-B0×2i199908-200212
SEAT = TYPE B-*104,GRAY,TRIM1#
main71910-52030-H0×2i199908-200212
SEAT = TYPE B-*104,TORQUOISE,TRIM7#
main71910-52040-B0×2i199903-200212
SEAT = TYPE C-*104,GRAY,TRIM1#
main71910-52040-H0×2i199903-200212
SEAT = TYPE C-*104,TORQUOISE,TRIM7#
main71910-52130-C0×2i200101-200208
SEAT = TYPE D-*104,BLACK,TRIM9#
main71910-52180-B0×2i200101-200212
SEAT = TYPE E-*104,SHADOW GRAY,TRIM1#
main71910-52180-H0×2i200101-200212
SEAT = TYPE E-*104,FRENCH TURQUOISE,TRIM7#
main71910-52190-B0×2i200101-200212
SEAT = TYPE G-*104,SHADOW GRAY,TRIM1#
main71910-52190-H0×2i200101-200212
SEAT = TYPE G-*104,FRENCH TURQUOISE,TRIM7#
main71910-52340-B0×2i200212-200508
SEAT = TYPE A-*104,MD. GRAY,TRIM9#
sub71910-52341
main71910-52360-B0×2i200212-200508
DK. GRAY,TRIM97,98,99
main71910-52370-B0×2i200212-200508
DK. GRAY,TRIM97,98
71931SUPPORT, FRONT SEAT HEADREST
main71930-47010-B2×2i200212-200508
W(LOCK),DK.GRAY,TRIM97,98,99
sub71930-44020
main71930-52010-B0×2i199903-200101
W(LOCK),SHADOW GRAY,TRIM1#
main71930-52010-B4×2i200101-200212
W(LOCK),DK.GRAY,TRIM1#,7#
main71930-52010-G0×2i199903-200101
W(LOCK),AGATE,TRIM7#
main71931-47010-B2×2i200212-200508
W/O(LOCK),DK.GRAY,TRIM9#
sub71931-42020
main71931-52010-B0×2i199903-200101
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-52010-B4×2i200101-200212
W/O(LOCK),DK.GRAY,TRIM1#,7#
main71931-52010-G0×2i199903-200101
W/O(LOCK),AGATE,TRIM7#

11 parts on this diagram · 9 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
