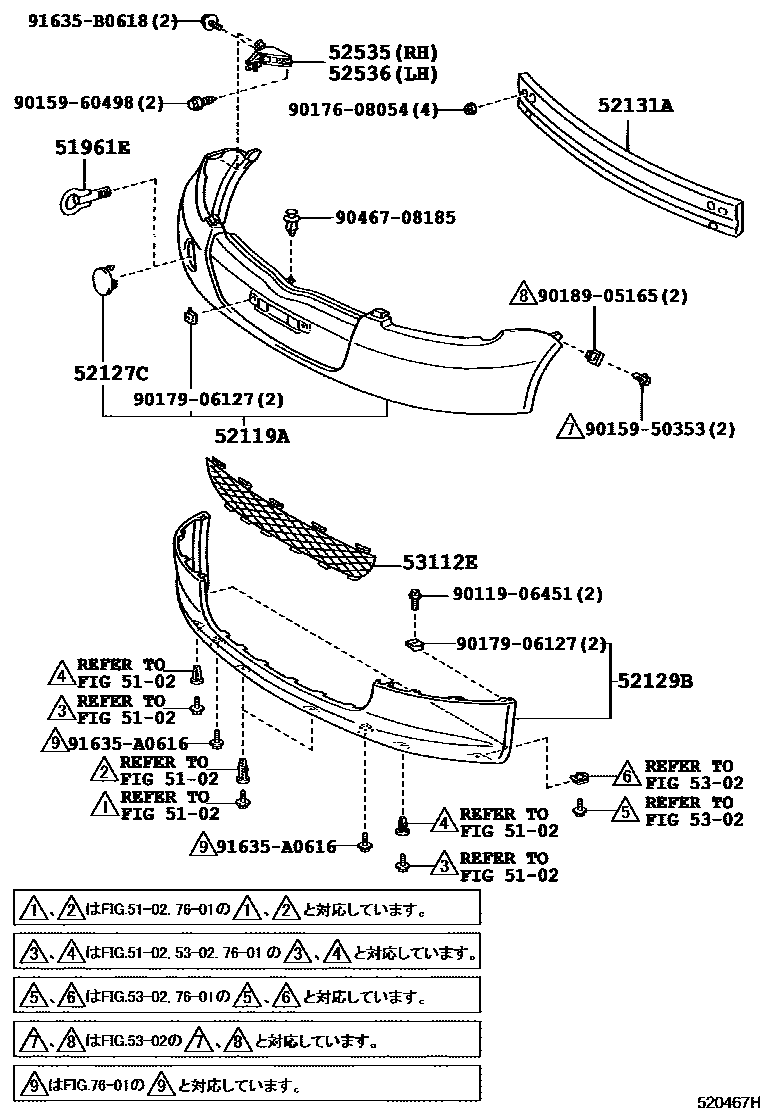

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5102

51961EHOOK, FRONT

main51960-52010iNCP1#,SCP10199903-200112

main51960-52040iNCP1#,SCP10200112-200212

52119ACOVER, FRONT BUMPER

main52119-52900iSCP10199903-199908

main52119-52904iNCP10,SCP10199908-200212

main52119-52908iNCP13200101-200212

main52119-52913iNCP10,SCP10200212-200508

main52119-52918iNCP13200212-200508

52127CCOVER, FRONT BUMPER HOLE

main52127-52010iSCP10199903-199908

UNPAINTED

main52127-52011iNCP10,SCP10199903-200212

main52127-52090-A0iNCP13200101-200212

WHITE,068

sub52127-52900

main52127-52090-B0iNCP13200101-200212

GRAY ME.,1D2

sub52127-52900

main52127-52090-C0iNCP13200101-200212

BLACK MC.,209

sub52127-52900

main52127-52090-D0iNCP13200101-200212

SUPER RED 5,3P0

sub52127-52900

main52127-52090-F0iNCP13200101-200212

YELLOW M.M.,580

sub52127-52900

main52127-52090-J0iNCP13200101-200212

STRONG BLUE M,8B6

sub52127-52900

main52721-52010iNCP10,SCP10200212-200508

UNPAINTED

main52721-52020-A0iNCP10,SCP10200212-200508

WHITE,068

main52721-52020-A1iNCP10,SCP10..GEN200212-200307

WHITE PM.,057

main52721-52020-B1iNCP10,SCP10200212-200508

GRAY ME.,1D2

main52721-52020-B2iNCP10,SCP10200212-200508

SILVER M.M.,1E7

main52721-52020-C0iNCP10,SCP10200212-200508

BLACK MC.,209

main52721-52020-D0iNCP10,SCP10..GEN200212-200307

PALE ROSE ME.OP.,3N7

main52721-52020-D1iNCP10,SCP10200212-200508

SUPER RED 5,3P0

main52721-52020-F4iNCP10,SCP10..GEN200212-200312

YELLOW PM.,595

main52721-52020-G1iNCP10,SCP10200212-200508

DARK GREEN MC.,6R4

main52721-52020-J0iNCP10,SCP10200212-200508

DK.BLUE M.M.,8P4

main52721-52020-J3iNCP10,SCP10200212-200508

BLUE ME.,8P1

main52721-52020-J4iNCP10,SCP10200212-200508

PALE BLUE M.M.,8R0

main52721-52900iNCP13200212-200508

UNPAINTED

52129BCOVER, FRONT BUMPER, LOWER

main52129-52900iNCP10,SCP10199903-200212

UNPAINTED

52131AREINFORCEMENT, FRONT BUMPER

main52131-52010iSCP10199903-199908

main52131-52060iNCP10,SCP10199908-200001

main52131-52070iNCP1#,SCP10200001-200212

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52011iNCP1#,SCP10199903-200112

main52535-52012iNCP1#,SCP10200112-200212

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52011iNCP1#,SCP10199903-200112

main52536-52012iNCP1#,SCP10200112-200212

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-52010iNCP10,SCP10199903-200212

main53112-52060iNCP10,SCP10200212-200508

9011906451

main90119-06451

9015950353

main90159-50353

9015960498

main90159-60498

9017608054

main90176-08054

9017906127

main90179-06127

9018905165

main90189-05165

9046708185

main90467-08185

91635A0616

main91635-A0616

91635B0618

main91635-B0618

19 parts on this diagram · 4 diagrams in section
