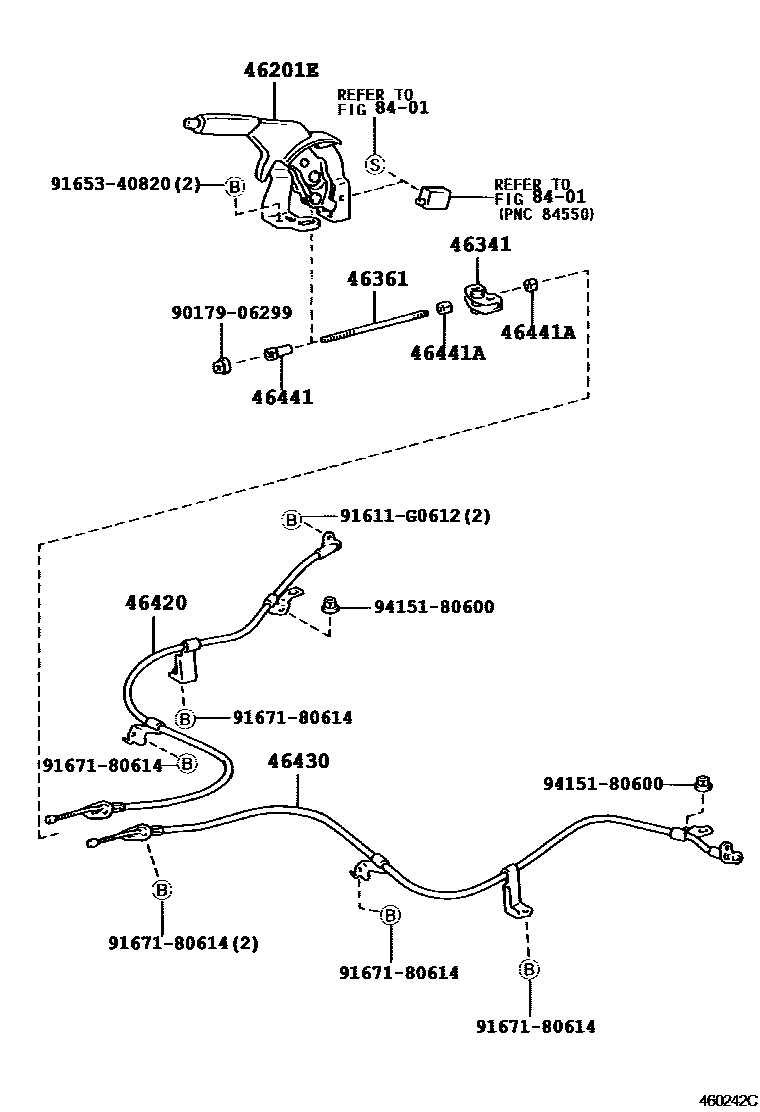

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52010-B0iNCP10,SCP10199903-200212

MD.GRAY,TRIM1#

main46201-52010-B2iNCP13200101-200212

SHADOW GRAY,TRIM9#

main46201-52010-B3iNCP10,SCP10..GEN200212-200508

DK.GRAY,TRIM97,98,99

main46201-52010-G0iNCP10,SCP10199903-200212

MIST GREEN,TRIM7#

main46201-52050-B1iNCP10,SCP10..GEN200212-200508

CHROME PLATED KNOB,DK.GRAY,TRIM97,98

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP1#,SCP10199903-200212

46361ROD, PARKING BRAKE PULL

main46361-52010iNCP1#,SCP10199903-200212

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52020iNCP1#,SCP10199903-200212

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52020iNCP1#,SCP10199903-200212

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP1#,SCP10199903-200212

46441ANUT, WIRE ADJUSTING, NO.2

main90170-06014×2iNCP1#,SCP10199903-200212

8401

9017906299

main90179-06299

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
