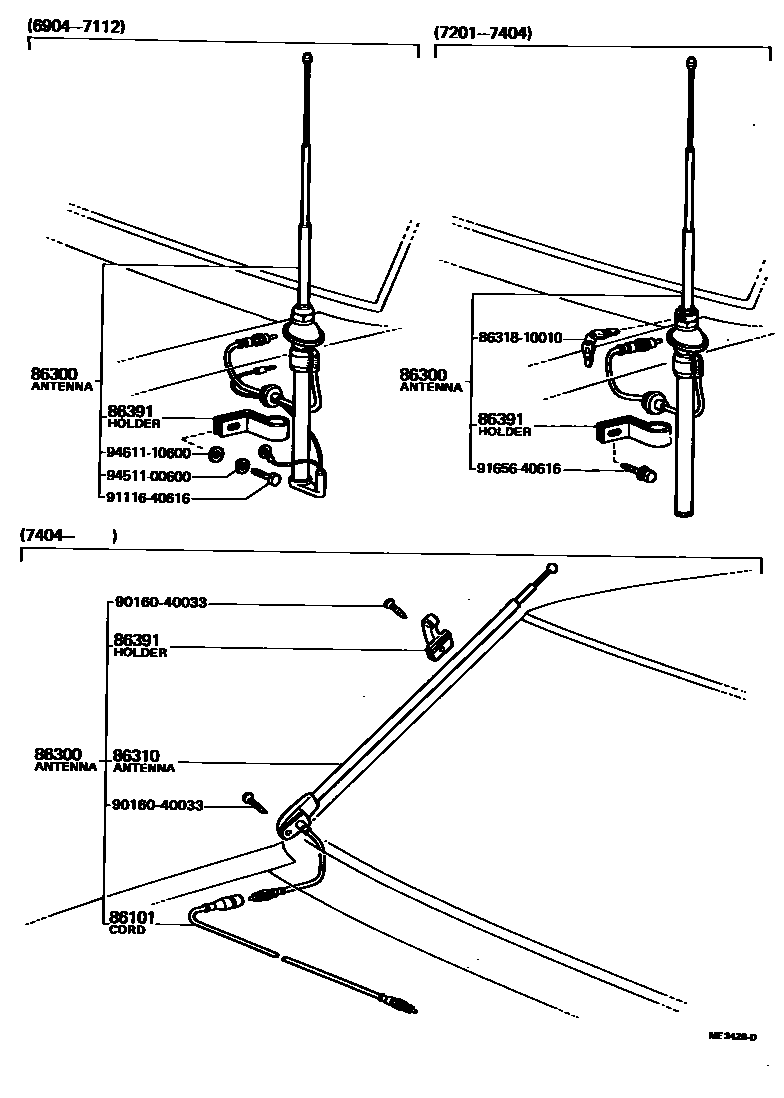

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-10020iKP30,36197404-198808

86300ANTENNA ASSY, W/HOLDER

main86300-10040iKP3#..RHD196904-197112

sub86300-10050

main86300-10050iKP3#..LHD196904-197112

main86300-10060iKP3#..RHD197201-197404

main86300-10070iKP3#..LHD197201-197404

main86300-10090iKP3#197404-197406

sub86300-10091

main86300-10091iKP30,36197406-198808

86310ANTENNA ASSY, W/O HOLDER

main86310-10040iKP3#197404-197406

sub86310-10041

main86310-10041iKP30,36197406-198808

86391HOLDER, ANTENNA

main86391-10030iKP30,36197404-198808

main86391-12010iKP3#..RHD196904-197404

main86391-12020iKP3#..LHD196904-197404

8631810010

main86318-10010

9016040033

main90160-40033

9111640616

main91116-40616

9165640616

main91656-40616

9451100600

main94511-00600

9461110600

main94611-10600

10 parts on this diagram · 1 diagram in section
