WINDSHIELD WIPER

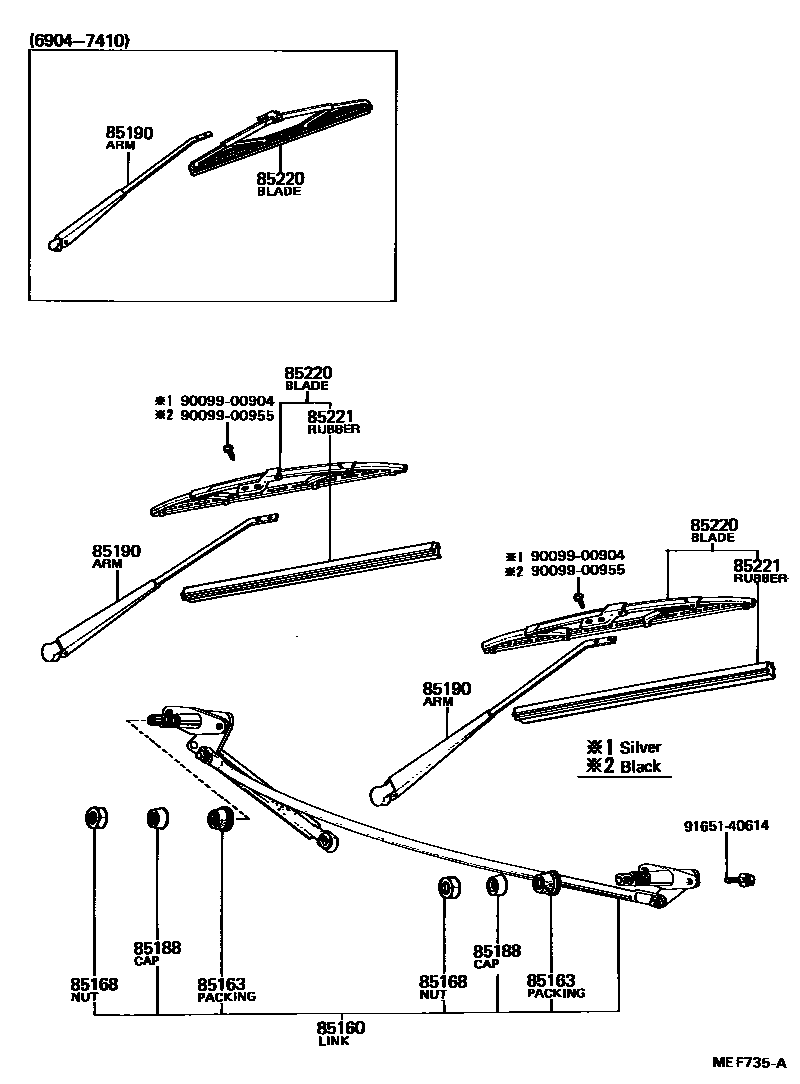

Parts diagram
85160LINK ASSY, WINDSHIELD WIPER
main85160-10052i¥9,900196904-198808
main85160-10062i¥9,900196904-198808
85163PACKING, WINDSHIELD WIPER PIVOT
main85174-10050i196904-197010
main85174-10052i197010-198808
85168NUT, WINDSHIELD WIPER LINK PIVOT
main90099-05808i196904-198808
85188CAP, WINDSHIELD WIPER PIVOT, NO.1
main90099-01380i196904-198808
85190ARM ASSY, WINDSHIELD WIPER
main85190-10070i¥2,940196904-196911
MARK=A
sub85190-10130
main85190-10080i¥2,790196904-197410
MARK=A
sub85190-12023¥2,300
main85190-10090i¥2,520196904-196911
MARK=B
sub85190-10070¥2,940
main85190-10100i¥2,790196904-197410
MARK=B
sub85190-12023¥2,300
main85190-10110i196911-197410
MARK=A
main85190-10120i¥2,280196911-197410
MARK=B
sub85190-10110
main85190-10190i¥2,730197410-198808
sub85190-10210¥2,740
main85190-10200i¥2,290197410-198808
sub85190-10230¥2,740
main85190-10210i¥2,740197701-198808
MARK=A,EUROPE SPEC
main85190-10220i¥2,740197701-198808
MARK=B,EUROPE SPEC
sub85190-10210¥2,740
main85190-10230i¥2,740197701-198808
MARK=A,EUROPE SPEC
main85190-10240i¥2,730197701-198808
MARK=B,EUROPE SPEC
sub85190-10230¥2,740
85220BLADE ASSY, WINDSHIELD WIPER
main85220-10030i¥1,390196904-196911
sub85220-11H90
main85220-10060i¥1,710197410-198808
sub85220-10080¥1,720
main85220-10070i¥1,520197410-198808
sub85220-10090¥1,530
main85220-10080i¥1,720197701-198808
EUROPE SPEC
sub85222-68011¥1,340
sub85230-14020
main85220-10090i¥1,530197701-198808
EUROPE SPEC
sub85212-44032¥1,340
sub85230-14030
main85220-20020i196904-197410
85221BLADE, WINDSHIELD WIPER
main85221-10040i¥640197410-198808
sub85214-68011¥750
sub85221-10H00
9009900904
main90099-00904¥140
9009900955
main90099-00955¥180
9165140614
main91651-40614¥160

10 parts on this diagram · 3 diagrams in section
