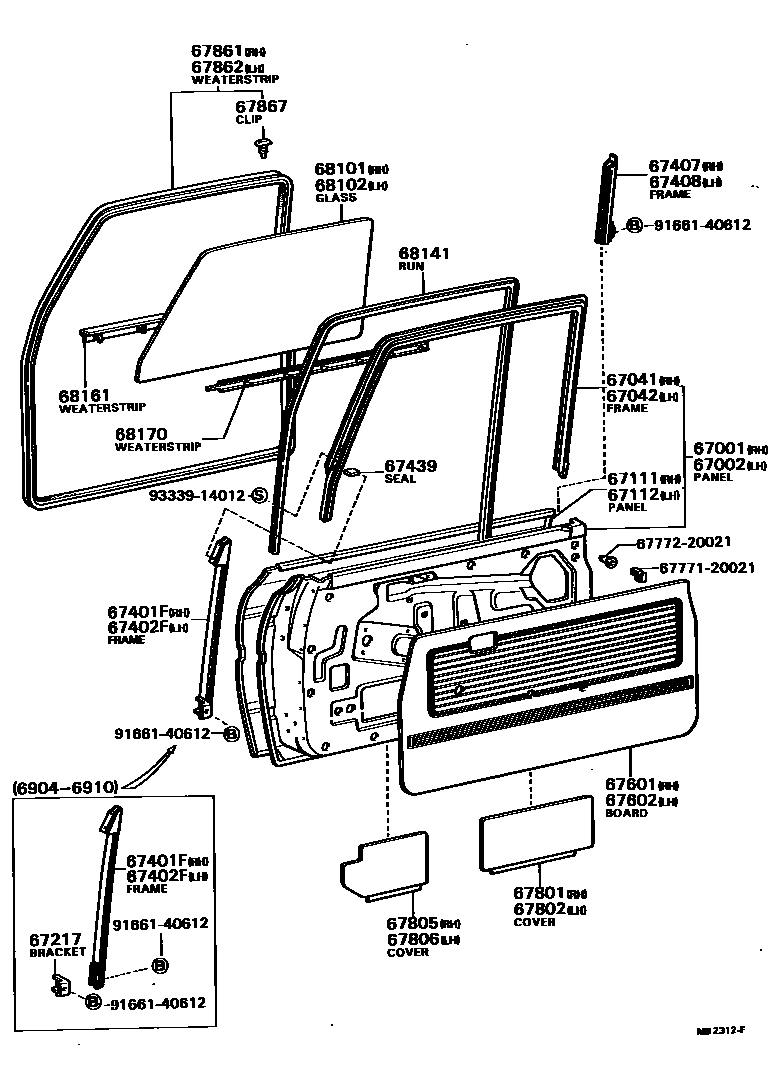

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
W/MIRROR HOLE
67002PANEL SUB-ASSY, FRONT DOOR, LH
W/MIRROR HOLE
67041FRAME SUB-ASSY, FRONT DOOR WINDOW, RH
67042FRAME SUB-ASSY, FRONT DOOR WINDOW, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67217BRACKET, FRONT DOOR LOWER FRAME SUPPORT
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67439SEAL, FRONT JOINT PIECE
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,BLACK
RED,RED/MAROON
BLACK,BLACK
BEIGE,BEIGE
YELLOW,YELLOW
BLACK,BLACK,TRIM2#
OLIVE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
OLIVE BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,BLACK
RED,RED/MAROON
BLACK,BLACK
BEIGE,BEIGE
YELLOW,YELLOW
BLACK,BLACK,TRIM2#
OLIVE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
OLIVE BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67805COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 RH
67806COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=4.5,*TEM,T=4.0
*TT,T=4.0,*TT,T=4.0
*TEM,T=3.5
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=4.0,*TEM,T=4.0
*TT,T=4.0,*TT,T=4.0
*TEM,T=3.5
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LH
6777120021WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20021
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9166140612
main91661-40612
9333914012
main93339-14012
30 parts on this diagram · 1 diagram in section
