ROOF HEADLINING & SILENCER PAD

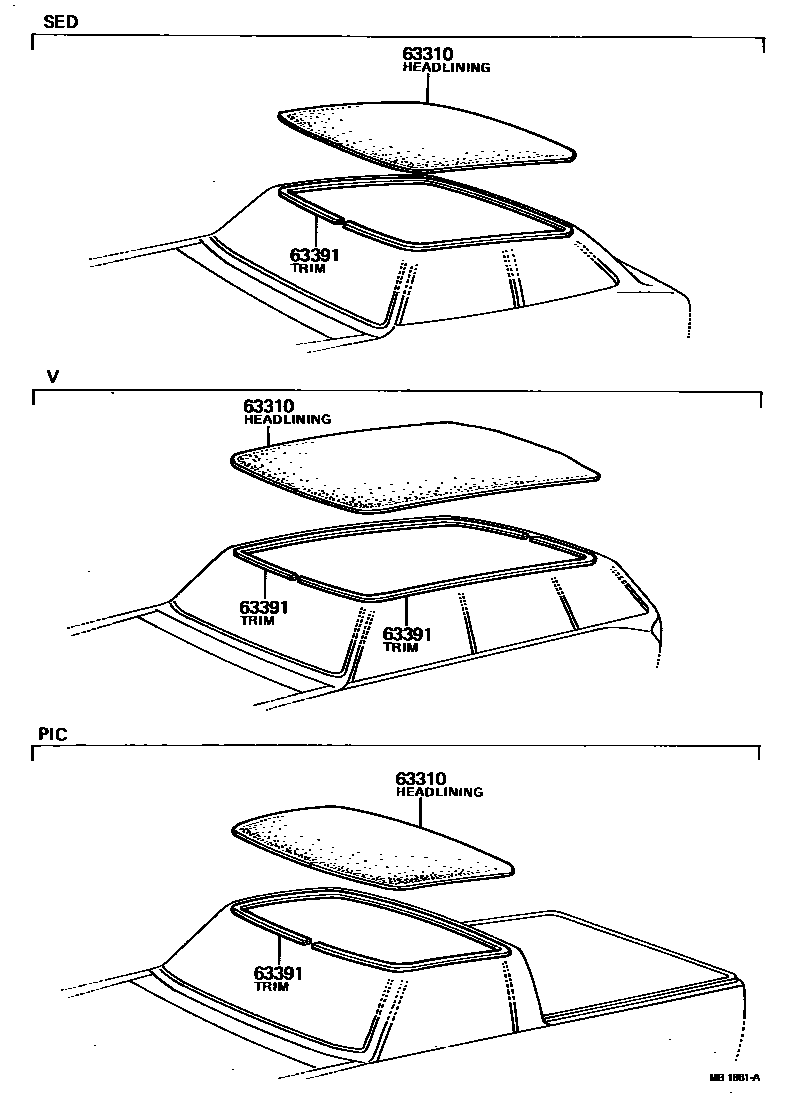

Parts diagram
63310HEADLINING ASSY, ROOF
main63311-10030-03i196904-197010
LIGHT GRAY,GRAY
sub63311-10030
main63311-10030-13i197010-197112
LIGHT GRAY,GRAY
sub63311-10030
main63311-10031-08i197410-197802
IVORY,IVORY
main63311-10031-13i197201-197410
LIGHT GRAY,GRAY
main63311-11040-03i196904-197010
LIGHT GRAY,GRAY
sub63311-11040
main63311-11040-08i197410-197809
IVORY,IVORY
sub63311-11040
main63311-11040-13i197010-197410
LIGHT GRAY,GRAY
sub63311-11040
main63311-11050-03i196911-197010
LIGHT GRAY,GRAY
sub63311-11050
main63311-11050-08i197410-197810
IVORY,IVORY
sub63311-11050
main63311-11050-13i197010-197410
LIGHT GRAY,GRAY
sub63311-11050
main63311-11050-18i197810-198808
IVORY,IVORY
sub63311-11050
63391TRIM, ROOF HEADLINING, FRONT
main63391-10020i196904-197112
main63391-10021-03i197201-197410
LIGHT GRAY,GRAY
sub63391-10021
main63391-10021-08i197410-197802
IVORY,IVORY
sub63391-10021
main63391-11030-03i196904-197410
LIGHT GRAY,GRAY
sub63391-11030
main63391-11030-08i197410-197809
IVORY,IVORY
sub63391-11030
main63391-11040-03i196911-197410
LIGHT GRAY,GRAY
sub63391-11040
main63391-11040-08i197410-197810
IVORY,IVORY
sub63391-11040
main63391-11040-18i197810-198808
IVORY,IVORY
sub63391-11040

2 parts on this diagram · 1 diagram in section
