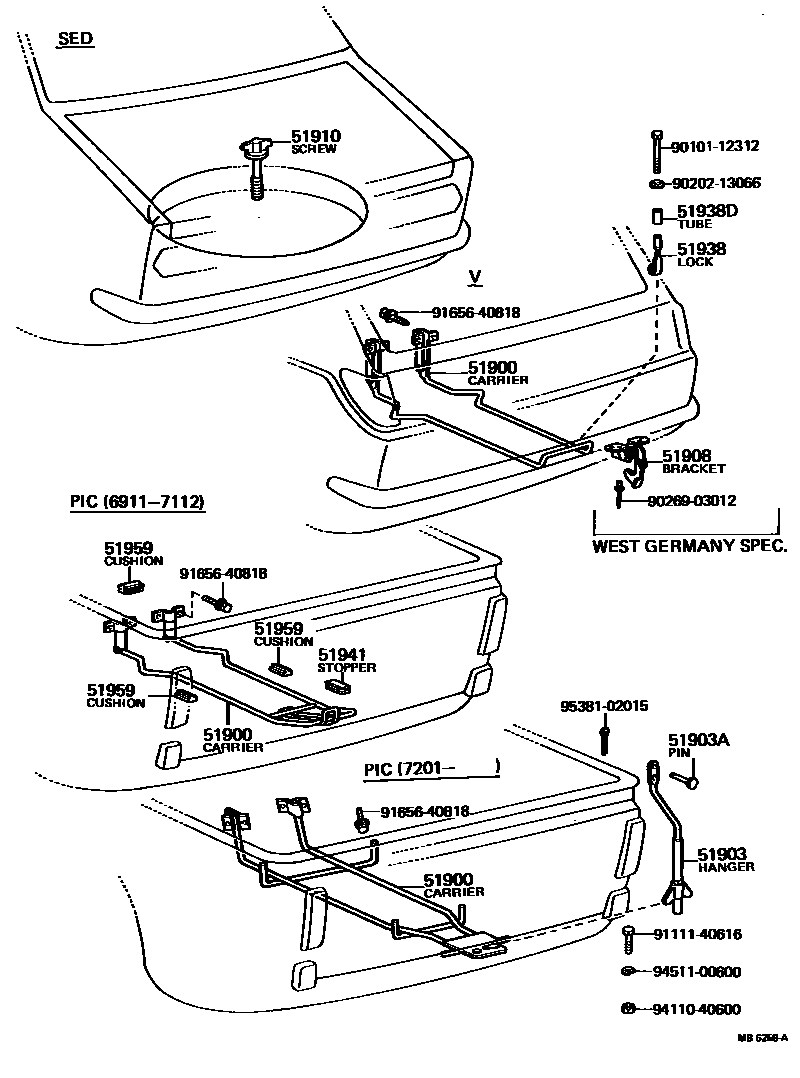

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-11010iKP36..V196904-196912

main51903-11011iKP36..V196912-197809

main51903-11020iKP36..PIC196911-197112

main51903-96400iKP36..PIC197201-197208

sub51903-96401¥4,190

sub51901-11012¥2,550

main51903-96401iKP36,37..PIC¥4,190197208-198808

51903HANGER SUB-ASSY, SPARE WHEEL CARRIER HANDLE

main51901-11011iKP36..PIC197201-197208

main51901-11012iKP36,37..PIC¥2,550197208-198808

51903APIN, W/HOLE(FOR SPARE WHEEL CARRIER HANDLE HANGER SETTING)

main90240-06140iKP36,37..PIC¥190197201-198808

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-11010iKP36..V..LHD197609-197908

WEST GERMANY SPEC

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-10030iKP30196904-197802

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iKP36..V196904-197809

sub51938-28020¥1,220

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17080iKP36..V¥230196906-197809

51941STOPPER, SPARE WHEEL CARRIER

main51939-11010iKP36..PIC196911-197112

51959CUSHION, SPARE WHEEL

main51959-11010iKP36..PIC196911-197112

9010112312

main90101-12312¥660

9020213066

main90202-13066¥140

9026903012

main90269-03012¥150

9111140616

main91111-40616¥170

9165640818

main91656-40818¥140

9411040600

main94110-40600¥80

9451100600

main94511-00600¥120

9538102015

main95381-02015¥100

17 parts on this diagram · 1 diagram in section
