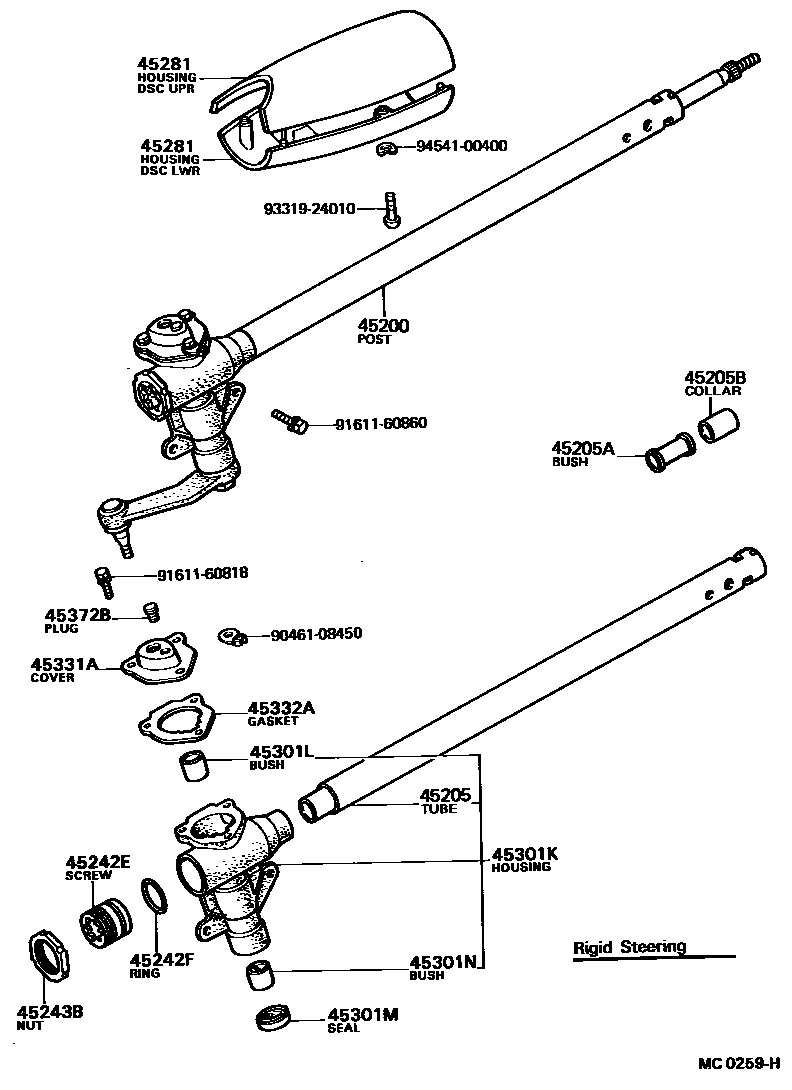

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

45200POST ASSY, STEERING

main45200-10140iKP3#..RHD196904-197010

RIGID STEERING

main45200-10141iKP3#..RHD197010-197112

RIGID STEERING

main45200-10150iKP3#..LHD196904-197010

RIGID STEERING

main45200-10151iKP3#..LHD197010-197112

RIGID STEERING

45205TUBE SUB-ASSY, STEERING COLUMN

main45250-10011iKP3#..(SED,V)..RHD197310-197809

COLLAPSIBLE STEERING

main45251-10070iKP3#196904-197010

RIGID STEERING

main45251-10071iKP3#197010-197112

RIGID STEERING

45205ABUSH(FOR STEERING COLUMN TUBE)

main90386-18026iKP3#¥430196904-197112

45205BCOLLAR(FOR STEERING COLUMN TUBE BUSH)

main90387-20006iKP3#¥210196904-197112

45242ESCREW, WORM BEARING ADJUSTING

main45242-12010iKP3#196904-197112

main45242-12020iKP3#¥800197201-198808

45242FRING, O(FOR WORM BEARING ADJUSTING SCREW)

main90301-37095iKP3#¥230196904-197112

main90301-51152iKP3#¥300197201-198808

45243BNUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-12010iKP3#196904-197112

main45243-22020iKP3#¥480197201-198808

45281HOUSING, STEERING COLUMN

main45286-10010iKP3#..RHD196904-197010

UPR

main45286-10011iKP3#..RHD197010-197112

UPR

main45286-10012iKP3#..RHD197201-197511

UPR

main45286-10013iKP3#..RHD¥1,460197511-198808

UPR

main45286-10020iKP3#..LHD196904-197010

UPR

main45286-10021iKP3#..LHD197010-197112

UPR

main45286-10022iKP30,36..LHD¥1,530197201-198808

UPR

main45287-10010iKP3#..RHD196904-197010

LWR

main45287-10011iKP3#..RHD197010-197112

LWR

main45287-10012iKP3#..RHD197201-197511

LWR

main45287-10013iKP3#..RHD¥890197511-198808

LWR

main45287-10020iKP3#..LHD196904-197010

LWR

main45287-10021iKP3#..LHD197010-197112

LWR

main45287-10022iKP30,36..LHD¥1,070197201-198808

LWR

45301KHOUSING SUB-ASSY, STEERING GEAR

main45301-10080iKP3#..RHD196904-197010

main45301-10081iKP3#..RHD197010-197112

main45301-10082iKP3#..RHD¥12,700197201-198808

main45301-10090iKP3#..LHD196904-197010

main45301-10091iKP3#..LHD197010-197112

main45301-10092iKP30,36..LHD197201-198808

main45301-12090iKP30,36..(SED,V)..RHD197310-197809

COLLAPSIBLE STEERING

main45301-12110iKP30,36..(SED,V)..LHD197512-197809

COLLAPSIBLE STEERING

45301LBUSH OR BEARING(FOR SECTOR SHAFT NO.1)

main90999-71013iKP3#¥460196904-197112

main90999-73008iKP3#¥920197201-198808

45301MSEAL, OIL(FOR SECTOR SHAFT)

main90310-25021iKP3#196904-197112

main90310-28038iKP3#¥190197201-198808

45301NBUSH OR BEARING(FOR SECTOR SHAFT NO.2)

main90999-71013iKP3#¥460196904-197112

main90999-73008iKP3#¥920197201-198808

45331ACOVER, SECTOR SHAFT END

main45331-10020iKP3#196904-197112

main45331-12010iKP3#¥640197201-198808

main45331-12020iKP30,36..(SED,V)..LHD¥640197512-197809

COLLAPSIBLE STEERING

45332AGASKET, SECTOR SHAFT END COVER

main45332-10011iKP3#¥130196904-197112

main45332-12010iKP3#¥230197201-198808

T=0.2

main45332-12020iKP30,36..(SED,V)..LHD¥190197512-197809

COLLAPSIBLE STEERING

45372BPLUG, STEERING GEAR HOUSING OIL

main45372-10010iKP3#196904-197112

main45372-12010iKP3#¥170197201-198808

main90930-03051iKP30,36..(SED,V)..LHD¥600197512-197809

COLLAPSIBLE STEERING

9046108450

main90461-08450¥160

9161160818

main91611-60818¥140

9161160860

main91611-60860¥100

9331924010

main93319-24010¥130

9454100400

main94541-00400

20 parts on this diagram · 7 diagrams in section
