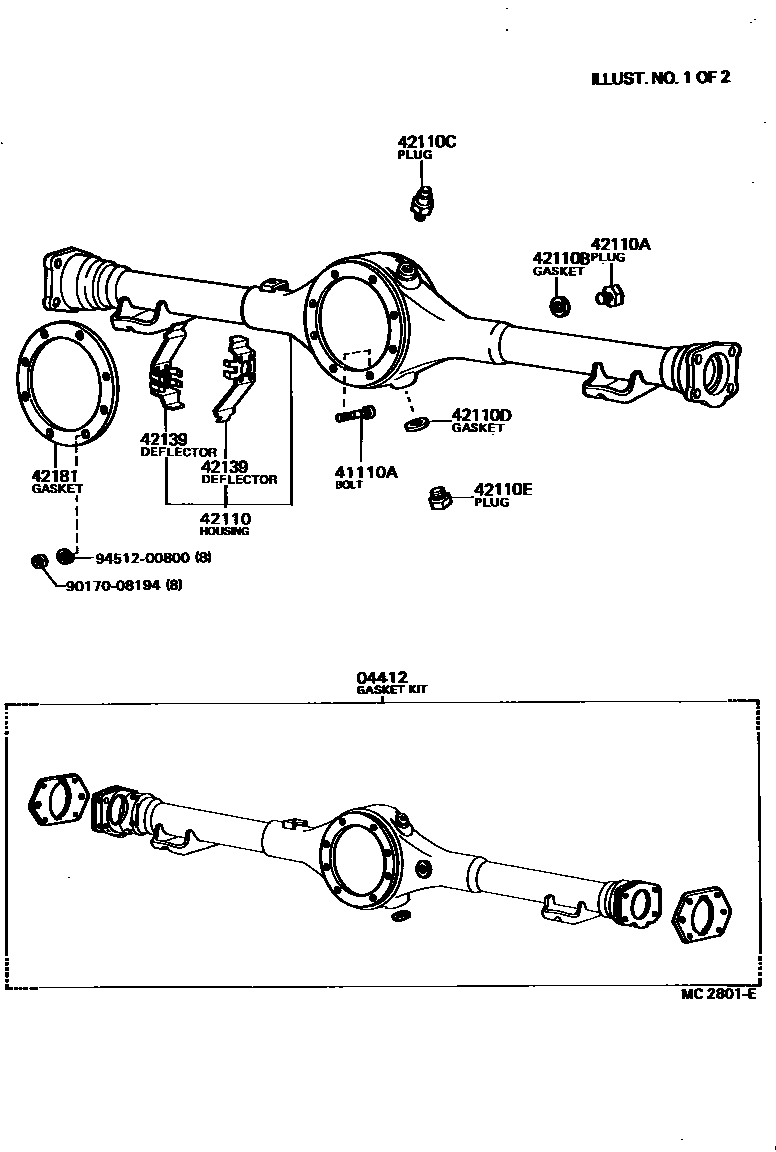

REAR AXLE HOUSING & DIFFERENTIAL
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
41110CARRIER ASSY, DIFFERENTIAL, REAR
R=41:10,*AXC=U292
R=43:10,*AXC=U282
R=43:10,*AXC=U282
R=40:9,*AXC=U112
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
T=2.0
T=1.7
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
T=0.3
9017008194
main90170-08194
9451200800
main94512-00800
13 parts on this diagram · 3 diagrams in section
