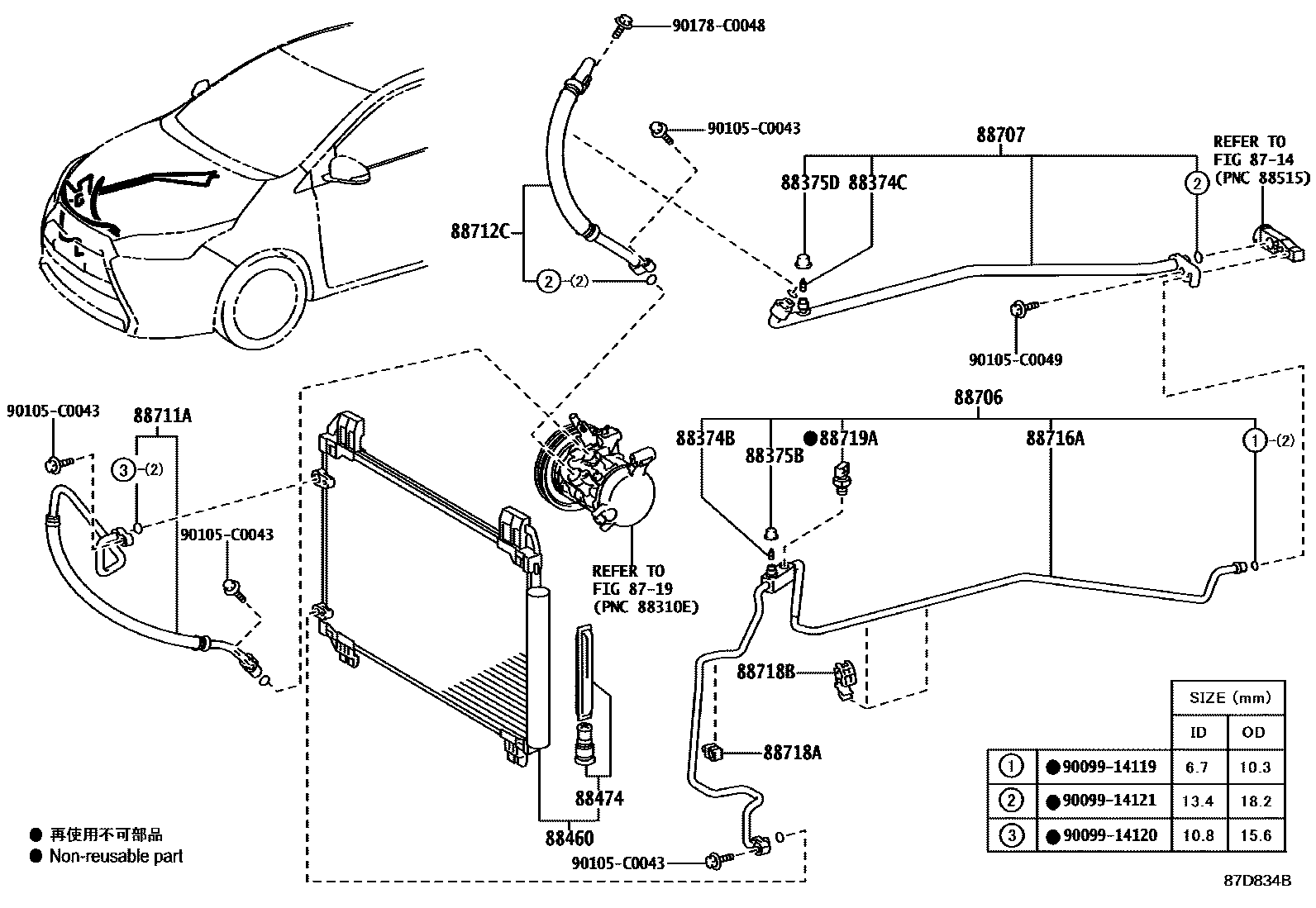

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0004 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNSP15#201312-202111

88374CVALVE, SERVICE, NO.2

main88374-30010iNSP15#201312-202111

88375BCAP, SERVICE VALVE, NO.1

main88375-0D010iNSP15#201312-202111

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iNSP15#201312-202111

88460CONDENSER ASSY, COOLER

main88460-0D360iNSP15#201312-201608

main88460-0D480iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

88474DRYER, COOLER

main88474-12010iNSP15#¥0201312-202111

88706PIPE SUB-ASSY, LIQUID

main88706-0D570iNSP15#201312-201911

main88706-0DC40iNSP151..N;NSP151..5F..R;NSP151..4D..G201812-202111

88707PIPE SUB-ASSY, SUCTION

main88707-0D311iNSP15#201312-201608

main88707-0D510iNSP151201608-201911

main88707-0D590iNSP151..N;NSP151..5F..R;NSP151..4D..G201812-202111

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-0D460iNSP15#201312-201608

main88711-0D710iNSP151..N;NSP151..5F..R;NSP151..4D..G201608-202111

88712CHOSE, SUCTION

main88712-0D560iNSP15#201312-201608

main88712-0D870iNSP15#201608-201811

sub88712-0D871

main88712-0D871iNSP151..N;NSP151..5F..R;NSP151..4D..G201812-202111

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0D490iNSP15#201312-201911

main88716-0DB90iNSP151..N;NSP151..5F..R;NSP151..4D..G201812-202111

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-0D370iNSP15#201312-202111

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-0D631iNSP15#201312-202111

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNSP15#¥0201312-202111

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

90105C0043

main90105-C0043

90105C0049

main90105-C0049

90178C0048

main90178-C0048

22 parts on this diagram · 3 diagrams in section
